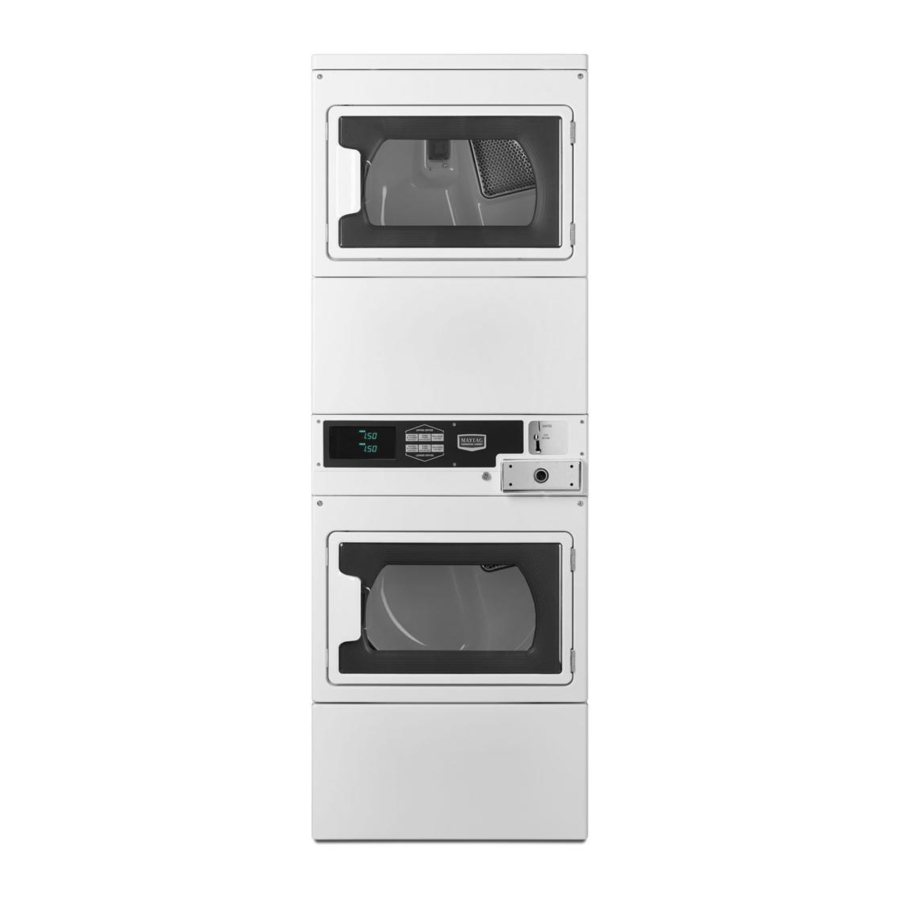

Maytag MLG27PN Installation Instructions Manual
Commercial dryer gas
Hide thumbs
Also See for MLG27PN:
- Installation instructions manual (108 pages) ,
- Installation instructions manual (104 pages)
Advertisement
Quick Links
MLG27PN
MLG27PD
MLG27PR
INSTALLATION
INSTRUCTIONS
ORIGINal INSTRUCTIONS
C
OmmERCIal
INSTRUCTION
D'INSTALATIONS
INSTRUCTIONS D'ORIGINE
S
éChEUSE COmmERCIalE aU Gaz
INSTRUCCIONES
DE INSTALACIÓN
INSTRUCCIONES ORIGINalES
S
ECaDORa COmERCIal a GaS
ISTRUZIONI PER
L'INSTALLAZIONE
ISTRUzIONI ORIGINalI
a
SCIUGaTRICE COmmERCIalE
www.maytagcommerciallaundry.com
D
RyER
G
aS
a
W11333417B
GaS
Advertisement
Related Manuals for Maytag MLG27PN
Summary of Contents for Maytag MLG27PN
- Page 1 INSTALLATION INSTRUCTIONS ORIGINal INSTRUCTIONS OmmERCIal RyER INSTRUCTION D’INSTALATIONS INSTRUCTIONS D’ORIGINE éChEUSE COmmERCIalE aU Gaz INSTRUCCIONES DE INSTALACIÓN INSTRUCCIONES ORIGINalES ECaDORa COmERCIal a GaS ISTRUZIONI PER L’INSTALLAZIONE ISTRUzIONI ORIGINalI SCIUGaTRICE COmmERCIalE MLG27PN MLG27PD MLG27PR www.maytagcommerciallaundry.com W11333417B...
- Page 2 TABLE OF CONTENTS ÍNDICE Page Página Dryer Safety ................3 Seguridad de la secadora ............ 54 Dryer Disposal ................ 6 Desecho de la secadora ............57 Tools & Parts ................7 Herramientas y piezas ............58 Specifications ................7 Especificaciones ..............58 Dimensions/Clearances ............
- Page 3 DRYER SAFETY n It is recommended that the owner post, in a prominent location, instructions for the customer’s use in the event the customer smells gas. This information should be obtained from your gas supplier. n Post the following warning in a prominent location. FOR YOUR SAFETY 1.
- Page 4 DRYER SAFETY WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 5 DRYER SAFETY n Fabric softeners, or similar products, n Do not dry unwashed items in the dryer. should be used as specified by the fabric n Do not use this dryer if industrial chemicals softener instructions. have been used for cleaning. The n Items such as foam rubber (latex foam), possible presence of residual quantities of aggressive or decomposed chemicals in...
- Page 6 For more detailed information about treatment, recovery and recycling of this product, please contact your local city of ce, your household waste disposal service or the shop where you purchased the product. MODEL NOMENCLATURE: MLG – Maytag Dryer – Gas PN – Electronic Control – Non-Pay ## (e.g. 27) – Model Type Number PD –...
- Page 7 TOOLS & PARTS Tools Needed: 203 mm (8") 203 mm (8") or 254 mm (10") Flat-blade screwdriver Phillips screwdriver or 254 mm (10") Adjustable wrench Pipe wrench (that opens to 25 mm [1"]) TORX T20 Security 25 mm (1") Hex-head 8 mm (5/16") Socket wrench Pliers †...
- Page 8 DIMENSIONS/CLEARANCES Dimensions Front View Side View Back View Minimum Clearances Front View, Recessed Opening Side View, Recessed In Closet...
- Page 9 INSTALLATION REQUIREMENTS Location Recessed Area and Closet Installation Instructions This dryer may be installed in a recessed area or closet. The dryer must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the dryer in such a way that a full opening of the dryer door is restricted.
- Page 10 GAS DRYER INSTALLATION REQUIREMENTS Gas Dryer Electrical Requirements IMPORTANT: Observe all governing codes and ordinances. This is 3-wire appliance which must be earthed. NOTE: In accordance with the European EMC Directive (2014/30/EU), the maximum electricity supply system impedance to which the gas dryer should be connected is declared to be 0.054 Ohm + j0.034 Ohm.
- Page 11 INSTALLATION REQUIREMENTS Gas Supply Requirements Supply line requirements: A. Provide a rigid gas supply line to the dryer location. It should be minimum 12.5 mm (1/2") ID. When acceptable to the gas supplier and local codes, 10 mm (3/8") ID rigid supply line may be used for lengths under 6.1 m (20').
- Page 12 VENTING REQUIREMENTS Flexible metal vent: (Acceptable only if accessible to clean) Must be fully extended and supported in final dryer location. ■ Remove excess to avoid sagging and kinking that may ■ result in reduced airflow and poor performance. Do not install in enclosed walls, ceilings, or floors. ■...
- Page 13 VENTING REQUIREMENTS Vent Hoods 102 mm (4") Diameter Exhaust Hoods Exhaust hood must be at least 305 mm (12") from the ground or any object that may be in the path of the exhaust (such as flowers, rocks, bushes, or snow). Box hood Louvered hood Angled hood...
- Page 14 VENTING REQUIREMENTS If an Exhaust Hood Cannot be Used Multiple Dryer Venting The outside end of main vent should have a sweep elbow A main vent can be used for venting a group of dryers. The directed downward. main vent should be sized to remove 5663 l/min. (200 CFM) of air per dryer.
- Page 15 INSTALLING LEVELING LEGS INSTALLING LEVELING LEGS 2. Screw in leveling legs Examine leveling legs and find diamond marking. Screw legs into leg holes by Diamond hand. Use an adjustable wrench or marking 25 mm (1") hex-head socket wrench to finish turning legs until diamond marking is no longer visible.
- Page 16 LEVELING Leveling your dryer properly reduces excess noise and vibration. 3. If dryer is not level, turn the leveling legs counterclockwise to lower the dryer or clockwise to raise the dryer. Recheck levelness of dryer and that all four legs are firmly in contact with the floor.
- Page 17 COMPLETE INSTALLATION 6. Check dryer operation. Using a full heat cycle, let the dryer 1. Check the electrical requirements. Be sure that you have run for at least 5 minutes. Dryer will stop when time is the correct electrical supply and the recommended earthing used up.
- Page 18 REVERSING DOOR SWING (OPTIONAL) You can change your door swing from a right-side opening 7. Be certain to keep cardboard spacer centered between to left-side opening, if desired. doors. Reattach outer door panel to inner door panel so handle is on the side where hinges were just removed. Remove the Door Assembly 1.
- Page 19 IF YOU NEED ASSISTANCE If you need help, contact the dealer from whom you purchased the appliance, or a Maytag designated service company. When calling, please know the purchase date and the complete model and serial number of your appliance. This information...
- Page 20 TECHNICAL SPECIFICATIONS – GAS DRYER 220-240 V~50 Hz 1ph 3 A max. IPX4 Clothes capacity: 9.0 kg max. Sound pressure level, LpA: 58 dBA (uncertainty, Kpa: +/-10 dBA) Total mass: 135 kg max. Factory set for NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW CH, CZ, CY, ES, GB, GR, BG, CY, CZ, DK, EE, FI, GR, European Country:...
- Page 21 TECHNICAL SPECIFICATIONS – GAS DRYER Factory set for NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW Country: DE, LU, PL, RO European Gas Category: Gas Flow Rate: 0.562703 m Supply Pressure (G20): 20 mbar Factory Adjusted Pressure (G20): 7.4 mbar Factory set for Australia/New Zealand NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW Country:...
- Page 22 ELECTRONIC CONTROL SETUP INSTRUCTIONS ELECTRONIC CONTROL SETUP INSTRUCTIONS General User Information IMPORTANT “OUT OF ORDER” SHOWING IN DISPLAY – This condition Electrostatic Discharge (ESD) indicates the dryer is inoperative. Diagnostic or failure code Sensitive Electronics will follow the scrolling message. ESD problems are present everywhere.
- Page 23 ELECTRONIC CONTROL SETUP INSTRUCTIONS ELECTRONIC CONTROL SETUP INSTRUCTIONS Start Operating Set-up Fixed Cycle With Top Off Pricing A dryer set to offer “Top Off” capability will allow time to be PD Models: Insert service door key, turn, and lift to remove ■...
- Page 24 ELECTRONIC CONTROL SETUP INSTRUCTIONS ELECTRONIC CONTROL SETUP INSTRUCTIONS The set-up code is indicated by the one or two left-hand Code Explanation characters. The set-up code value is indicated by the two or three right-hand characters. Mode 1.00 turns on how much money machine has collected if you would like to keep track of that.
- Page 25 ELECTRONIC CONTROL SETUP INSTRUCTIONS ELECTRONIC CONTROL SETUP INSTRUCTIONS OPTIONS 3.XX – 9.XX TO USE IF SPECIAL PRICING OPTIONS 3.XX – 9.XX TO USE IF SPECIAL PRICING IS SELECTED. IF NOT IN SPECIAL PRICING THESE IS SELECTED. IF NOT IN SPECIAL PRICING THESE OPTIONS ARE IGNORED AND DEFAULTS BACK TO OPTIONS ARE IGNORED AND DEFAULTS BACK TO MODE 6 &...
- Page 26 ELECTRONIC CONTROL SETUP INSTRUCTIONS ELECTRONIC CONTROL SETUP INSTRUCTIONS Code Explanation Code Explanation C. 20 VALUE OF COIN 2 L. 00 PRICE SUPPRESSION OPTION This option is either NOT SELECTED “OFF” OR Mode C is the same as b, however this is the set up for Coin 2 SELECTED “ON.”...
- Page 27 DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Maytag makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask your retailer about buying an extended warranty.
