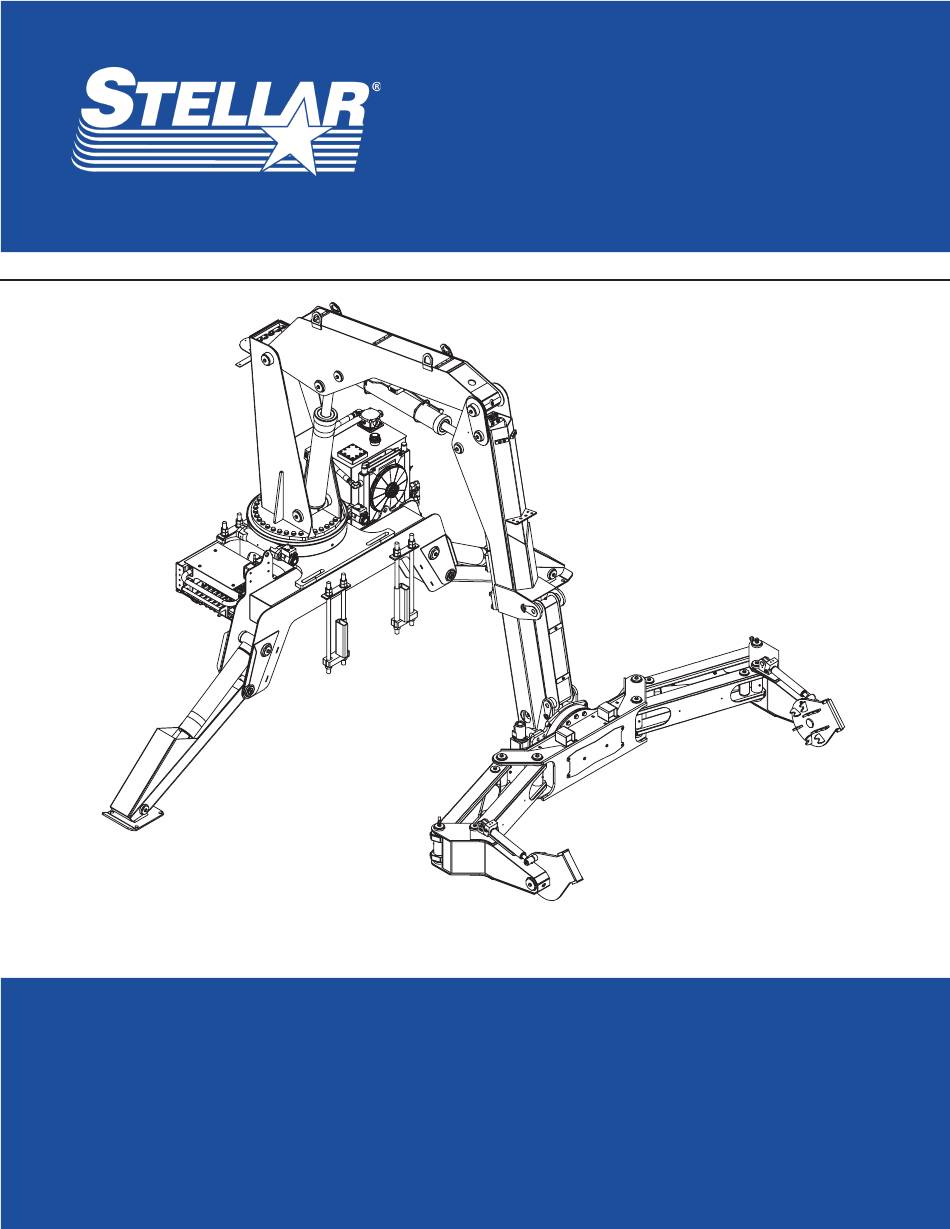

TireMan Package 6116 Owner’s Manual Installation • Assembly Drawings • Parts Notice: A copy of this manual must remain with the equipment at all times. For a printable download copy, please visit: www.stellarindustries.com Stellar Industries, Inc. 190 State Street PO Box 169 Garner, IA 50438 800-321-3741 Fax: 641-923-2811...
Page 2
Serial Tag Location / P65 Warning WARNING Operating, maintaining, and servicing a Stellar product may expose you to chemicals including, but not limited to, engine exhaust, carbon monoxide, phthalates, and lead. These chemicals are known to the State of California to cause cancer and birth defects (or other reproductive harm).
Introduction A copy of this manual is provided with every tire manipulator (TM) and can be found in the hard plastic manual case that is installed on the chassis. A copy of this manual shall remain with the TM at all times. Throughout the manual, three signal words will be used to bring attention to important items: NOTICE A NOTICE signal word indicates a practice not related to physical injury.
Page 6
This page left intentionally blank. Page vi | Stellar TMP6116 Owner’s Manual PN 98581 ®...
Model TM6116 Specifications Tire Manipulator Rating: 135,000 ft-lbs (18.6 ton meters) Tire Manipulator Capacity: 6,000 lbs @ 19' (2,721 kg @ 5.79m) Standard Length: 13’3” (4.04 m) from CL of TM main rotation Main Extension: Hydraulic 41.5” (105.4 cm) Fixed Pads - 19” to 116” (48.3 cm to 294.6 cm) Clamping Span: Rotating Pads - 19”...
TM6116 Rotation Stop Locations Front of Truck 23º 44º 23º TMP6116 Front & Rear Mount LH Drive Working Rotation Range Working Rotation Range TMP6116 Rear Mount RH Drive 23º 44º 23º Rear of Truck Page 5 | Stellar TMP6116 Owner’s Manual PN 98581 ®...
Page 12
This page left intentionally blank. Page 6 | Stellar TMP6116 Owner’s Manual PN 98581 ®...
General Installation This chapter is designed to serve as a general guide for the installation of a Stellar TM6116 on a Stellar Service Body. Each installation is considered unique so certain portions of this chapter may or may not apply to your direct application. If a question should arise during the installation process, please contact Stellar Customer Service at (800) 321 3741.
Torque Data Chart When using the torque data in the GRADE 5 GRADE 8 GRADE 9 chart, the following rules should be observed: • Bolt manufacturer’s particular specifications should be consulted Size Bolt DIA Plain Plated Plain Plated Plated when provided. (DIA-TPI) (Inches) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) 5/16-18...
Installation Overview 1. Relocate any obstructions on the frame that will be in the way of mounting the tire manipulator (TM). 2. Measure the inside of the frame rails and cut the frame support to this length. Ensure that the frame supports have a tight fit between the frame rails.
Hydraulic Installation Never modify or alter any of the equipment, whether mechanical, electrical, or hydraulic, without Stellar Industries’ approval. WARNING Do not touch or grab any hoses that could be under pressure. Release system pressure before attempting to make adjustments or repairs. Do not attempt service or repair when PTO is engaged.
Hydraulic Backup Valve (Opt.) PN - 103421 (Continued) NOTES: *THIS WIRING METHOD IS FOR ALL AUTOMATIC AND ELECTRIC OVER AIR MANUAL TRANSMISSIONS. *RELAY IS TO BE INSTALLED BEHIND THE DASH NEAR THE PTO SWITCH. *IF INSTALLING ON A TRUCK WITH AN AIR OPERATED PTO, ADD AIR CONTROL VALVE PN: 57738, AND SEE PAGE 26.
Hydraulic Backup Valve (Opt.) PN - 103421 (Continued) NOTES: *THIS WIRING METHOD IS FOR AIR OPERATED TRANSMISSIONS *AIR CONTROL VALVE IS TO BE LOCATED BEHIND THE DASH NEAR THE PTO. *IF THE TRANSMISSION IS A TWO-WAY AIR OPERATION, PORT #4 SHOULD BE USED TO TURN THE PTO OFF.
Main Decal Placement - PN 98661 WARNING Crush Hazard Keep clear of stabilizer legs during operation. Failure to keep clear of moving stabilizer legs can result in death or serious injury. C4795 - Rev B INNER CYL INNER CYL INNER/MAST OUTER CYL BASE BASE...
TM6116 Standard Assembly - PN 99145 Parts List PN 99145 ITEM PART DESCRIPTION 94259 BODY TM6116 V2 94333 LINK TM6116 V2 94336 ARM TM6116 V2 74351 CYLINDER 3.50X13.25 35111 VALVE COMB DIV FD50-44-6T-N-44 78431 LIGHT FLOOD LED 3.2X2.9 850LM 16W 10-30V 5145 PIN CAP 0.56X3.00X0.19 YZ C1592...
TM6116 Standard Assembly - PN 99145 Parts List PARTS NOT SHOWN - 99145 PART DESCRIPTION 21409 WIRE HARNESS FLOOD LIGHT 73107 DECAL KIT 99146 HYD KIT TM6116 V2 D0240 FTG 4-2 CPRSN-MP 90 D1810 TBE AIR SAEJ844 TYPE A .25(RM) 0.67 FT D1345 FTG 4-2 CPRSN-MP STRAIGHT...
Page 69
THIS PAGE INTENTIONALLY LEFT BLANK. Stellar TMP6116 Owner’s Manual PN 98581 | Page 63 ®...
TM6116 w/Rotation Pads Assembly - PN 99143 Parts List PN 99143 ITEM PART DESCRIPTION 94259 BODY TM6116 V2 94333 LINK TM6116 V2 94264 ARM TM6116 SS PAD ROT V2 74351 CYLINDER 3.50X13.25 35111 VALVE COMB DIV FD50-44-6T-N-44 78431 LIGHT FLOOD LED 3.2X2.9 850LM 16W 10-30V C5586 CLAMP 1.38 13315...
TM6116 w/Rotation Pads Assembly - PN 99143 Parts List PN 99143 ITEM PART DESCRIPTION 8377 PIN CAP 0.56X3.50X0.19 YZ 73400CR PIN TEAR DROP 2.00X11.31 ZC D1307 CAP SCR 0.50-13X1.25 SHGR8 W/ RED PATCH 30495 CAP SCR 0.88-9X2.50 SH 17148 CAP SCR 0.75-10X3.00 HHGR9 CAP SCR 0.31-18X1.25 HHGR5 29725PC GUARD TTB TM6120C PC BLACK...
Page 73
THIS PAGE INTENTIONALLY LEFT BLANK. Stellar TMP6116 Owner’s Manual PN 98581 | Page 67 ®...
Reservoir Assembly - PN 128835 Parts List PN 128835 ITEM PART DESCRIPTION 85789 RSRVR 40GAL ORING V2 13500 81018 CAP FILL NO RELIEF ZINGA THREADED 15463 THERMO SIGHT GAUGE ZINGA SG-O5-A-T-N 85928 FILTER TANK TOP 20 FORB C2126 PLUG 0.75 NPT SQ HD MAGNETIC 64276 FTG 20-20 MFS-MAORB 90 C6327...
Transmitter Docking Station (Opt.) - PN 97334 Parts List PN 97334 ITEM PART DESCRIPTION 97470 BRKT RADIO STOW SCANRECO 89149/89150 26288 LIGHT INDICATOR RED FORCE PTO 26031 BACKUP ALARM PIEZO JAMECO 123537 C6072 RELAY BOSCH 20-30 AMP 66413 SWITCH SPRING ROD OMRON Z-15GNJ55 66411 ANGLE AL SWITCH MOUNT DOCK STATION HET NOVA D1711...
Wiring Diagram Docking Station - PN 65989 NEGATIVE BRAKE SIGNAL INDICATOR LIGHT NOTE: FOR AIR BRAKE SYSTEMS, THE RELAY WIRING IS NOT REQUIRED. INSTEAD, CONNECT A 16GA WIRE FROM THE “N/O” SWITCH TERMINAL ON THE SAFETY GROUND BLACK HOBBS SWITCH TO THE “COM” TERMINAL ON THE DOCKING STATION SWITCH.
