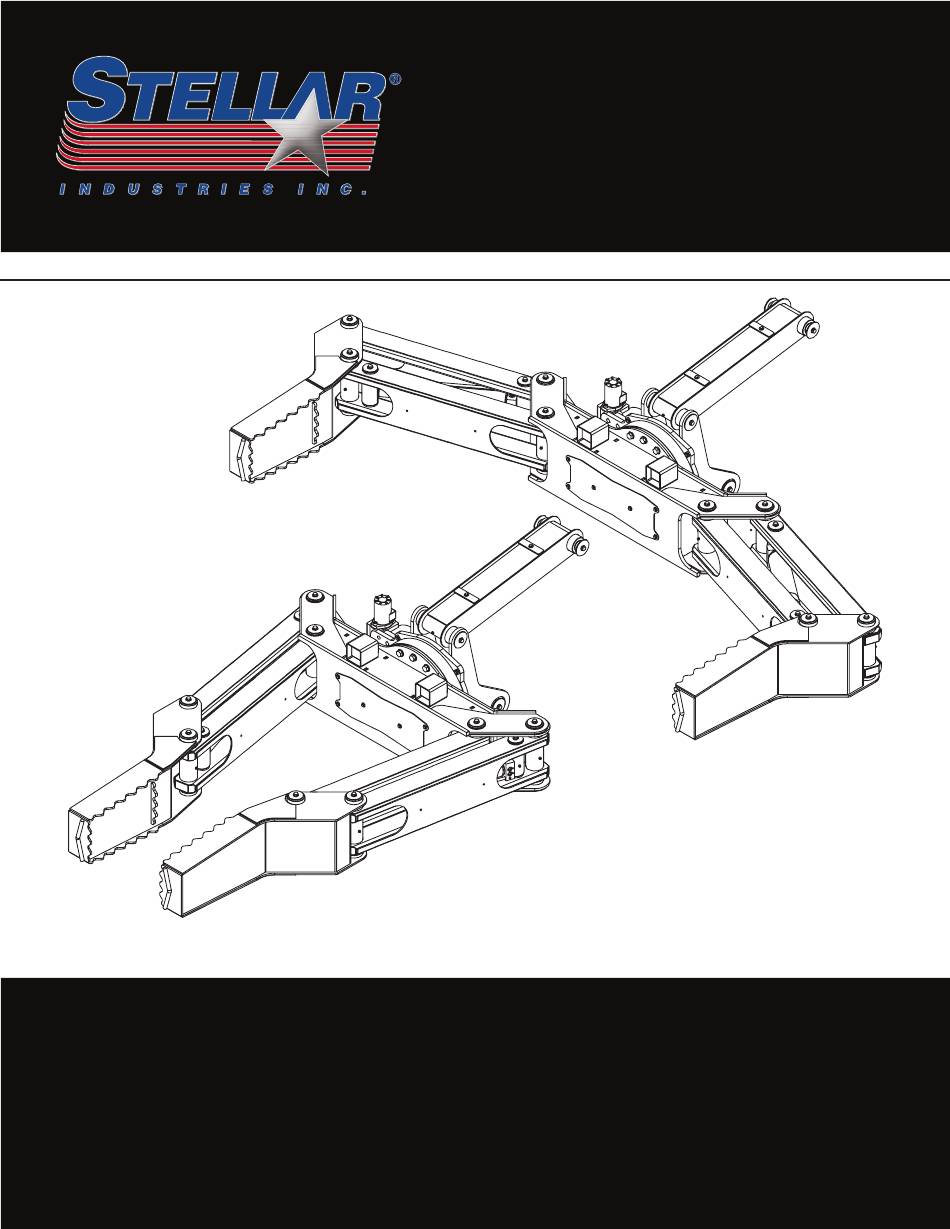

TireMan 6116
Owner's Manual
Installation • Assembly Drawings • Parts
Notice: A copy of this manual must remain with the equipment at all times.
For a printable download copy, please visit: www.stellarindustries.com
Stellar Industries, Inc.
190 State Street
PO Box 169
Garner, IA 50438
800-321-3741
Fax: 641-923-2811
Subject to Change without Notification.
Rev 1
www.stellarindustries.com
© 2021 Stellar Industries, Inc.
PN 99433
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for stellar labs TireMan 6116
Summary of Contents for stellar labs TireMan 6116
- Page 1 TireMan 6116 Owner’s Manual Installation • Assembly Drawings • Parts Notice: A copy of this manual must remain with the equipment at all times. For a printable download copy, please visit: www.stellarindustries.com Stellar Industries, Inc. 190 State Street PO Box 169...
- Page 2 Model TM6116 Manual Revisions Date of Revision Section Revised Description of Revision WARNING Operating, maintaining, and servicing a Stellar product may expose you to chemicals including, but not limited to, engine exhaust, carbon monoxide, phthalates, and lead. These chemicals are known to the State of California to cause cancer and birth defects (or other reproductive harm).
-
Page 3: Table Of Contents
Table of Contents Introduction ..........................iv Model TM6116 Specifications ....................1 TM6116 Dimensional Layout ....................2 General Installation ........................3 Installer Notice ........................3 Torque Data Chart ......................... 4 Hydraulic Installation ........................ 5 Hydraulic Pressure Settings ...................... 6 Face Seal/O-Ring Size Chart ....................6 Hydraulic Kit - PN 99146 ...................... -
Page 4: Introduction
Introduction A copy of this manual is provided with every tire manipulator and can be found in the hard plastic manual case that is installed on the chassis. A copy of this manual shall remain with the tire manipulator at all times. Throughout the manual, three signal words will be used to bring attention to important items: NOTICE... -
Page 5: Model Tm6116 Specifications
Model TM6116 Specifications CAPACITY CHART 19' (5.79m) 6000 lb (2721kg) ROTATION STELLAR TM6116 Capacity: 6,000 lbs @ 19' (2,721 kg @ 5.79m) 72077 - Rev A Clamping Span: Fixed Pads - 19” to 116” (48.3 cm to 294.6 cm) Rotating Pads - 17" to 114" (43.2 cm to 289.6 cm) 3.5”... -
Page 6: Tm6116 Dimensional Layout
TM6116 Dimensional Layout 19" Fixed Pads 17" Rotating Pads 116" Fixed Pads 114" Rotating Pads Page 2 | Stellar TM6116 TireMan Owner’s Manual ®... -
Page 7: General Installation
General Installation This chapter is designed to serve as a general guide for the installation of a Stellar TM6116 on a Stellar Service Crane. Each installation is considered unique so certain portions of this chapter may or may not apply to your direct application. If a question should arise during the installation process, please contact Stellar Customer Service at (800) 321 3741. -
Page 8: Torque Data Chart
Torque Data Chart When using the torque data in the chart, the following rules should be GRADE 5 GRADE 8 GRADE 9 observed: • Bolt manufacturer’s particular specifications should be consulted Size Bolt DIA Plain Plated Plain Plated Plated when provided. (DIA-TPI) (Inches) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) 5/16-18... -
Page 9: Hydraulic Installation
Hydraulic Installation Never modify or alter any of the equipment, whether mechanical, electrical, or hydraulic, without Stellar Industries’ approval. WARNING Do not touch or grab any hoses that could be under pressure. Release system pressure before attempting to make adjustments or repairs. Do not attempt service or repair when PTO is engaged. -
Page 10: Hydraulic Pressure Settings
Hydraulic Pressure Settings Main Relief 4600 psi Pressure (psi) Function Flow (gpm) Extend Retract Inner 10.6 4400 2200 Outer 10.6 4400 2200 Extension 10.6 4400 4400 Rotation 10.6 2200 2200 TM Rot 2200 2200 TM Pad Rot 3000 3000 TM Clamp 3000 3000 Face Seal/O-Ring Size Chart... -
Page 11: Hydraulic Kit - Pn 99146
Hydraulic Kit - PN 99146 PN 99146 Stellar TM6116 TireMan Owner’s Manual | Page 7 ®... - Page 12 Hydraulic Kit/w Rotating Pads - PN 99136 PN 99136 Page 8 | Stellar TM6116 TireMan Owner’s Manual ®...
-
Page 13: Decal Placement - Pn 73107
Decal Placement - PN 73107 CAPACITY CHART 17' 6" (5.33m) 6000 lb (2721kg) ROTATION STELLAR TM6116 72077 Inspect Rotation Bearing Monthly 1.) Lubricate bearing and pinion teeth with Molub-Alloy 936SF. 2.) Lubricate inner race and pin with EP2 (extreme pressure grease). 3.) Check gearbox oil level monthly (Traxon 80W-90). -
Page 14: Tm6116 Standard Assembly - Pn 99145
Page 10 | Stellar TM6116 TireMan Owner’s Manual ®... -
Page 15: Tm6116 W/Rotation Pads Assembly - Pn 99143
Stellar TM6116 TireMan Owner’s Manual | Page 11 ®... -
Page 16: Tm6116 W/Rotation Pads Bill - Pn 99143
Page 12 | Stellar TM6116 TireMan Owner’s Manual ®... - Page 17 This page intentionally left blank. Stellar TM6116 TireMan Owner’s Manual | Page 13 ®...
- Page 20 Subject to Change without Notification. © 2021 Stellar Industries, Inc.
