Summary of Contents for Whitewood Furniture BROOKLYN BD-8015

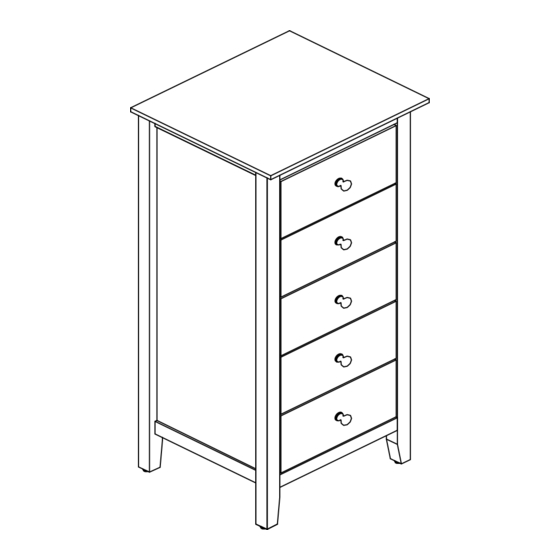

- Page 1 ASSEMBLY INSTRUCTIONS WARNING! Serious or fatal injuries can occur from furniture tip over. Use tip over restraint (steel band included) to secure this product to the wall. Description : BROOKLYN 5 DRAWER LINGERIE Item No. : BD-8015 ITEM NO.: BD-8015 Printed in Vietnam REVISED MAR 27, 2019 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Side panel (L-R) Center frame Bottom frame Back panel Drawer front Drawer side Drawer back (L-R)
- Page 4 HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Allen key Bolt (M4 x 30mm x 110mm) (M6 x 30mm) Spring Washer Flat Washer (6.5 x 11mm)
- Page 5 STEP 1 ttach top (A), center frame (D) and bottom frame (C) to side panel (B) with bolts (2), and washers (3) and (4) as shown below. Tighten with Allen key (1). Slide back panel (E) into the grooves as shown below. STEP 2 ttach bottom frame (C), center frame (D) and top (A) to the other side panel (B) with bolts (2), and washers (3) and (4) as shown below.
- Page 6 STEP 3 Attach drawer sides (G) to drawer front (F) with screws (5) as shown below. Tighten with a screwdriver. Insert drawer bottom (I) into the grooves at bottom of drawer sides (G) and drawer front (F) as shown below. Attach drawer back (H) to drawer sides (G) with screws (5) as shown below.
- Page 7 STEP 5 Attach steel bands (9) to the unit with screws (8) as shown below. (to secure the product to the wall and reduce the risk of tipping over). Adjust the levelers to the appropriate height to level the lingerie. Important! Properly attach steel bands (9) to the wall in an area of drywall or plaster with a wood stud: Mark the attachment point(s) with a pencil at the appropriate height positioned over the wood stud(s)
