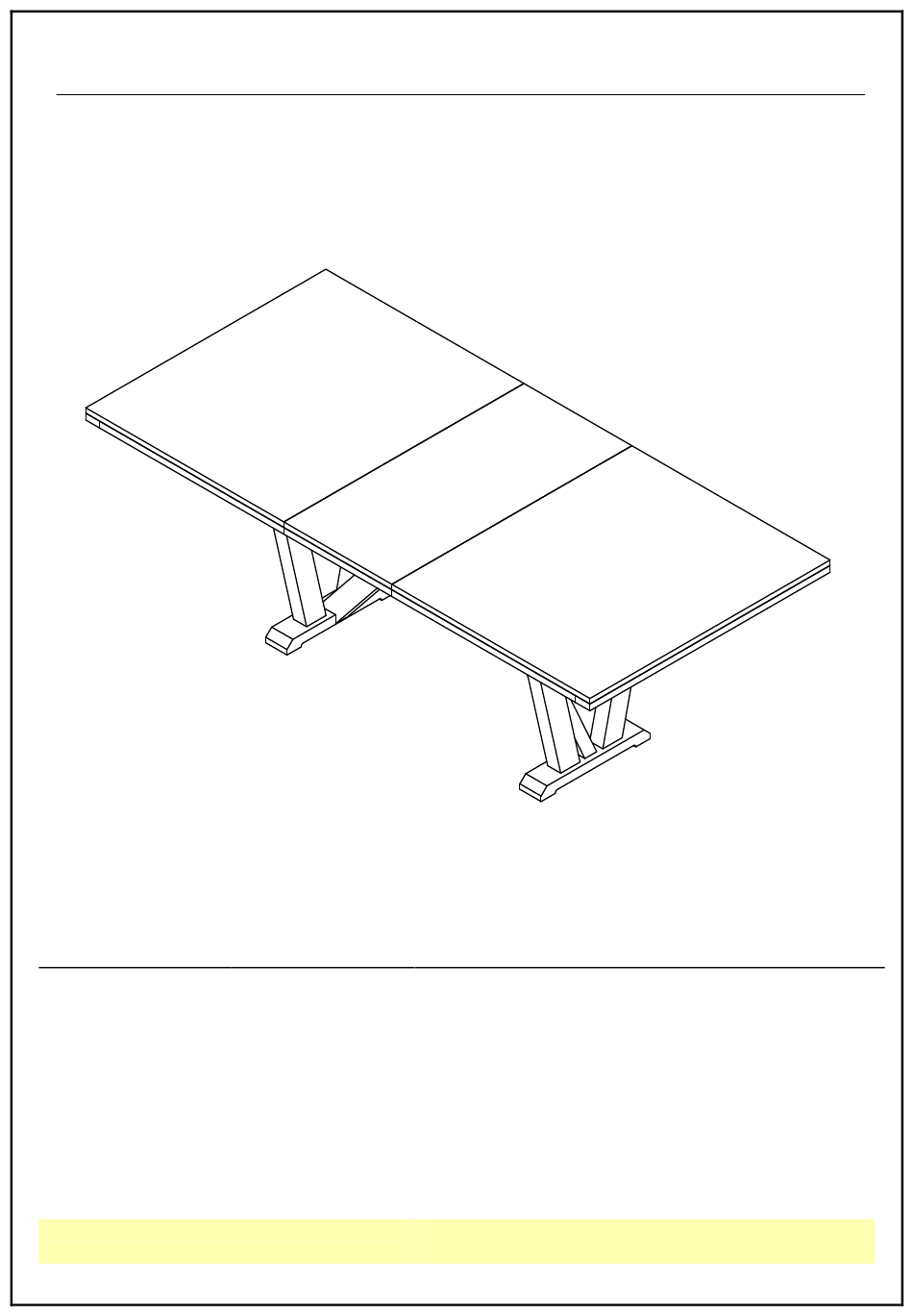

- Page 1 ASSEMBLY INSTRUCTIONS Description : 40X66X84 ATHENA TABLE Item No. : T-6840X ITEM NO.: T-6840X Printed in Vietnam ISSUED AUG 07, 2018 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Table Top Leg Frame Support Extension Stretcher Leaf HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch...
- Page 4 STEP 1 Use the Allen key (7) to loosen bolts and washers, and then remove the mounting plate from bottom of the table top (A) as shown below. REMOVE STEP 2 Attach the mounting plate to support stretchers (C) with bolts (2), and washers (5) and (6) as shown below.
- Page 5 STEP 3 Attach support stretchers (C) to leg frames (B) with bolts (2), and washers (5) and (6) as shown below. Tighten with Allen key (7). Attach the mounting plate to bottom of the top (A) with bolts and washers (from Step 1) as shown below.
- Page 6 STEP 4 Unlock the table top on both sides from underneath the top. Pull the 2 parts of the table top apart. Place the leaf (D) in the center of the open table top. STEP 5 Push the table top closed. Lock the mechanism underneath two sides of the table top as shown below. RELOCK SPRING CLIP ITEM NO.: T-6840X Printed in Vietnam...
- Page 7 STEP 6 Unlock the table top on both sides from underneath the top. Pull the 2 parts of the table top apart. Remove the leaf (D) and put it on the mounting plate underneath the table top as shown below. UNLOCK SPRING CLIP STEP 7 Push the table top closed.
