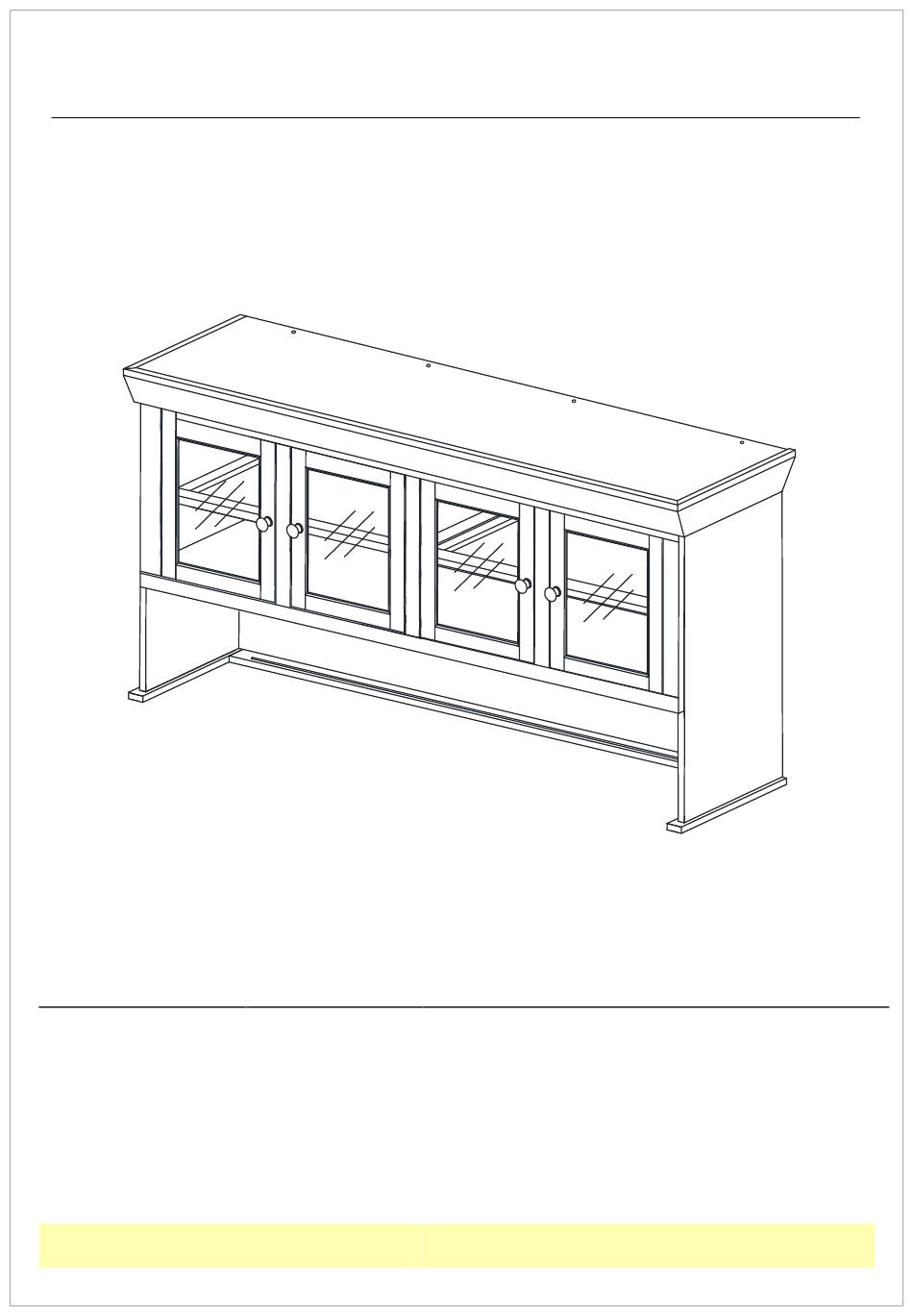

- Page 1 ASSEMBLY INSTRUCTIONS Description : HUTCH W/4 DOORS Item No. : H-4 ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015 - 1 -...
-
Page 2: Before Assembly
Protect the surface of the product with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015 - 2 -... -
Page 3: Part List
Base frame Back rail Side panel Adjustable (L&R) frame Bottom Top back shelf panel Bottom Vertical rail back panel Glass (Shelf) Glass (Door) Light (light- connector) ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015 - 3 -... -
Page 4: Hardware List
Flat Washer Screw (ɸ6.5x13mm) (M5 x 20mm) Lock Washer Metal plate (ɸ6.5x11mm) Allen key Steel band (M4X80mm) Long bolt Knob ( M6x45mm) Long screw (M4 x 40mm) ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015 - 4 -... - Page 5 Attach glass sections (L) to back of front frame with doors (B), and lock it. Attach knobs (13) to doors with pan head screws (2) as shown below. Tighten with a screwdriver. ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015...
- Page 6 Attach side panels (E) to back rail (D) with pan head screws (7) as shown below. Tighten with a screwdriver. Attach side panels (E) to bottom shelf (G) with bolts (1), and washers (8) and (9) as shown below. Tighten with Allen key (12). ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015 - 6 -...
- Page 7 Attach front frame with doors (B) to unit with pan head screws (7) as shown below. Tighten with a screwdriver. STEP 6 Attach L-brackets (5) with screws (3) as shown below. Tighten with a screwdriver. ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015 - 7 -...
- Page 8 Slide bottom back panel (I) into grooves as shown below. STEP 8 Attach base frame (C) to unit with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015 - 8 -...
- Page 9 Place glass shelves (K) on the frame (F) as shown below. STEP 10 Attach crown (A) to the unit with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: H-4 Printed in Vietnam REVISED DEC 29, 2015 - 9 -...
- Page 10 Attach steel band (11) to unit with screws (3) and attach steel band (11) to the wall with screws (4) as shown below (to secure the product and prevent tipping). Tighten with a screwdriver. ITEM NO.: H-4 Printed in Vietnam...
