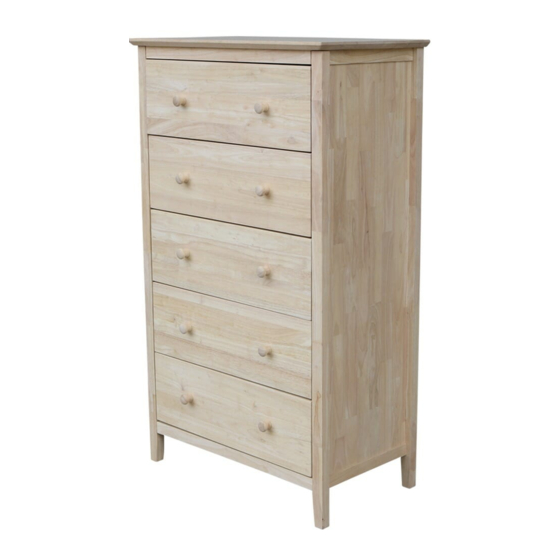

- Page 1 ASSEMBLY INSTRUCTIONS Description : 5 DRAWER CHEST RTA Item No. : BD-8005 ITEM NO: BD-8005 Printed in Vietnam REVISED APR 07, 2015 - 1 -...
-
Page 2: Before Assembly
Protect the surface of the product with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO: BD-8005 Printed in Vietnam REVISED APR 07, 2015 - 2 -... -
Page 3: Part List
Description Sketch Description Sketch Side panel 2 (L- Bottom panel Center panel Back rail Back panel Drawer side Drawer front (L-R) Drawer bottom Drawer back Support bar ITEM NO: BD-8005 Printed in Vietnam REVISED APR 07, 2015 - 3 -... -
Page 4: Hardware List
Flat Washer (6.5x11mm) (6.5x13mm) Pan head Screw screw (M4 X 35mm) (M4 x 30mm) Knob Screw (30x30mm) (M4 X 30mm) Steel band Warning label Screw (M3 X 15mm) ITEM NO: BD-8005 Printed in Vietnam REVISED APR 07, 2015 - 4 -... - Page 5 STEP 2 Attach bottom panel (C), center panel (D), and top (A) to the other side panel (B) with bolts (2), and washers (3) and (4) .Tighten with Allen key (1). ITEM NO: BD-8005 Printed in Vietnam REVISED APR 07, 2015...
- Page 6 Attach drawer sides (H) to drawer front (G) with screws (5). Tighten with a screwdriver Insert drawer bottom (J) into the grooves at bottom of drawer sides (H), and drawer front (G) as shown below. ITEM NO: BD-8005 Printed in Vietnam REVISED APR 07, 2015...
- Page 7 Attach drawer back (I) to drawer sides (H) with screws (5) as shown below. Tighten with a screwdriver. STEP 6 Attach support bars (K) to bottom of drawers with screws (8) as shown below. Tighten with the screwdriver. ITEM NO: BD-8005 Printed in Vietnam REVISED APR 07, 2015 - 7 -...
- Page 8 Stick the warning labels (10) inside the drawers before use STEP 8 Attach the steel band (9) to the wall with screws (5) as shown below (to secure the product and prevent tipping). ITEM NO: BD-8005 Printed in Vietnam REVISED APR 07, 2015 - 8 -...
