ASSEMBLY INSTRUCTIONS
Description
Item No
ITEM NO : T-4096XXT AND T-4096XXB
REVISED NOV 20, 2012
THE HARDWARE REQUIRED TO ATTACH THE PEDESTAL IS PACKED WITH THE PEDESTAL.

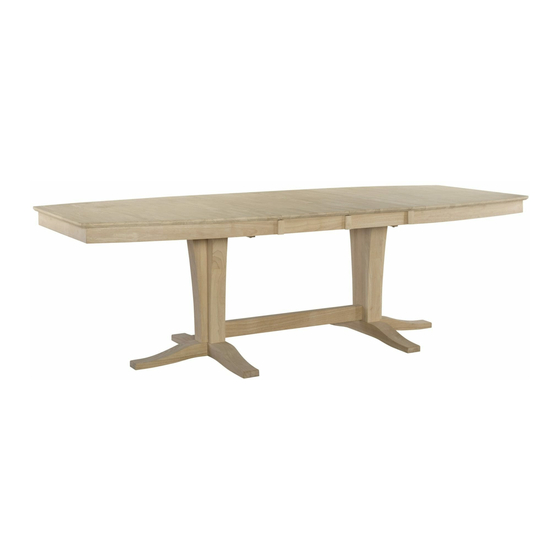

: MILANO TABLE TOP & MILANO TABLE BASE
:T-4096XXT AND T-4096XXB
Printed in Vietnam
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MILANO T-4096 T Series and is the answer not in the manual?

Questions and answers

Related Manuals for Whitewood Furniture MILANO T-4096 T Series

Summary of Contents for Whitewood Furniture MILANO T-4096 T Series

  • Page 1 ASSEMBLY INSTRUCTIONS Description : MILANO TABLE TOP & MILANO TABLE BASE Item No :T-4096XXT AND T-4096XXB Printed in Vietnam ITEM NO : T-4096XXT AND T-4096XXB REVISED NOV 20, 2012 THE HARDWARE REQUIRED TO ATTACH THE PEDESTAL IS PACKED WITH THE PEDESTAL. - 1 -...
  • Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. If a part is missing or defective, please contact the store where purchased.
  • Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Long leg Pedestal Short leg column Crossbar HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch...
  • Page 4 STEP 1 Attach crossbar (E) to pedestal columns (D) with bolts (6) and U-washers (8). Tighten with Allen key (7) Attach legs (C) to legs (B) with screws (5). Tighten with a screwdriver. Attach legs (B & C) to pedestal columns (D) with nuts (1), and washers (2) and (3) as shown below. Tighten with the wrench (4).
  • Page 5 STEP 2 Using Allen key (7) to loosen bolts and washers and remove the mounting plates. STEP 3 Attach mounting plates to the top of the pedestals (D) with nuts (1), and washers (2) and (3). Tighten with wrench (4) as shown below. Printed in Vietnam ITEM NO : T-4096XXT AND T-4096XXB REVISED NOV 20, 2012...
  • Page 6 STEP 4 Carefully place the base (from Step 3) on the bottom side of top (A). Attach mounting plates to table top (A) with bolts and washers. Tighten with Allen key (7). STEP 5 Unlock the table top from both sides underneath the table top. Pull the 2 parts of the top apart. Place the leaves in the center of the open table top.
  • Page 7 STEP 6 Lock the mechanism underneath 2 sides of the table top before use. To unlock, press the button up from the steel glide before opening the leaf as shown below. Printed in Vietnam ITEM NO : T-4096XXT AND T-4096XXB REVISED NOV 20, 2012 THE HARDWARE REQUIRED TO ATTACH THE PEDESTAL IS PACKED WITH THE PEDESTAL.
