Item#
1006 471 544
GG-11075-SSP
Model#
USE AND CARE GUIDE

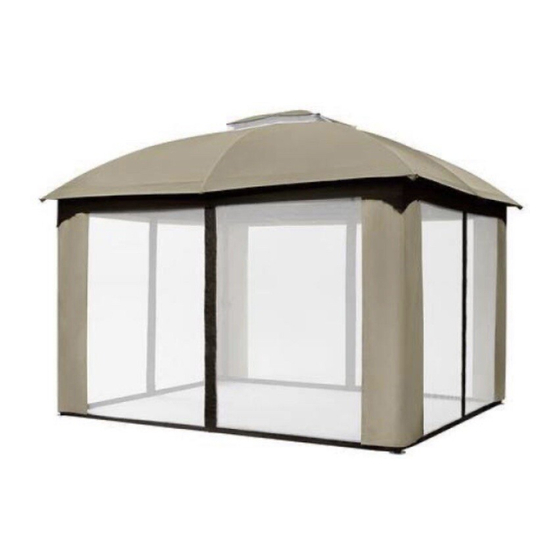

GAZEBO
SHILOH GLEN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-841-1350
HAMPTONBAY.COM
THANK YOU
gaz ebo
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY SHILOH GLEN GG-11075-SSP
Summary of Contents for HAMPTON BAY SHILOH GLEN GG-11075-SSP
- Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-841-1350 HAMPTONBAY.COM THANK YOU gaz ebo continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Pre-Assembly . -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Please read this entire instruction manual prior to assembly. Compare all parts packed in the carton against the parts list. Remove all protective materials and place the parts on a non-abrasive surface to avoid scratching. NOTE: More than one person may be required to complete the assembly of this product. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Ｈ Ｇ Part Description Quantity Post S hort beam Long beam Top support bar 1 Top support bar 2 Top support bar 3 Top support bar 4 Top plate Leg base plate U shape clip 1 U shape clip 2 U shape connector Big canopy cover... -
Page 5: Assembly
Assembly Attaching the beams □ Attach the short beams ( B) and long beams ( C) with U shape connector ( K ) using M6 x 45 mm combination bolts ( CC) and M6 nuts ( DD) , F ully tighten all the bolts with M6 Allen wrench ( F F ) . M6 x 15 mm combination bolts ( AA) . - Page 6 (continued) Assembly Attaching the long beams to the posts □ Attach the long beams ( C) to the posts ( A) using M6 x 15 mm combination bolts ( AA) . □ F ully tighten all the bolts with M6 Allen wrench ( F F ) . Attaching one short beam to the posts □...
- Page 7 (continued) Assembly Attaching another short beam to the posts □ Attach the another beam ( B) to the posts ( A) using M6 x 15 mm combination bolts ( AA) . □ F ully tighten all the bolts with M6 Allen wrench ( F F ) . Attaching the top support bar 4 to the beams □...
- Page 8 (continued) Assembly Attaching the top support bar 3 to the beams □ Insert the top support bars 3 ( E) into the top plate ( G ) . □ Attach the top support bars 3 ( E) to the short beams ( B) using M6 x 30 mm combination bolts ( BB) and M6 nuts ( DD) . Attaching the top support bar 1 to top support bar 2 □...

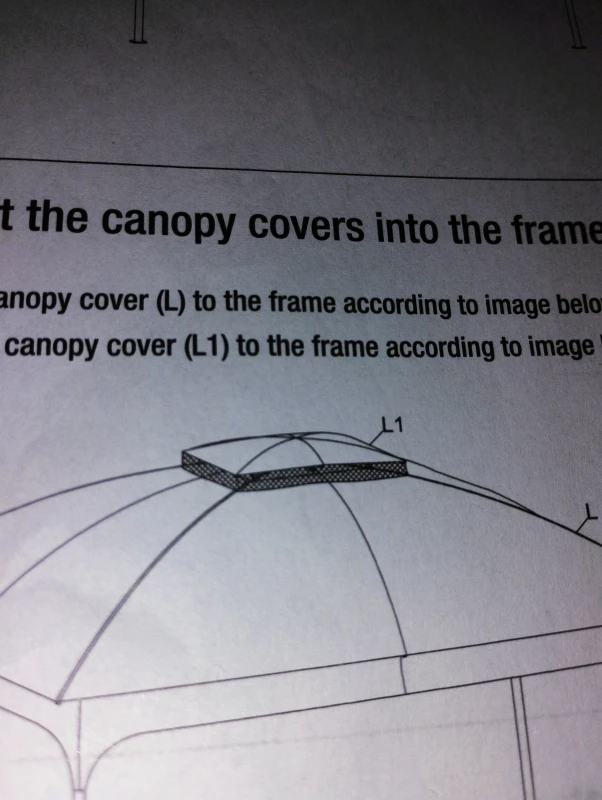

- Page 9 (continued) Assembly Attaching the top support bars 2 to the posts □ Insert the top support bars 1 ( D) into the top plate ( G ) . □ Attach the top support bars 2 ( D1) to the posts ( A) using M6 x 30 mm combination bolts ( BB) and M6 nuts ( DD) . I nsert the canopy covers into the frame □...
- Page 10 Assembly (continued) H ang the mosq uito net onto the beams □ Hang the mosquito nets ( M and M1) onto the beams ( B and C) according to image below. □ Hang the leg cloths ( N) onto the four posts ( A) . □...
- Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-841-1350 HAMPTONBAY.COM Retain this manual for future use.
