SRSLEEVE mounting adapter

This sleeve is supplied with Velcro swatches for mount-
ing an SR Series receiver on a flat surface of camera,
cart, rack, etc. The sleeve is sized and lined for a snug fit
in a vertical or horizontal position.

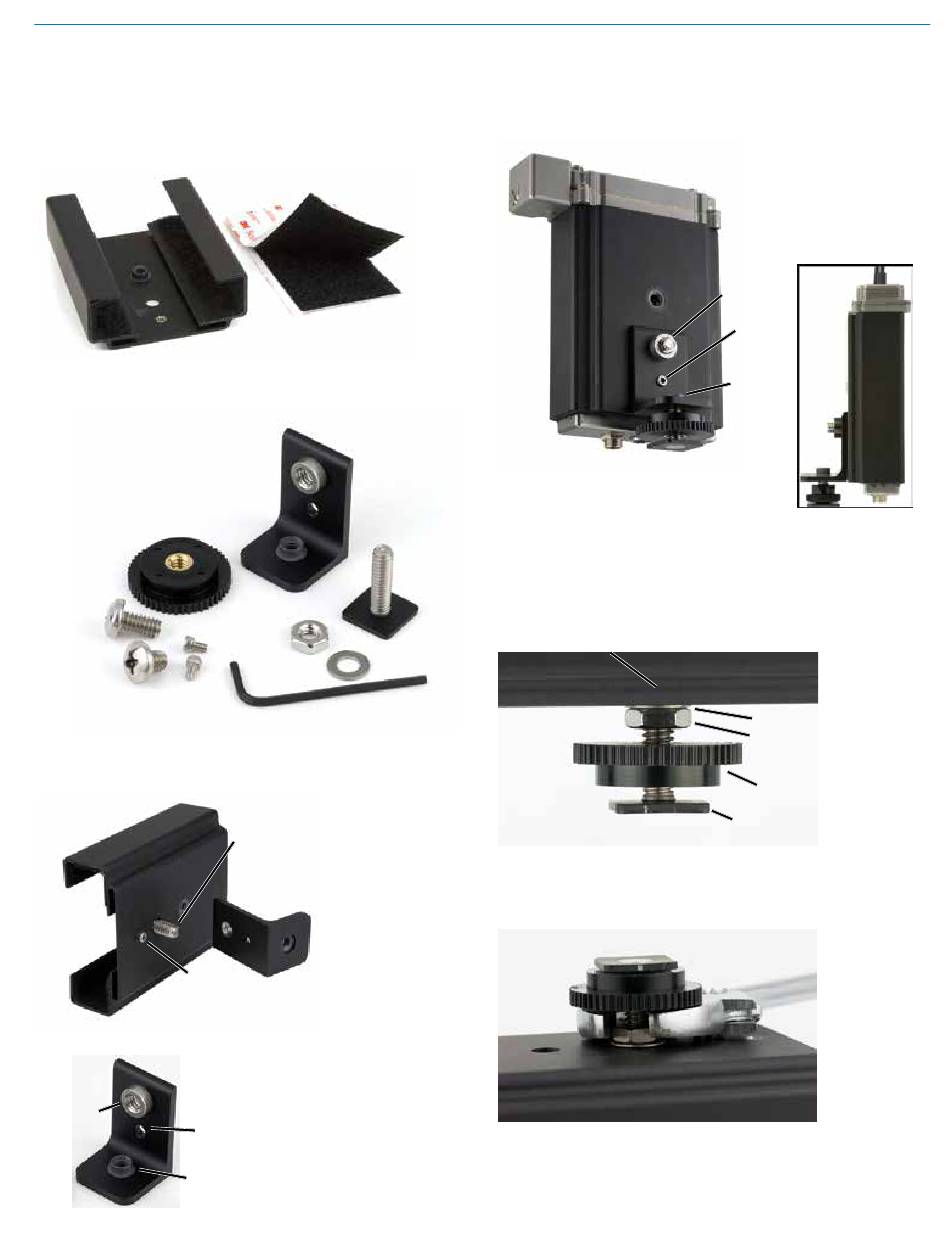

SRHARDWARE mounting adapter kit
Bracket
P/N 26739
Thumb nut
P/N P1241-1
Long pan
head screw
P/N 28876
Short pan
head screw
Retaining pins
P/N 28898
P/N 28865
For a vertical mounting, attach the right angle bracket to
the bottom of the sleeve.
Attach retaining
pin to keep bracket
from rotating
1/4-20
Retaining pin
insert nut
opening
1/4-20 clinch
pressnut
Rio Rancho, NM
Cold shoe
mounting foot
P/N 26752
Jam nut
P/N 28898
Washer
P/N 28912
Hex Key
P/N 35931
Long pan
head screw
P/N 28873
The bracket provides
two different mounting
nuts. The standard
pressnut is used to
attach the sleeve. The
tensioning (clinch type)
pressnut is used to
attach the cold shoe
mounting foot.
Attach the bracket to the sleeve with the long pan head
screw into the standard pressnut. The retaining pin fits
into the opening in the bracket. Attach the cold shoe
mounting foot to the tensioning nut and rotate it to orient
the receiver as desired.
The clinch nuts in the foot and housing apply friction to
the threads to allow the foot to be rotated to the de-
sired position, with the jam nut locking it in place. Use
a wrench to rotate the foot, then tighten the jam nut to
prevent the foot from rotating.
Clinch pressnut in bracket and sleeve
For horizontal mounting, insert the cold shoe foot into
the clinch nut in the sleeve. Rotate the foot to the desired
postion, then tighten the jam nut to lock it in place.
Use a wrench to thread the stud in about 1 - 2
turns, then rotate it to orient the receiver control
panel in the desired direction.
Tighten the jam nut to prevent the foot from rotating
Used together, the battery sled, sleeve and mounting foot
create a versatile, stand-alone, self-powered configura-
tion for an SR Series or DSR receiver.
Two Channel Digital Receiver
Standard
pressnut
Retaining
pin
Cold shoe
foot into
clinch
pressnut
Washer
Jam nut
Thumb nut
Cold shoe foot
