Q
uick
S
tart
G
uide

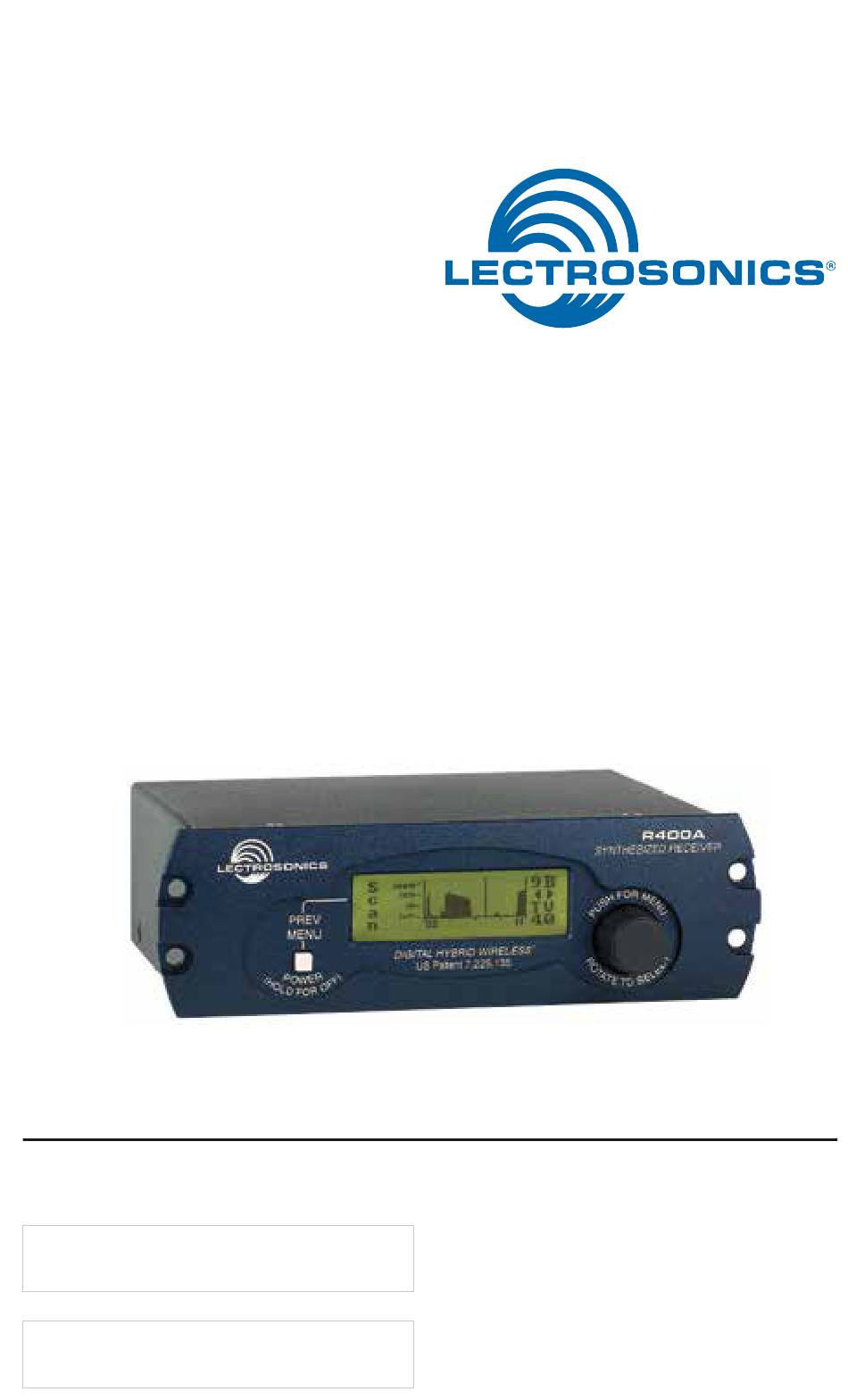

Digital Hybrid Wireless
Reciver
R400A
Fill in for your records:
Serial Number:
Purchase Date:
®
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com/US
Version 2
U.S. Patent 7,225,135
16 Jun 2015
Advertisement
Table of Contents
Related Manuals for Lectronics R400A
Summary of Contents for Lectronics R400A
-
Page 1: Digital Hybrid Wireless
Digital Hybrid Wireless ® Reciver R400A Version 2 U.S. Patent 7,225,135 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product. For a detailed user manual, down-... -
Page 2: Initial Setup
LCD displays the three-screen Power Up Sequence: Lectrosonics R400A VXX where XX is the current firmware version installed Block XX where XX is the frequency tuning range block number After the Power Up Sequence is displayed, the Main Window appears and the R400A is ready for operation. - Page 3 With the test tone running, adjust for the maximum desired peak level using the metering on the connected device. If desired, access the LockSet menu to lock the R400A front panel controls to prevent inadvertently modifying the receiver settings during operation.
- Page 4 The Freq setup screen displays the TV channel, the associated transmitter Frequency Select Switch settings and the selected operating frequency for the R400A. To change the operating frequency, rotate the MENU control. Exit this setup screen by pressing the PREV MENU button. The receiver will retain its tuning even when the power is off.
- Page 5 TIMER mode. The colon blinks when the TIMER is running, and also indicates that the communications link is active. When either the transmitter or the R400A receiver is powered OFF, the timer will retain the accumulated time and resume counting only when a signal is detected from the transmitter.
- Page 6 TxBatt (continued) To reset the timer, navigate to the TIMER setup screen and quickly press and release the PREV MENU button and the MENU control simultane- ously. The TIMER mode is most useful for NiMH batteries as they do not exhibit reliably identifiable voltage drops as they discharge.
- Page 7 In this mode, the cursor will remain in the center of the display and turning the rotary control will move the background. Finer detail is presented in this mode. Main Window R400A 557.100 NORM Cursor moves to indicate scanning...
