DSR
Battery Adapters and
Mounting Kits

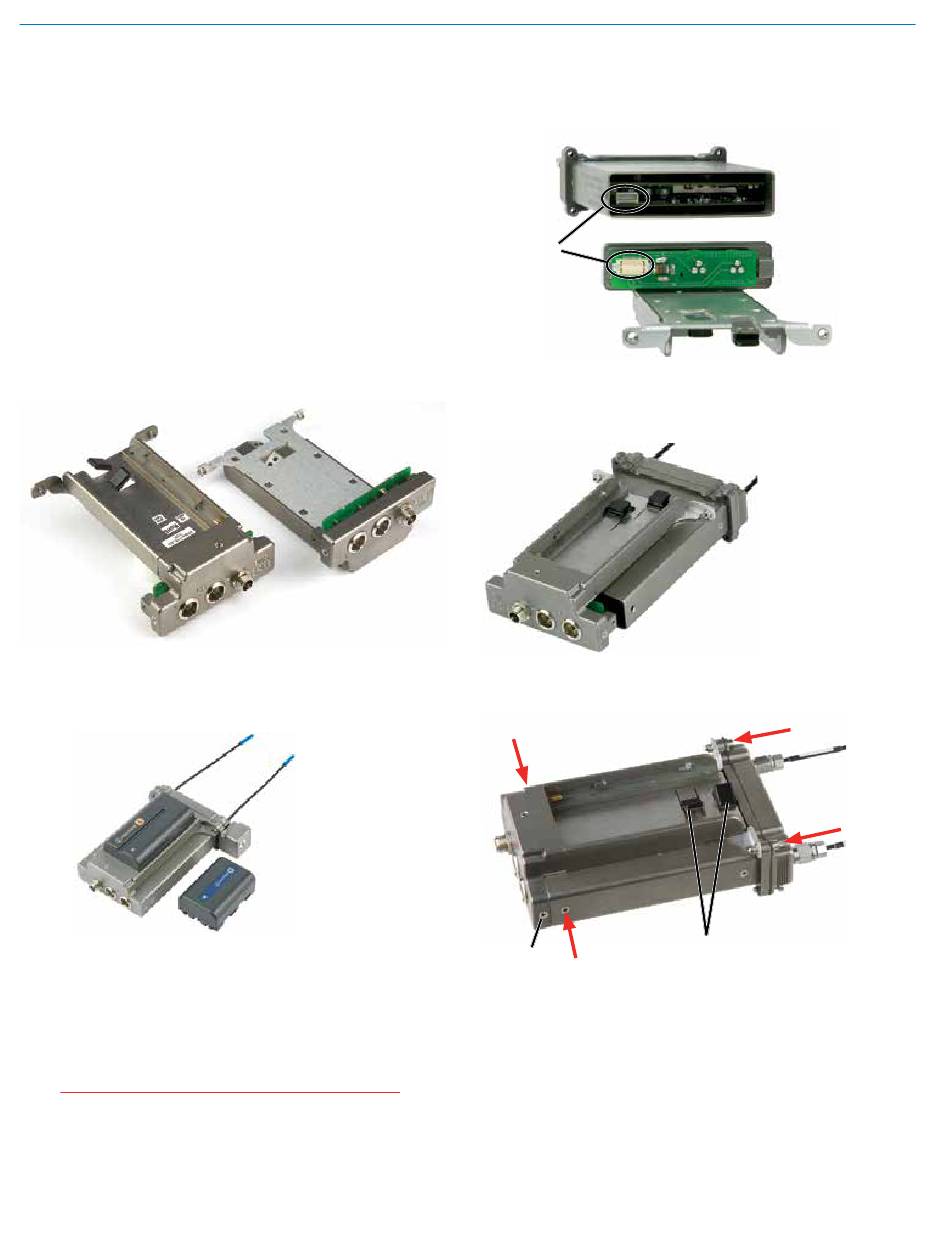

Battery sled adapters configure the receiver for stand-
alone use or to provide battery backup power. Several
options are available:
• SRBATTSLEDTOP
• SRBATTSLEDBOTTOM
• SR9VBP (inserts into the SLED adapters)
WARNING: Risk of explosion if the battery is
replaced by an incorrect type.
SBATTSLEDTOP
The battery sled adapters accept L and M type video
camera rechargeable batteries and the optional SR9VBP
9 volt battery case.
Batteries mount
directly onto the
battery sled
The battery sled adapters do not include charging cir-
cuitry. Batteries must be charged with their respective
chargers. The adapters include an integral circuit that au-
tomatically selects between the battery and the external
source, whichever delivers the highest voltage.
Do not use SR9VBP accessory with the DSR receiver
- it does not supply enough current for this receiver.
24
SRBATTSLEDBOTTOM
Installing the SRBATTSLED
Orient the battery sled so that the PCB connectors will
mate when the sled is inserted.
PCB
connectors
Slide the battery sled adapter into the end of the SR and
gently seat it into place with the rear panel flush with the
housing.
Install and tighten the two side panel and two top panel
screws as indicated by the arrows.
Battery retaining clips.
Spare
screw
Battery Life
• The DSR receiver operating time with a NP-F570
slim L series battery at full charge is approximately
7.5 hours.
