DSR

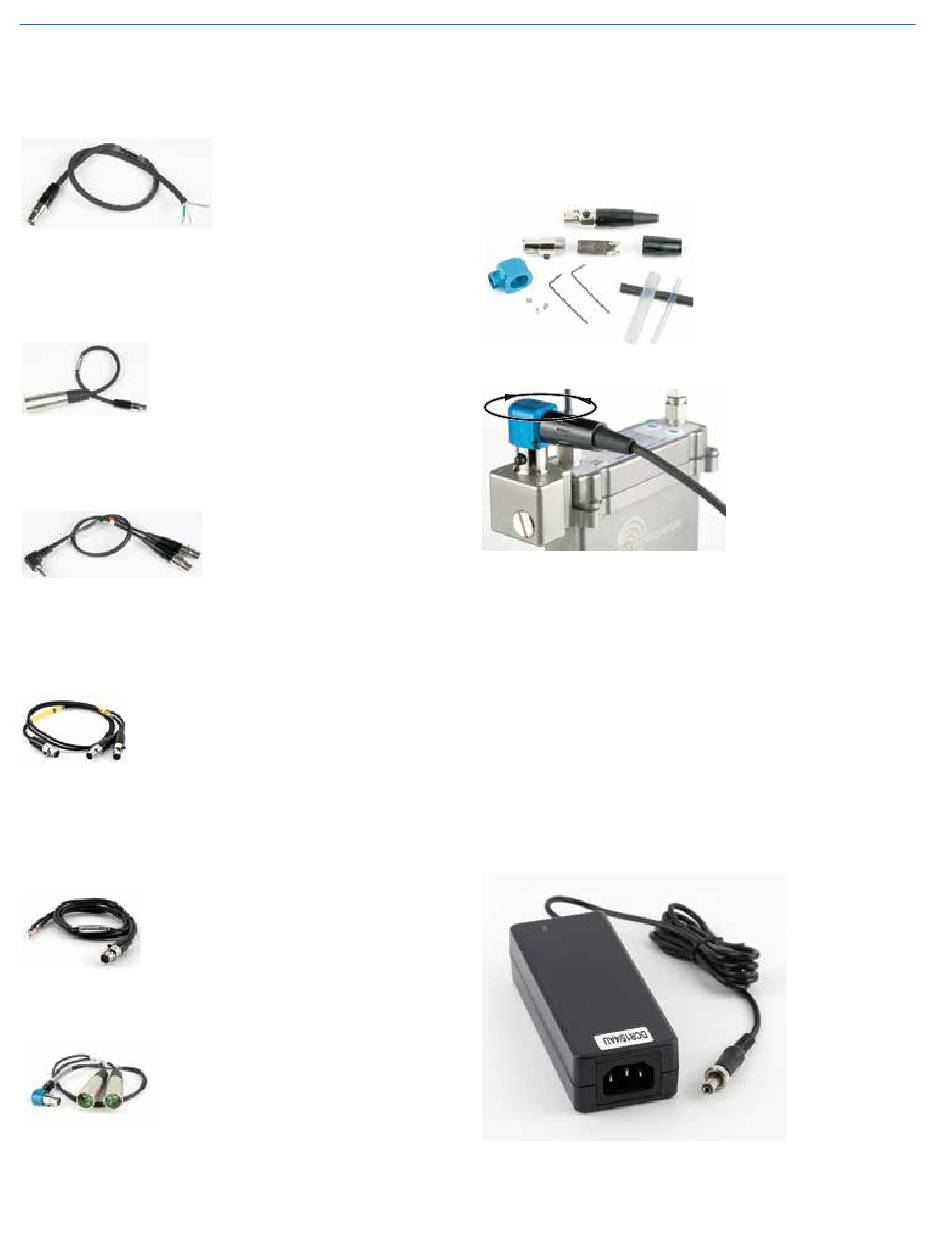

MCSRPT
12 inch long TA3 female to stripped and tinned wires for
balanced output. PIN 1: Shield / PIN 2: Audio (+) white/
PIN 3: Audio (-) green.
PIN 3: Audio (-) green
MCSRXLR
12 inch long TA3 female to XLR male 3-pin for balanced
output. PIN 1: Shield / PIN 2: Audio (+) / PIN 3: Audio
(-)
MCSRTRS
Male 3.5 mm TRS plug to two female TA3 (mini XLR)
connectors for dual channel use, unbalanced.
MCTA5TA3F2
Audio cable for portable digital receivers, TA5F to two
TA3F connectors, 18" cable. For two analog balanced
receiver outputs, or two AES digital pairs (four audio
channels), into mixer or recorder inputs.
MCTA5TPT2
Audio cable for portable digital receivers, TA5F to two
stripped and tinned ends, 18" cable. For two analog
balanced receiver outputs, or two AES digital pairs (four
audio channels).
MCSR/5PXLR2
Audio cable for SR-type receivers, rotatable right-angle
TA5 to two 3-pin male XLRs. 20" cable.
20

RATPAC Adapter Kit

Adapter kit to build either a 3-pin or 5-pin TA Series right
angle connector. Includes standard 5-pin connector,
modified 3-pin insert and backshell, aluminum right angle
housing, strain relief tubing, set screws and wrenches.
The 5-pin RATPAC right angle connector is designed for
the front panel output jack. The 3-pin version is designed
for the rear panel outputs on the receiver.
The connector can be rotated during assembly to exit the
cable in the desired direction. See instructions included
with the RATPAC kit.

External Power Supplies

DCR15/4AU
Power supply with a standard C14 inlet and locking LZR
coaxial output connector; 100-240 VAC in, 15 VDC regu-
lated output; 4A max.
LECTROSONICS, INC.
