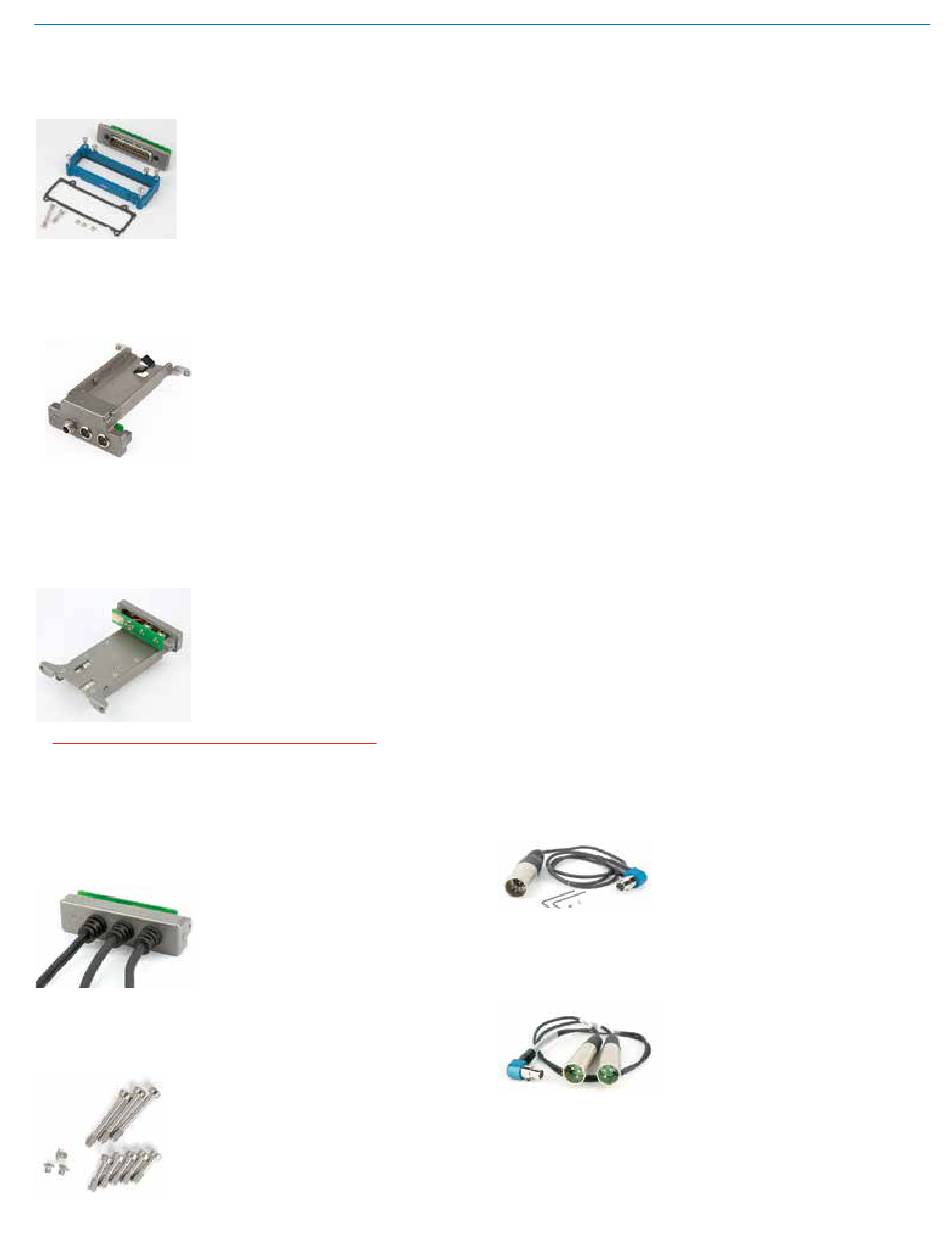

SRSUPER
Mounting adapter for SR/DSR receivers includes Unislot
mounting kit, Superslot compatible.
SRBATTSLED TOP
A "battery sled" that positions the battery on top of the
receiver for mounting on the top of the camera with the
LCD and rear panel nomenclature oriented correctly.
SRBATTSLED BOTTOM
A "battery sled" that positions the battery on the
bottom of the receiver for mounting on the bottom of
the camera with the LCD and rear panel nomenclature
oriented correctly.
Do not use SR9VBP accessory with DSR receiver -
it does not supply enough current for this receiver.
SRHARNESS
Output/power adapter panel for SR/DSR receivers.
Strain relief attached cables with stripped, tinned ends,
5 feet, 8 inches.
SRUNISCREWKIT
(also for SUPERSLOT)
Contains:
3 - #28862 (longest)
5 - #28864 (mid-length)
3 - #28869 (shortest)*
* For Housing
Rio Rancho, NM
UMCWBD-L
Rack mount with power and RF signal distribution for
four diversity compact receivers in a single rack space.
Refer to following kits for retrofit.
ZS-UMC-411A-KIT
Kit for UCR411A mounting. Snap-in bezel. Non-locking
DC power tail
ZS-UMC-DCR822-KIT
Kit for DCR822 mounting. Snap-in bezel Thread-locking
"LZR" DC power tail
ZS-UMC-SR-KIT
Kit for SRB/C mounting. Snap-in bezel. Screw kit. Mid-
mounting plastic frame. Thread-locking "LZR" DC power
tail.
ZS-UMC-DSR4-DSR-KIT
Kit for DSR4/DSR mounting. Snap-in bezel. Screw kit.
Mid-mounting plastic frame. Thread-locking "LZR" DC
power tail.
ZS-UMC-DSR4-HIROSE4-KIT
Kit for DSR4 mounting with Hirose 4 power. Snap-in be-
zel. Screw kit. Mid-mounting plastic frame. Hirose 4-pin
DC power tail
Audio Output Cables and
Connectors
MCSR5PXLR5P
Right angle TA5F plug to 5-pin XLR; balanced outputs;
25 inches long. For TA5M output jacks.
MCSR5PXLR2
Right angle TA5F plug to two 3-pin XLR; balanced
outputs; 20 inches long. For TA5M output jacks.
Two Channel Digital Receiver
