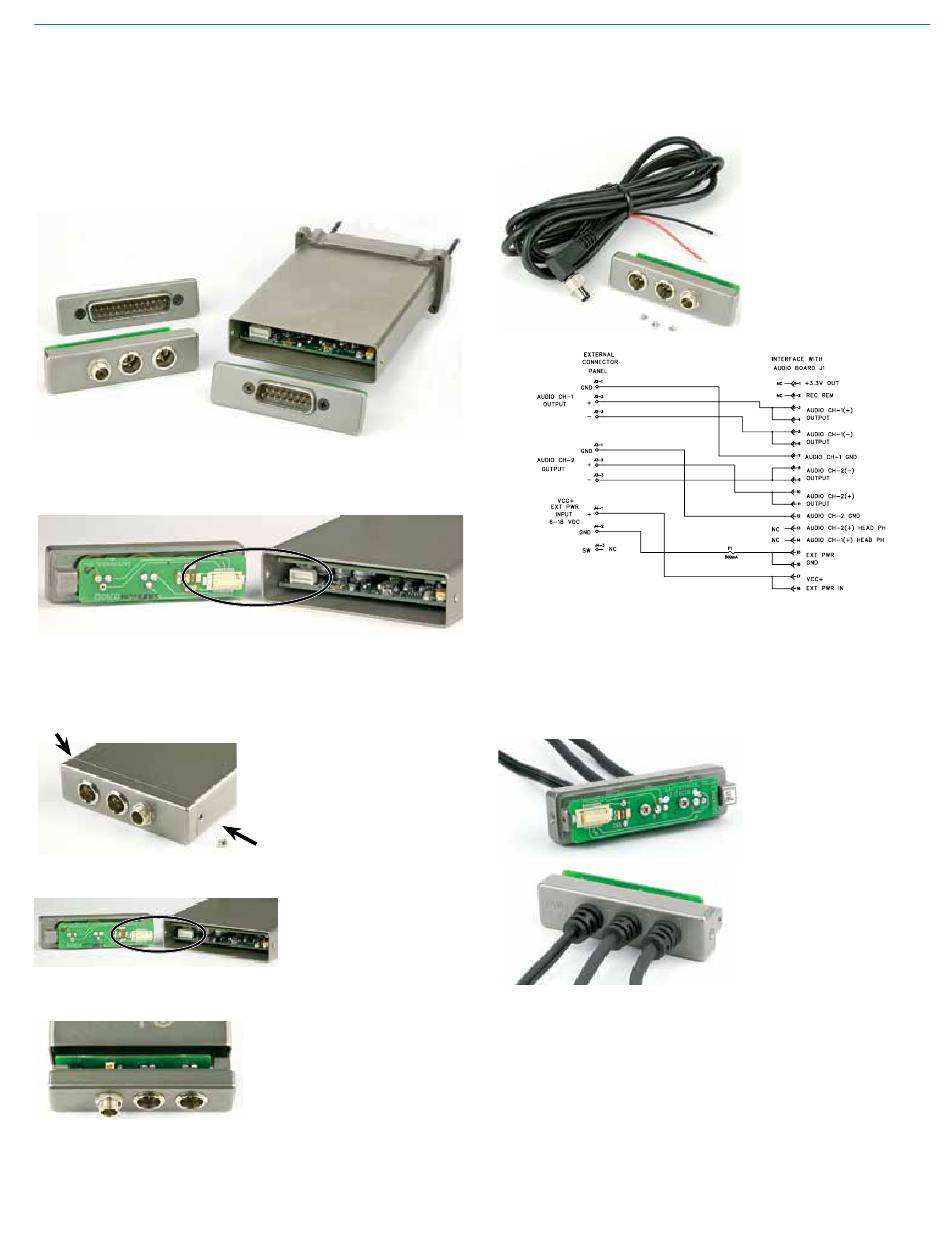

Rear Panel and Adapters
Several different panel adapters are available to config-
ure the receiver for use with popular camera slots and
for stand-alone use. The adapters are retained by two
screws through the side panel of the housing, making
them easy to install.
Power and audio connections are made through mating
connectors on the adapter and receiver circuit boards.
Installing Rear Panel Adapters
Installation of the rear panel output/power adapters is the
same for all models.
Rio Rancho, NM
Panels are held in
place by two phillips
head screws on the
sides of the housing.
Connections be-
tween the panel and
main circuit board
are made via minia-
ture mating connec-
tors.
Align the mating
connectors and slide
the panel straight
into the housing
until the screw holes
align with the hous-
ing.

Adapters for Stand-Alone Use

SREXT
SRHARNESS
Ideal for use in portable bag systems. Two balanced
output cables and the power cable are 5 feet, 8 inches
long. Cut the cables to the desired length and terminate
as needed.
Two Channel Digital Receiver
For stand-alone use,
this kit includes a rear
panel with two TA3
male jacks for the
balanced outputs and
a power jack with a
locking connector. Trim
the power cable to the
desired length.
