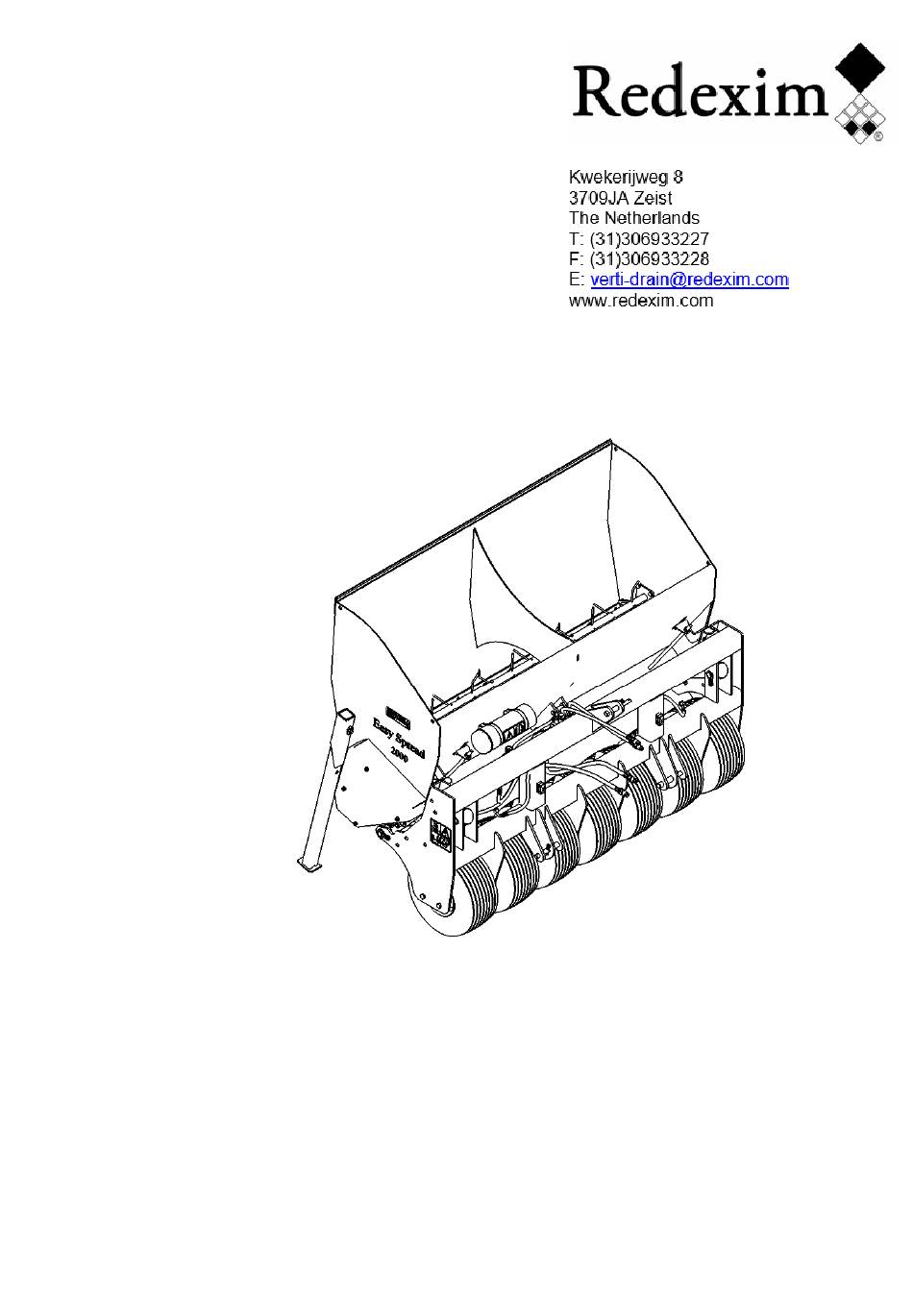

User Manual and Parts Book
Easy Spread
Model 1000/1500/2000
Serial number:
Translation of the original operating instructions
ATTENTION:
IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL
CAREFULLY PRIOR TO USING THE EASY SPREAD IN ORDER TO USE THE
MACHINE SAFELY AND TO OBTAIN THE BEST RESULTS.
1714 English 931.120.000
Advertisement
Table of Contents
Related Manuals for Redexim Easy Spread 1000
Summary of Contents for Redexim Easy Spread 1000
- Page 1 User Manual and Parts Book Easy Spread Model 1000/1500/2000 Serial number: Translation of the original operating instructions ATTENTION: IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL CAREFULLY PRIOR TO USING THE EASY SPREAD IN ORDER TO USE THE MACHINE SAFELY AND TO OBTAIN THE BEST RESULTS.
-
Page 2: Warranty Conditions
FOREWORD Congratulations on your Easy Spread purchase! For safe and long-lasting operation of the Easy Spread, it is necessary to read and to understand this user manual. It is impossible to work safely with this machine without complete knowledge of the content of the user manual. The Easy Spread is not a machine that works independently. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS The Easy Spread is designed for safe use. This can only be achieved if you completely follow the safety instructions described in this manual. Read and understand (figure 1) the manual before you use the Easy Spread. If the machine is not used as described in this Figure 1 manual, this can result in injuries and/or damage to the Easy Spread. - Page 4 If modifications to the Easy Spread have been made, then the current CE marking is cancelled. The person that has made these modifications has to apply for a new CE marking himself. Check the Easy Spread for loose bolts, nuts and components before every operation. If present, check the hydraulic pipelines regularly and replace these when the hydraulic pipelines are damaged or appear old.
- Page 5 (6) All persons that are going to operate the Easy Spread must be familiar with all its functions and control elements before starting any work activities. Attach the Easy Spread to the towing vehicle according to the regulations. (Danger of injuries!) Check whether you have a clear field of vision –...
-
Page 6: Eu Declaration
EU DECLARATION We - Redexim BV, Utrechtseweg 127, 3702 AC Zeist, Holland – declare entirely under our own responsibility that the product: EASY SPREAD WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL to which this declaration relates is according to the stipulation of the 2006/42/EC directive for machines as well as the following standards: NEN-EN-ISO 12100 : 2010 and NEN-EN-ISO 13857 : 2008. -
Page 7: Table Of Contents
TABLE OF CONTENTS WARRANTY CONDITIONS ..................2 REGISTRATION CARD ..................2 SAFETY INSTRUCTIONS ..................3 EU DECLARATION ....................6 TECHNICAL DATA ..................8 GENERAL DESCRIPTION ................. 8 FIRST INSTALLATION – TAKING THE MACHINE OFF THE PALLET/GETTING IT READY FOR USE ........... 9 ATTACHING THE MACHINE TO THE TRACTOR ........ -
Page 8: Technical Data
TECHNICAL DATA Model 1000 1500 2000 Working width 1.0 m 1.5 m 2.0 m Tractor speed Max. 12 km/h (7,5 Max. 12 km/h (7,5 Max. 12 km/h (7,5 mph), depending on mph), depending on mph), depending on the type of tractor the type of tractor the type of tractor and the condition of... -
Page 9: First Installation - Taking The Machine Off The Pallet/Getting It Ready For Use
FIRST INSTALLATION – TAKING THE MACHINE OFF THE PALLET/GETTING IT READY FOR USE Figure 6 The machine is placed on the pallet. To remove the pallet and to place the machine on the ground, you take the following steps (see Figure 6) NEVER CRAWL UNDER THE MACHINE! Attach a cable to the upper 3-point (1) and at the hoisted supports (2) at both sides of the machine. -
Page 10: Attaching The Machine To The Tractor
ATTACHING THE MACHINE TO THE TRACTOR Checking procedure before starting to attach the Easy Spread: Check the Easy Spread for visually discernable damage and repair this if safe operation of the machine is no longer guaranteed. Check whether all the nuts and bolts are tight. ... - Page 11 8. Attach the hydraulic hoses to the tractor (7). Make sure that hoses that go together are attached to the same connection. The hoses for tipping the bucket should be attached to one connection, these are the small hoses. The hoses for regulating the gritting quantity should also be attached to one connection, these are the big hoses.
-
Page 12: Operating The Easy Spread
OPERATING THE EASY SPREAD Figure 9 Operating the Easy Spread is divided in two parts, namely the operation of the bucket and the operation of the gritting cylinder. Make sure that the two hydraulic hoses of each part are attached to a double-acting valve on the tractor. -
Page 13: Loading The Easy Spread
LOADING THE EASY SPREAD Loading the Easy Spread is done by lowering the bucket and scooping the gritting material (Figure 11) Figure 10 The procedure is as follows (Figure 10) Drive the machine in a raised position to the gritting material to be used. Lower the wheels of the Easy Spread to the ground. -
Page 14: Driving Speed
DRIVING SPEED For safety reasons the driving speed of the Easy Spread is limited to 12 km/h (7,5 mph), but in reality you will have to determine the maximum driving speed depending on the desired gritting image. USING THE EASY SPREAD Before using the Easy Spread in a location, you should check the following items: Are there loose objects in the field? First remove these objects. -
Page 15: Transporting The Easy Spread
Drive to the spot where the processing should take place and stop the tractor. Engage the tractor in the correct gear. Lower the Easy Spread to the ground in a smooth movement. Start driving the tractor and operate the hydraulic valve of the gritting cylinder/agitator so that it begins to grit. -
Page 16: Disconnecting The Easy Spread
11.0 DISCONNECTING THE EASY SPREAD Figure 12 The machine can be detached from the tractor in the following manner (Figure 12) Drive the Easy Spread to a parking area with a firm/flat surface. Remove the adjustable legs (1) from the frame and reattach these to the bucket. Lower the Easy Spread controlled and calmly until it stands completely on the ground. -
Page 17: Trouble Shooting (Problem Analysis)
12.0 TROUBLE SHOOTING (PROBLEM ANALYSIS) Problem Possible cause Solution Gritting cylinder / Hydraulic hoses are not Attach the hoses correctly to Agitator does not attached correctly to the the tractor. rotate or hardly tractor. rotates. Rotating speed of the cylinder Turn up the speed control is too low. -
Page 18: Maintenance
13.0 MAINTENANCE Only authorised technical personnel may carry out repairs and adjustments to the Easy Spread due to the safety of the machine and the user. Use only original Easy Spread parts for maintenance or repairs because of the safety of the machine and of the user. -
Page 19: Grease Points
13.1 GREASE POINTS On the machine are various lubrication points. In (fig. 13) lists the different points displayed. Lubricate these points according to the indicated schema in Chapter 13.1. All cylinders are provided with greasing points, these should all be lubricated. Fig. -
Page 20: Change Wheels
15.0 CHANGE WHEELS In case of a leaky or damaged wheel, the wheel should be repaired or replaced. This can be done in the following manner: Raise the Easy Spread ± 20 cm (8 ") from the ground. By means of the lifting device of the tractor or with cables. -
Page 21: Chain Tension
16.0 CHAIN TENSION Figure 15 The chain tension is important and should be checked regularly. It is also important to regularly clean and lubricate the chain and sprocket wheel when necessary (Figure 13) Remove the protective cover. Make sure that the tractor is blocked well and cannot move on its own accord! Switch off the tractor before descending! Make sure that the Easy Spread stands firmly on the ground and is...
