Solar Inverter
PVS-50.0/60.0-GROUNDING KIT
(For PVS-50/60-TL )
Quick Installation Guide
In addition to what is explained in this quick installation guide, the safety and installation information provided in the product manual must be read and
followed. The technical documentation for the product is available at the website.
The device must be used in the manner described in the manual. If this is not the case the safety devices guaranteed by the inverter might be ineffective.
Advertisement
Table of Contents
Related Manuals for Fimer PVS-50.0
Summary of Contents for Fimer PVS-50.0
- Page 1 Solar Inverter PVS-50.0/60.0-GROUNDING KIT (For PVS-50/60-TL ) Quick Installation Guide In addition to what is explained in this quick installation guide, the safety and installation information provided in the product manual must be read and followed. The technical documentation for the product is available at the website.

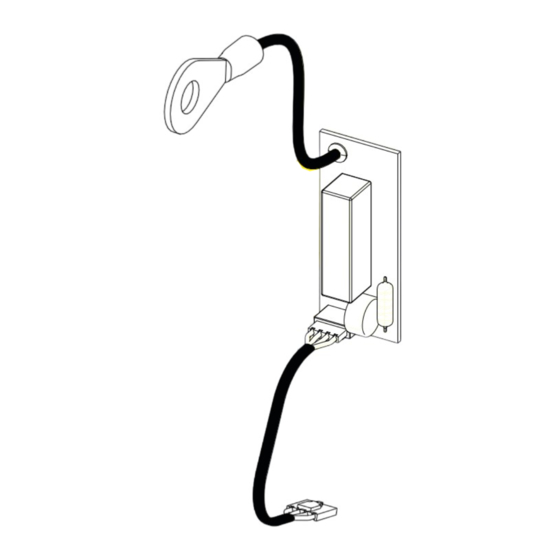

- Page 2 1. Main components Main components Negative grounding board Negative pole connection cable Wiring signals Wiring connector signals 2. Supplied component list Components available in the kit Quantity Negative grounding board Wiring signals Warning label Quick Installation Guide...
- Page 3 ATTENTION – When the PVS-50.0/60.0-GROUNDING KIT is assembled in one or more inverters connected in parallel to the same transformer winding: 1.the inverters and the PV Array must be installed in Closed Electrical Operating Areas where the access is restricted to instructed persons.
- Page 4 • Press down lightly on both sides of the board until two holding clips will secure the board to the support and connect the wiring signals: Click Click • Connec the negative pole connection cable (as in the illustration). Torque: 4Nm •...
- Page 5 4. Grounding Kit enable via Web User Interface After commissiong the unit it is necessary to enable the GROUNDING KIT entering in the Web UI using the administrator account generated during the previous commissioning procedure. Enter the Menu: Setting/Additional Function and: •...
- Page 6 In the Menu Home /GF interface subsection the following parameters are described: a) Vneg-gnd → Voltage between negative pole and ground b) Vpos-gnd → Voltage between positive pole and ground See the picture below:...
- Page 7 5. Technical data Grounding kit Compatibility Three-phase inverter models: PVS-50.0/60.0-TL Type of grounding Resistive Pole connected to the Ground/Earth Negative System requirements Isolating transformer Mandatory -IT System- Configuration of the isolating transformer Delta or wye configuration on the inverter side, can be used, but transformer poles, including star...
