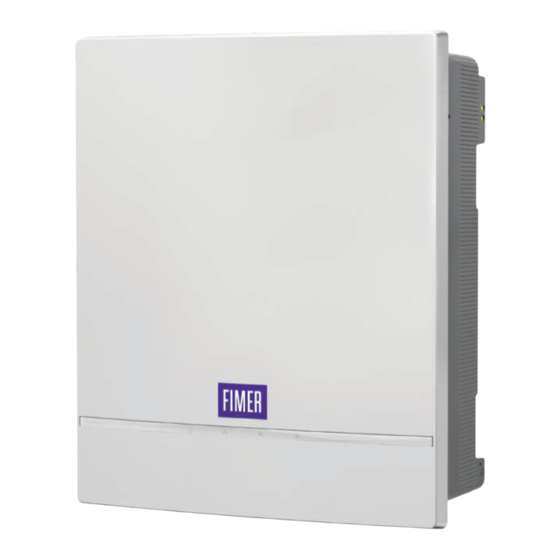

Solar Inverter
PVS-20/30/33-TL
Quick Installation Guide
In addition to what is explained in this quick installation guide, the safety
and installation information provided in the product manual must be read
and followed. The technical documentation for the product is available at
APPLY HERE
the website.
The device must be used in the manner described in the manual. If this
THE COMMUNICATION
is not the case the safety devices guaranteed by the inverter might be
ineffective.
IDENTIFICATION LABEL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fimer PVS-30-TL
Summary of Contents for Fimer PVS-30-TL
- Page 1 Solar Inverter PVS-20/30/33-TL Quick Installation Guide In addition to what is explained in this quick installation guide, the safety and installation information provided in the product manual must be read and followed. The technical documentation for the product is available at APPLY HERE the website.
- Page 2 DC SPD DC connection AC SPD AC connection PVS-20-TL-SX Type 2 4 string input Type 2 Pluggable Terminal Block PVS-20-TL-SXD PVS-30-TL-SX Type 2 8 string input Type 2 Pluggable Terminal Block PVS-33-TL-SX PVS-20-TL-SY Type 1+2 4 string input Type 2...
- Page 3 Distances Risk of electric shock.The discharge time (quantified in the • Maintenance operations from FIMER service could entails removing the figure by the number XX) of the stored energy after de- front cover. Always observe the required installation safety distances in energizing of the Inverter from both DC side and AC side.
- Page 4 5. Supplied Component list • Provide a sufficient working space in front of the inverter that allows to removing the front cover (FIMER service only) and to allow wiring connections. • Install at a height which takes into consideration the weight of the unit and Component Q.ty...
- Page 5 To protect the AC connection line of the inverter, it is recommended to install a protection device against overcurrent and earth leakages with the following features: Load protection breaker PVS-20-TL PVS-30-TL PVS-33-TL Automatic circuit breaker with thermal- Type magnetic protection •...
- Page 6 7.4.3 Connection on the Protective earth (PE) external • Pass the AC cable (diameter 22...32 mm) through the AC cable gland (23). connection point (04) • Strip the cable. • Install M6 cable lug on the earth cable. • Install the earth wire on the Protective earth (PE) external...
- Page 7 The commissioning can be done also via WebUI. Once powered, the inverter will create a Wi-Fi network (SSID: FIMER-YYWWSSSSSS); connect to this Wi-Fi (use the Product Key as password; digit also the dash “-” characters). • Confirm the settings by clicking “Save”.
- Page 8 4. Available only with a dedicated version called “SI”, with 33kW of power. 10. By selecting the grid standard "GERMANY (VDE 4105: 2018 PNOM)" this value is 5. Hereby, FIMER S.p.A. declares that the radio equipments (radio module combined with limited to 20000VA for PVS-20-TL and 33000VA for PVS-33-TL the inverter), are in compliance with the Directive 2014/53/EU.
