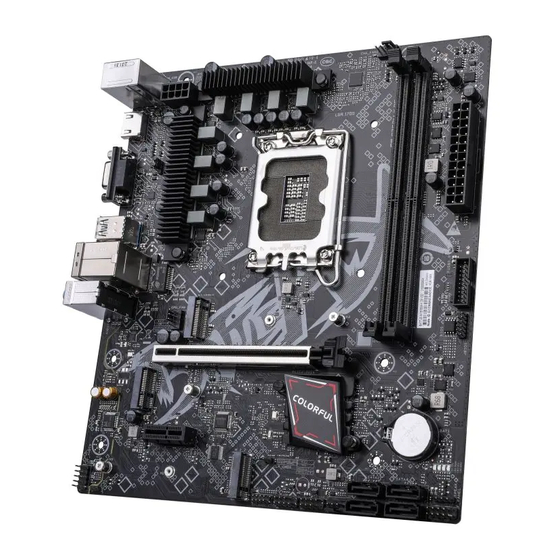

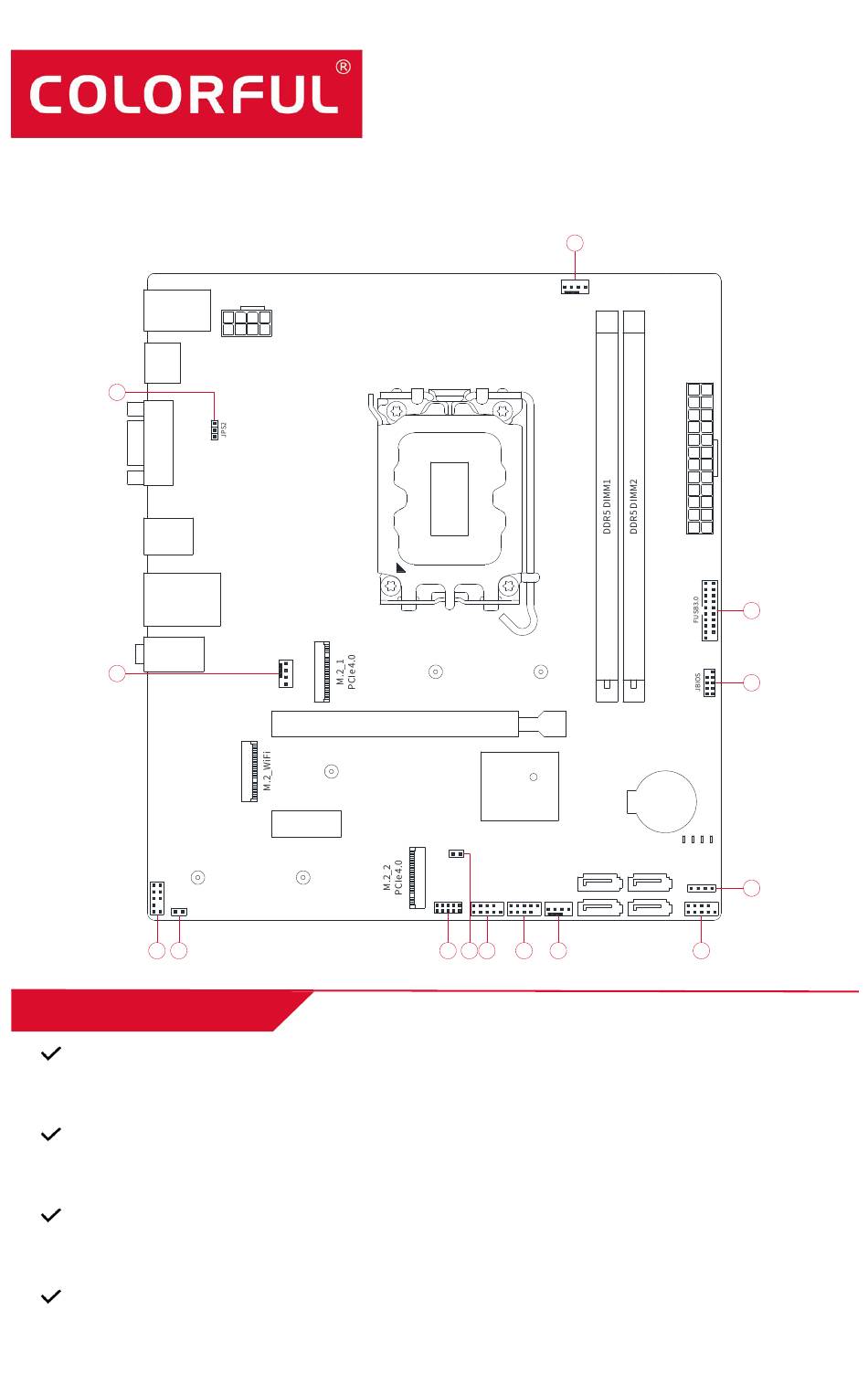

BATTLE-AX B760M-K D5 V20
PS/2
+
2*U2.0
HDMI
13
VGA
2*U3.2G1
LAN
+
2*U3.2G1
AUDIO
1
F_AUDIO
2280
JME
5
9

Product Features

Intel B760 chipset,Supports 13th/12th Gen Intel® Core™ Processors, Pentium®
Gold and Celeron® Processors.
There is 1 PCIe 4.0 x16 slot,1 PCIe 3.0 x1 slot and 2 M.2 SSD slot on this
motherboard, easily meet your expansion needs.
There are 6 USB ports at the rear, and 4 USB ports at the front can be expanded,
which can be connected to various devices at the same time.
With Gigabit LAN and a 5.1-channel audio which provides excellent performance
and experience.
Motherboard User Manual
CPU_8P
CPU_FAN
PCIe 4.0×16
2230
PCIe 3.0×1
2242
2
CHA_FAN2
LGA 1700
2242
2280
Intel
R
B760
CLR_CMOS
SATA_1
ESPI_HEADER
COM
FUSB2.0 CHA_FAN2
SATA_2
8
3
12
10
2
ATX_PWR
4
11
BATTERY
SATA_4
7
SPEAK
F_PANEL
SATA_3
6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BATTLE-AX B760M-K D5 V20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Colorful BATTLE-AX B760M-K D5 V20

  • Page 1 Motherboard User Manual BATTLE-AX B760M-K D5 V20 PS/2 CHA_FAN2 2*U2.0 CPU_8P HDMI ATX_PWR LGA 1700 2*U3.2G1 2*U3.2G1 AUDIO CPU_FAN 2242 2280 PCIe 4.0×16 Intel 2230 B760 BATTERY PCIe 3.0×1 CLR_CMOS SATA_1 SATA_4 F_AUDIO SPEAK 2280 2242 F_PANEL ESPI_HEADER FUSB2.0 CHA_FAN2...
  • Page 2 (*Note: The blue in the audio interface is the audio input, the green is the audio output, and the pink is the microphone interface) Hardware Installation You can scan the QR code on the right to obtain the official quick operation guide for hardware installation provided by Colorful to install it onto your PC quickly.
  • Page 3 Supports 13th Gen and 12th Gen Intel Core™, Pentium® and Celeron® processors that fit the LGA 1700 slot of the motherboard *Please visit the official website of Colorful (www.colorful.cn) for the latest supported processor list 2 DDR5 memory slots, supporting up to 96 GB of memory (a single slot can support a capacity of up to 48 GB) ●Support DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/...
  • Page 4 Front 1×USB 2.0 pin, support additional 2 USB 2.0 Type-A interfaces (FUSB2.0) USB expansion 1×USB 3.2 Gen 1 pin, support additional 2 USB 3.2 Gen 1 Type-A interfaces interfaces (FUSB3.0) Realtek ALC897 High fidelity decoding chip Audio ●Support up to 5.1 channels Network function RTL8111H gigabit LAN controller Wireless network...
  • Page 5 Front audio pin (F_AUDIO) The audio interface on the front panel of the case can be connected to the front audio pin through the audio cable in the case, allowing audio input/output and other functions through the audio interface on the front panel.
  • Page 6 Clear CMOS jumper(CLR_CMOS) Clear CMOS jumper can be used to clear data in the CMOS memory of the motherboard. In CMOS memory it stores the BIOS setting parameters and is powered by the battery on the main board independently. If you need to clear CMOS data, first turn off the computer and unplug the power cord, insert the jumper cap onto the CMOS pin, and make the two pins Short connect the feet for 5 seconds, then pull out the jumper cap, wait for 5 minutes, and then start the computer to enter the BIOS Reset BIOS parameters...
  • Page 7 You can open the driver installation program in the CD-ROM to quickly install the onboard network adapter, sound card, and chipset drivers. You can also visit the official website of Colorful (http://www.colorful.cn), search for the product model, and find the corresponding driver in the technical support list to download. The onboard LAN Driver can also be downloaded by scanning the QR code below.
  • Page 8 Road, Meidu Community, Meilin Street, Futian District, Shenzhen Copyright and Notice: The copyright of this motherboard manual belongs to Colorful. Colorful does not guarantee the complete accuracy of the content of this manual. In case of any ambiguity caused by typographical or language errors, Colorful reserves the right to final interpretation and modification.
