Prestige APSRS Quick Installation Manual

1 3 5 7
2 4 6 8
1 Red/Black
Ignition 3 Flex Relay (87) Input
2 Pink
Ignition 3 Flex Relay (30) Output
3 Yellow
Starter Output (+)
4 Green Ignition 2 Output (+)
P
5 Red Battery 12V Input (+)
6 Red/White Battery 12V Input (+)
7 Purple Accessory Output (+)
P
8 Blue
Ignition 1 Input / Output (+)
Replacement Part #4120458
1 3
2 4
1 White Parking Light (30) Output
2 White/Red
Parking Light (87) Input
3 Yellow/Black
Ignition Output to Alarm (+)
4 Black
Ground Input (-)
Replacement Part #4120463
1
White Data RX
2 Black Ground (-)
3 Blue Data TX
4 Red Battery 12V (+)
Not Included
For Complete Installation Guide and Technical Support Visit www.voxxuniversity.com. Or Call 1-800-225-6074
Remote Start w/Keyless Entry
P
1
2
Replacement Part #4360832
3
4
1 2 3 4
1
Green Data RX
2
Blue Data TX
3 Black
Ground (-)
4 Red
Battery 12V (+)
Not Included
1 2 3 4
1 Blue
2 White
3 Black
4 Red
Not Included

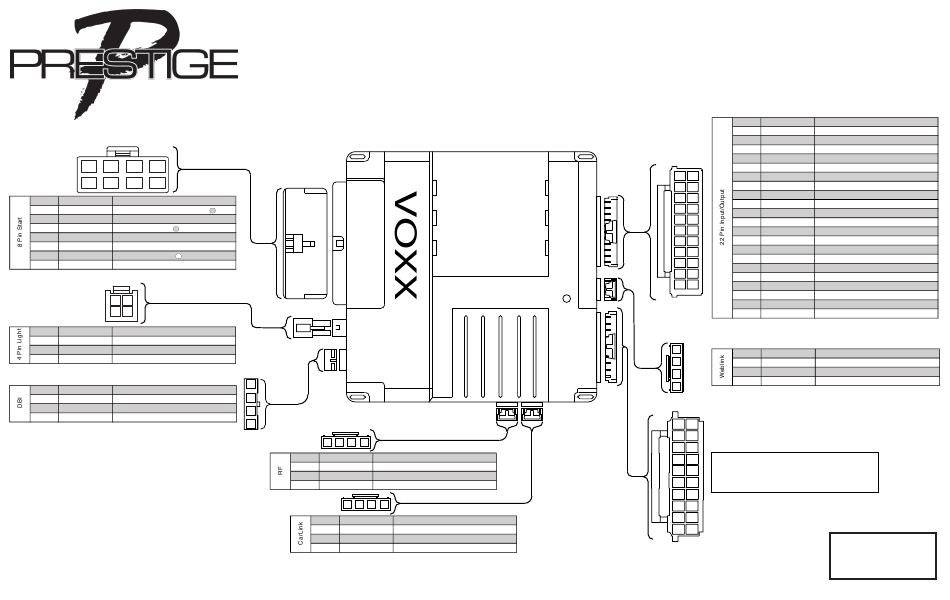

APSRS
System Layout
FLCART Dock
Data TX
Data RX
Ground (-)
Battery 12V (+)
Green
22 Unlock Output (-) (NOC 11)
21 Dk. Blue Trunk Output (-) (NOC 9)
20 Red Lock Output (-) (NOC 10)
19 Green/Lt. Blue Ch. 4 AUX Output (-) (NOC 8)
18 Black/White Horn Output (-)
17 Lt. Blue/Green Ch. 5 AUX Output (-) (NOC 7)
21 22
16 Red/Black 2nd Unlock Output (-) (NOC 12)
Black/Lt. Green
19 20 15 Factory Arm Output (-) NOC 6)
14 Brown/Black Brake Input (+)
17 18
13 Black/Blue Factory Disarm Output (-) (NOC 5)
15 16
12 Dk. Blue/Black External Activation Input (-)
13 14
11 Black/Red Pulse After Shutdown Output (-) (NOC 4)
11 12
10 Orange/Black Parking Brake Input (-)
9 10 9 Black/Yellow Pulse During Crank Output (-) (NOC 3)
8 Green/Yellow Diesel Glow Plug Input (+)
7 8
7 Green/White DomeLight Output (-) (NOC 2)
5 6
6 Purple/Brown Door Trigger Input (- / +)
3 4
5 Lt. Blue Remote Start Status Output (-) (NOC 1)
1 2
4 Green/Orange Tach Input (-)
3 Gray/Black Hood Input (-)
2 Lt. Green Trunk Trigger Input (-)
1 Orange Starter Kill Relay / Anti-Grind Output (-)
4
4 Red Battery 12V (+)
3
3 Black
Ground (-)
2
White Data RX
2
1
Blue Data TX
1
19 20
17 18
15 16
This Harness is included with the FLCART.
13 14
For Wire Information and Diagram Please Refer to Vehicle
11 12
Specific FlashLogic Install Guide.
9 10
Visit www.FlashLogic.com for More Information.
7 8
Not Included
5 6
3 4
1 2
Compatible RF Kits
PE1BZ
PE1BZLR
PE1BTWZ
PE5BZ
2018 Voxx Electronics. All Rights Reserved.
Replacement Part #4120457
Not Included
PE2LEDZ
PE2LCDZ
PE1M2LEDZ
PE1M2LCDZ
