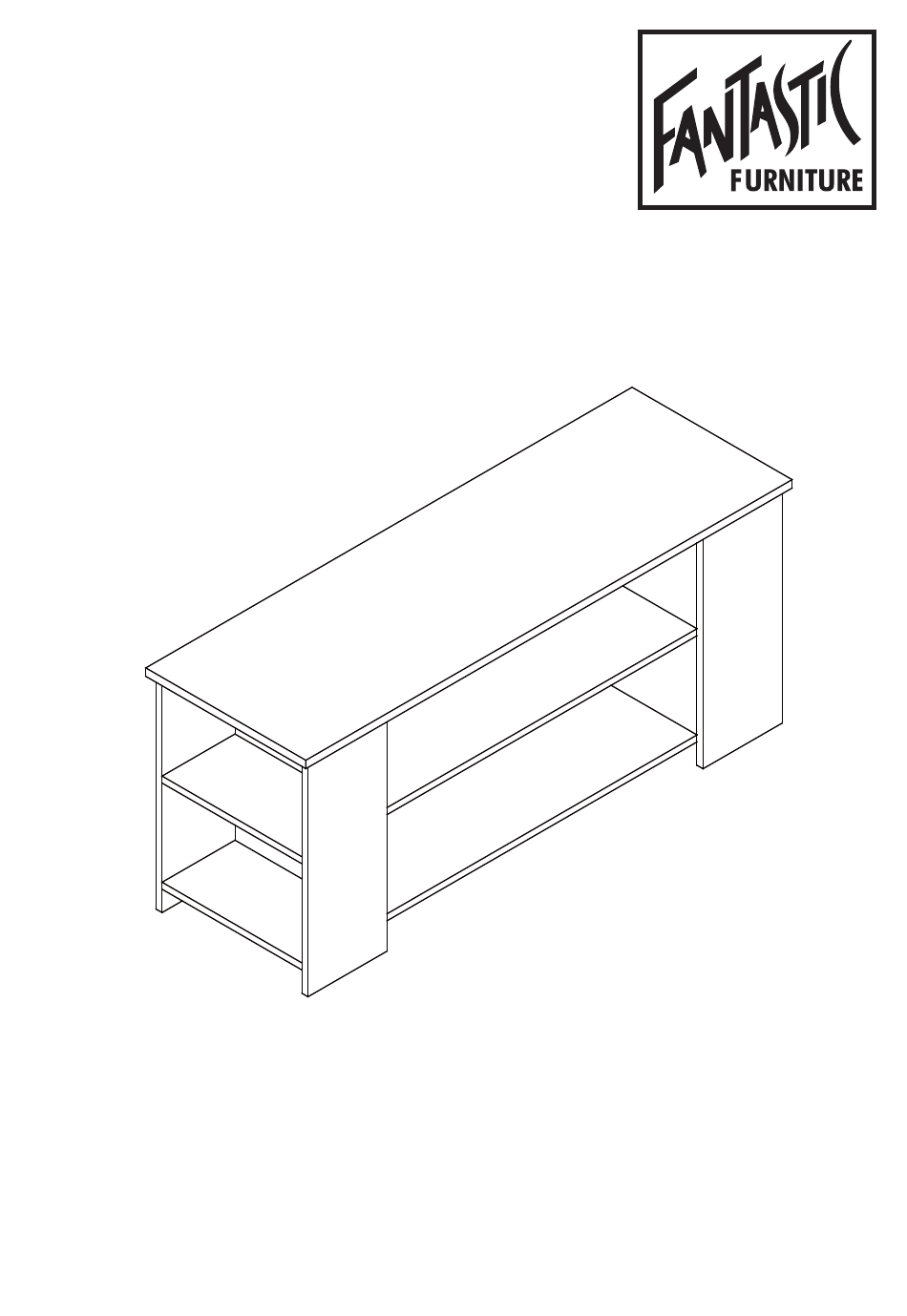

Version 1.0
COMO
TV Stand
www.fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture COMO TV Stand

Summary of Contents for fantastic furniture COMO TV Stand

  • Page 1 Version 1.0 COMO TV Stand www.fantasticfurniture.com.au...
  • Page 2 Enjoy Your purchase from Australia’s Best Value Furniture Store www.fantasticfurniture.com.au PAGE 2...

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.

  • Page 4: What You Need

    What you need to assemble the product DO NOT USE Other tools you need Flat head screwdriver; Phillips head Top Panel screwdriver; Hammer; (P1) Divider (P5) Left Side Panel (P3) Divider Shelf Panel Divider (P5) Right (P2) (P5) Side Panel (P4) Right Divider...
  • Page 5 Step 1 You will need 8 x Cam Bolts Phillips head (H2) screwdriver (P1) Attach 8 x Cam Bolts (H2) into Top Panel (P1). Tighten Cam Bolts using a Phillips head screwdriver. Step 2 You will need 16 x Cam Bolts Phillips head (H2) screwdriver...
  • Page 6 Step 3 You will need (P2) 4 x Cam Nuts Flat head (H3) screwdriver (P3) This is how a cam nut works ..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 7 Step 5 (P2) You will need Flat head 4 x Cam Nuts screwdriver (H3) (P3) (P4) Insert 4 x Cam Nuts (H3) into the holes of Shelf Panel (P2) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Side Panels (P3, P4) to Shelf Panel (P2), then tighten the cam nuts using a Flat head screwdriver.
  • Page 8 Step 7 (P4) You will need (P5) 8 x Cam Nuts 8 x Dowels (P3) (H3) (H1) Flat head screwdriver (P5) (P2) Insert 8 x Dowels (H1) into Dividers (P5). Insert 8 x Cam Nuts (H3) into the holes of Shelf Panel (P2) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts.

  • Page 9: Job Complete

    Step 9 (P1) You will need Flat head 8 x Cam Nuts screwdriver (H3) (P4) (P4) (P3) Insert 8 x Cam Nuts (H3) into the holes of Side Panels (P3, P4). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Top Panel (P1) and tighten the cam nuts using a Flat head screwdriver.
