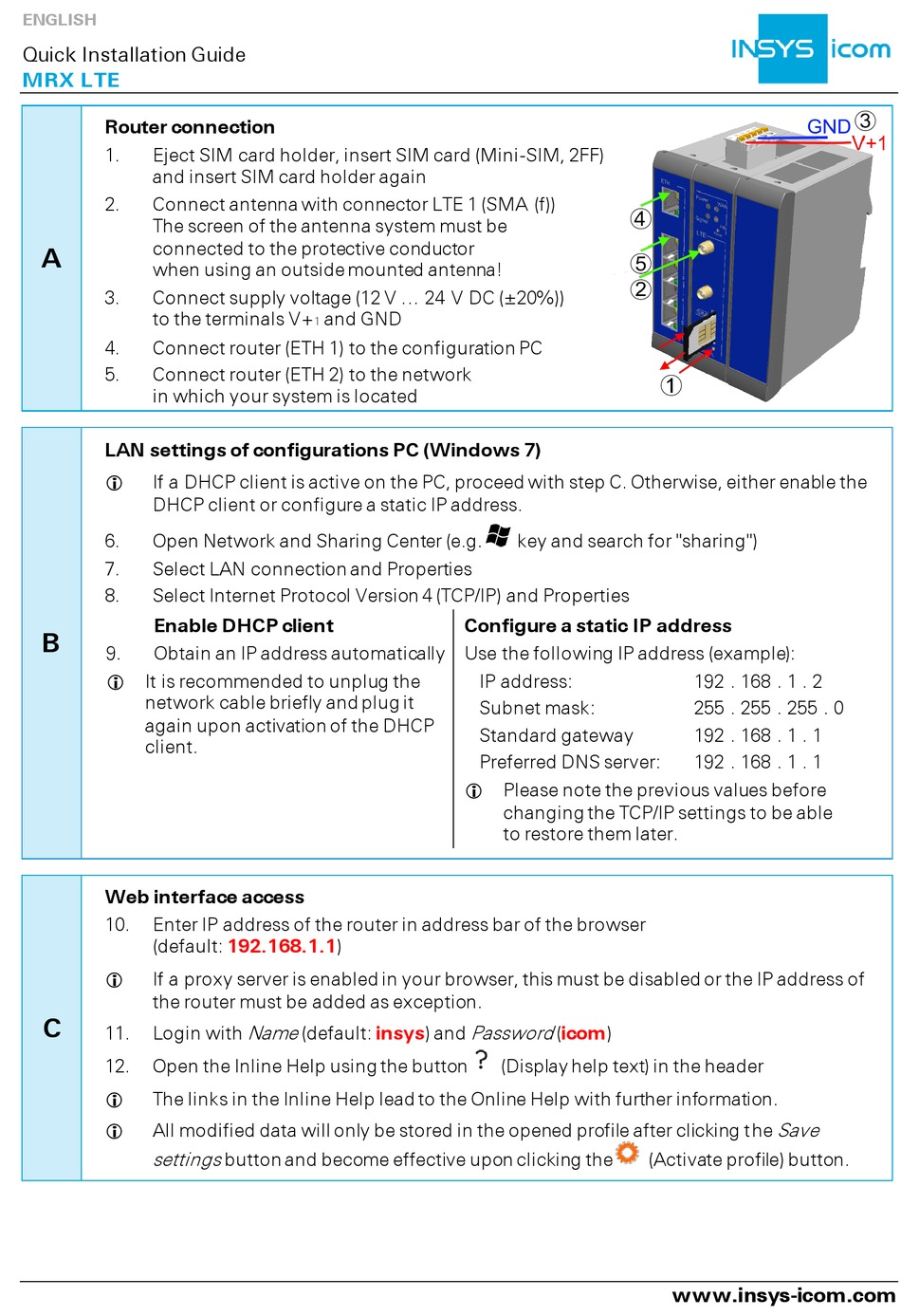

Quick Installation Guide
MRX LTE
Router connection
1.
Eject SIM card holder, insert SIM card (Mini-SIM, 2FF)
and insert SIM card holder again
2.
Connect antenna with connector LTE 1 (SMA (f))
The screen of the antenna system must be
connected to the protective conductor
A
when using an outside mounted antenna!
3.
Connect supply voltage (12 V ... 24 V DC (±20%))
to the terminals V+
4.
Connect router (ETH 1) to the configuration PC
5.
Connect router (ETH 2) to the network
in which your system is located
LAN settings of configurations PC (Windows 7)
If a DHCP client is active on the PC, proceed with step C. Otherwise, either enable the
DHCP client or configure a static IP address.
6.
Open Network and Sharing Center (e.g.
7.
Select LAN connection and Properties
8.
Select Internet Protocol Version 4 (TCP/IP) and Properties
Enable DHCP client
B
9.
Obtain an IP address automatically
It is recommended to unplug the
network cable briefly and plug it
again upon activation of the DHCP
client.
Web interface access
10.
Enter IP address of the router in address bar of the browser
(default: 192.168.1.1)
If a proxy server is enabled in your browser, this must be disabled or the IP address of
the router must be added as exception.
C
11.
Login with
12.
Open the Inline Help using the button
The links in the Inline Help lead to the Online Help with further information.
All modified data will only be stored in the opened profile after clicking the
settings
and GND
1
Name
(default: insys) and
button and become effective upon clicking the
key and search for "sharing")
Configure a static IP address
Use the following IP address (example):
IP address:
Subnet mask:
Standard gateway
Preferred DNS server:
Please note the previous values before
changing the TCP/IP settings to be able
to restore them later.
Password
(icom)
(Display help text) in the header
192 . 168 . 1 . 2
255 . 255 . 255 . 0
192 . 168 . 1 . 1
192 . 168 . 1 . 1
Save
(Activate profile) button.
