Summary of Contents for ATCOM Nimbus CQ400
- Page 1 CQ400 User Guide...
-
Page 2: Table Of Contents
Content Contents Contact CQ Simple ................4 Contact Sales ................4 Overview of CQ400 ..............5 Interface ................6 Hardware ................6 Software ................6 Network ................7 Management and Maintenance ............7 Protocol ................7 Compliant and Certified Standard ............. 8 Packing list ................. - Page 3 Multiple line dial-up ..............22 Call Hold ................23 Call Transfer ................23 Mute calls ................24 3-Way Conference ..............24 Hang up the phone ..............24 3.10 Voicemail ................25 4. Keypad and GUI ................25 4.1 Starting ................25 4.2 Standby .................25...
-
Page 4: Contact Cq Simple
Contact CQ Simple Contact Sales Address 5113 Eastman Ave Suite125 Midland, MI 48640 855-344-2774 E-mail kim@cqsimple.com Contact Technical Support 855-344-2774 E-mail support@cqsimple.com... -
Page 5: Overview Of Cq400

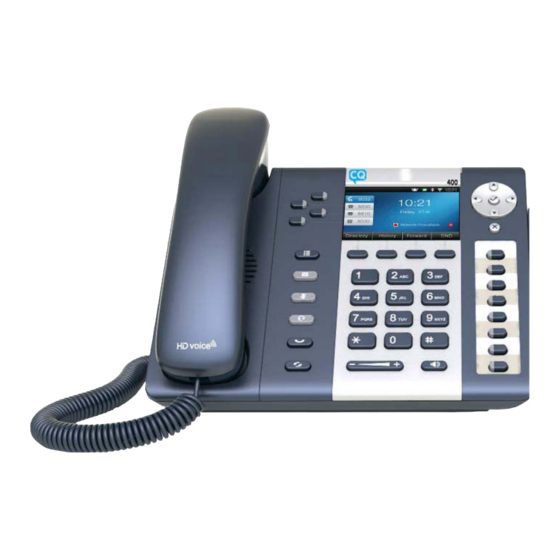

Overview of CQ400... -
Page 6: Interface
1.1 Interface Power Input DC 5V-2000mA or PoE LAN Port RJ45 PC Port RJ45 EXPAN Port RJ45 Headset Jack Handset Jack 1.2 Hardware 461*278 4.3” TFT FLASH CQ400 262MHz Dual-Core CQ400 393MHz Dual-Core 1 Status Light , 4 line indicators, 8 BLF indicators, 1 voicemail LED Indicator indicator, 1 headset indicator, 1 mute indicator 1.3 Software... -
Page 7: Network
Call transfer, Call forward, 3-way conference, Call hold, Call back DND(Do Not Disturb), Auto answer, Blacklists, Block Call-ID, Block Anonymous call, Dial plan, IP call Phone book with 200 records, 200 answered calls, 200 missed calls, 200 dialed calls ... -
Page 8: Compliant And Certified Standard
DHCP: Dynamic Host Configuration Protocol SIP RFC3261, RFC3262, RFC3263, RFC3264, RFC3265, RFC2543, RFC3489, RFC3842, RFC3515, RFC2976, RFC3428, RFC2327, RFC2782, RFC1889 TCP/IP: Transfer Control Protocol/Internet Protocol RTP: Real-time Transport Protocol RTCP:RTP Control Protocol DNS: Domain Name Server ... -
Page 9: Installation
1.9 Installation The CQ400 is able to be connected with network via LAN port. Under the Bridge mode, other devices (Laptop, CQ400) is able to access network via the PC port of CQ400. 1. Stand bracket installation instruction A. Put the bottom side of the CQ400 upside and press one-side joints of stand bracket into the slot, please refer the picture as below B. - Page 10 C. Disassemble the stand bracket: Push the spring joint of stand and pull the stand according to the direction of the arrow. When the joints are pulled out of the slot, you can take off the stand bracket...
- Page 11 2. Wiring instruction Plug in the power adapter, cable and handset or headset to the corresponding ports as below picture and press them to the slots on the stand bracket.
- Page 12 DESI Strips Instructions Step1. Use needle or some other tools to insert into the hole of the plastic sheet, press up on the plastic sheet. Step2. Lift out the plastic sheet Step3. Take off the plastic sheet Step4. Use needle or some other tools to insert into the edge of the paper strip, press up and lift out.
-
Page 13: Cq400 Keypad
2. CQ400 Keypad Line keys Navigation Cancel Menu Soft Key Soft Keys Voicemail Memory Key Mute Dial pad Headset Headset Hold Hold Redial Redial... -
Page 14: Description Of Buttons And Screen
2.1 Description of Buttons and Screen Soft Keys Press to select a function which displayed at the soft key zone of screen Display all optional functions at the last line of LCD screen Status Indicator Indicates the phone’s status. LCD Screen All information such as date, time, phone number, incoming caller’s ID (if available), line/call status, extension numbers and the soft key features are... - Page 15 If the call is muted, the mute LED is lighted in red. To un-mute, press the Mute button again. Pick up and hung up under headset mode. The LED button will be lighted when talking in headset mode. Check the Voicemail status. The LED button will be lighted when there is a new message.
-
Page 16: Line Keys
2.2 Line Keys LED Status Description The line is idle or disabled for register Blink in green at 120ms off, 120ms on The line has an incoming call Green The line is talking Blink in red at 600ms off, 600ms on The line is held 2.3 Status Indicator LED Status... -
Page 17: Lcd Screen Icons
2.5 LCD screen icons Icon Description The extension is registered The extension is unregistered There is a new voice mail CQ400 is dialing CQ400 is talking CQ400 is calling There is an incoming call The call is held CQ400 is in speaker mode CQ400 is in handset mode CQ400 is in headset mode CQ400 is in conference... -
Page 18: Call Functions
3. Call Functions 3.1 Answer the calls A. Answer by handset Pick up the handset and talk with the caller. If you want to hang up, just put back the handset. When you are talking with the handset and want to switch to speaker or headset mode, please press key or key, and then put down the handset. -
Page 19: Make Calls
3.2 Make Calls A. Use the handset Pickup the handset, the LCD will show the current lines (user is able to switch from line1 to line6 by pressing the line key beside the LCD). Press soft key "Send" to dial the number. When you hear the tones of “du~~du~~”... -
Page 20: Pre-Dial
3. Pick up the handset, press and enter “Directory”, then find the contact person and press “Dial” soft key. E. Dial from call history 1. Press key to enter the menu and choose “History” option, then select one of call history entry, and press "Dial"... -
Page 21: Call Hold
3.5 Call Hold Place a call on hold by pressing the soft key “Hold” or ,and the held call will be resumed after pressing soft key “Resume” or or the corresponding line key. Even on 3-way conference calling, the conference will be held after pressing “Hold” key, and be resumed to 3-way conference after pressing “Hold”... -
Page 22: Mute Calls
Setup BLF list with blind transfer functions on Webpage: “Phone”→“Features”→”Transfer Settings”→”Transfer Mode via DSS Key (Blind Transfer” 3.7 Mute calls The input audio will be not transmitted to peer phone after pressing key, and the phone will be muted even switched among different modes of speaker, handset and headset. To un-mute, just press key again. -
Page 23: Voicemail
3. Speaker hang up Press key at speaker model, the current calling will be hung up. 4. Headset Hang up Press key at headset model, the current calling will be hung up. 5. Hang up one line call Press the hook to hang up the current calling when 2 calls happened simultaneously. 3.10 Voicemail CQ400 has a key for entering voicemail box and indicating new voicemail. - Page 24 Area Item Description Status: to indicate the call status Time Background Softkey：“History”，“Directory”，“Forward”，“DND” Indication info：DND (on)、Missed calls, Call Forward (on) and Network Status (unavailable). Time, Date Programmable keys (Line Keys in default) Icon on Standby UI Icon Description The account is registered successfully, and displayed in the Area 7. The account is not registered successfully, and displayed in the Area The line is being occupied for dialing, and displayed in the Area 7.
- Page 25 Call Forward is activated and displayed in the Area 1. New Voicemail and displayed in the Area 1. Volume set at “0”，and displayed in the Area 1. Auto-Answer is activated and displayed in the Area 1. DND is activated and displayed in the Area 1.
