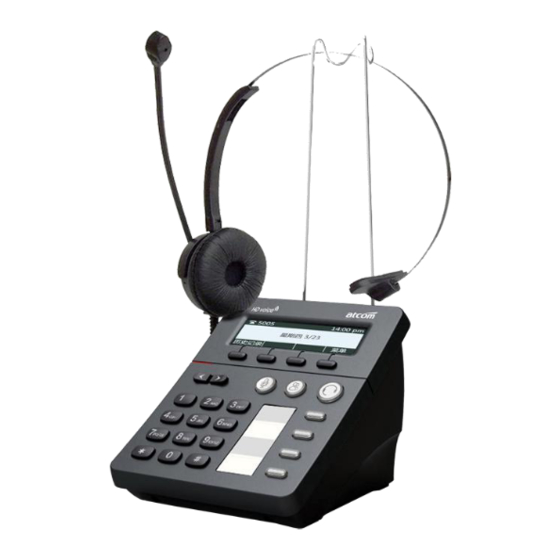

- Page 1 CT1X Quick Start Guide Version：2.0 2017-3-7...
- Page 2 CT1X Quick Start Guide Content 1、 Installation and access......................... 错误！未定义书签。 1.1 Connection..........................错误！未定义书签。 1.2 Connect the headset.......................错误！未定义书签。 1.3 Check IP address........................错误！未定义书签。 1.4 Enter the Setting of telephone....................错误！未定义书签。 2、 Quick Configuration........................错误！未定义书签。 2.1 Network Configuration......................错误！未定义书签。 2.2 Account Configuration.............................7 3、 Login indicator................................10...
-
Page 3: Installation And Access
CT1X Quick Start Guide 1. Installation and access 1.1 Connection 1) Power on 1. Plug in the power jack with DC 5V/1000mA 2. All led will be lighted once and then turn off 3. After absolute boot up, login led will be lighted in red and come into standby mode. - Page 4 CT1X Quick Start Guide 1.2 Connect the headset Connect the RJ9 headset to the headset jack on the left side of the phone, The pin sequence of RJ9 port on the phone is like following picture: 1.3 Check IP The phone uses DHCP mode by default, Please press “Menu”→“Status”...
- Page 5 CT1X Quick Start Guide 1.4 Enter the Setting of telephone Connect the PC and telephone in one network, input the IP address of telephone at a browser and press “Enter”, you will be required to input the username and password to access the web page.
- Page 6 CT1X Quick Start Guide to enter the web page of “Account Configuration”. 2.If chosen Static IP，user should input the IP address manually for the phone, click the button “Next” to enter the web page of “Static IP Address”. After IP address filled manually, click the button “Next” to enter the web page of “Account Configuration”, or click the button “Back”...
-
Page 7: Account Configuration
CT1X Quick Start Guide 2.2 Account Configuration The account configuration info will be saved to Line. - Page 8 CT1X Quick Start Guide Click the button “Finish” to save network configuration and account configuration, and click “Back” back to the previous web page. Account Configuration can be completed in below webpage: Via web “Account”→“Basic” 3. Login indicator Login indicator...
