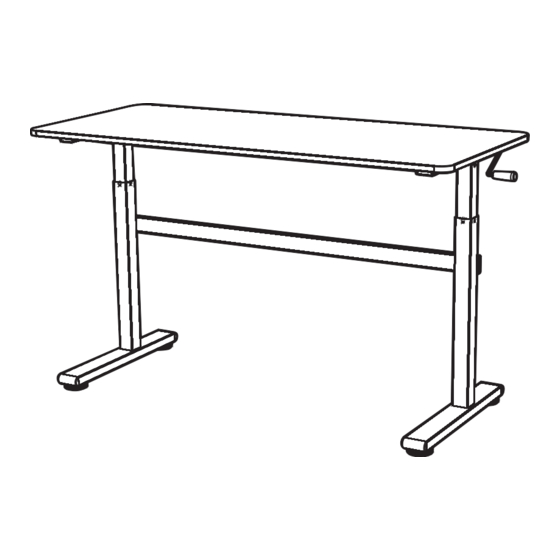

Vintage Brown / Black Crank 55" x 24"
Height Adjustable Desk
SKU: DESK-M55TN
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/desk-m55tb
help@vivo-us.com
www.vivo-us.com
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-M55TN
Summary of Contents for Vivo DESK-M55TN

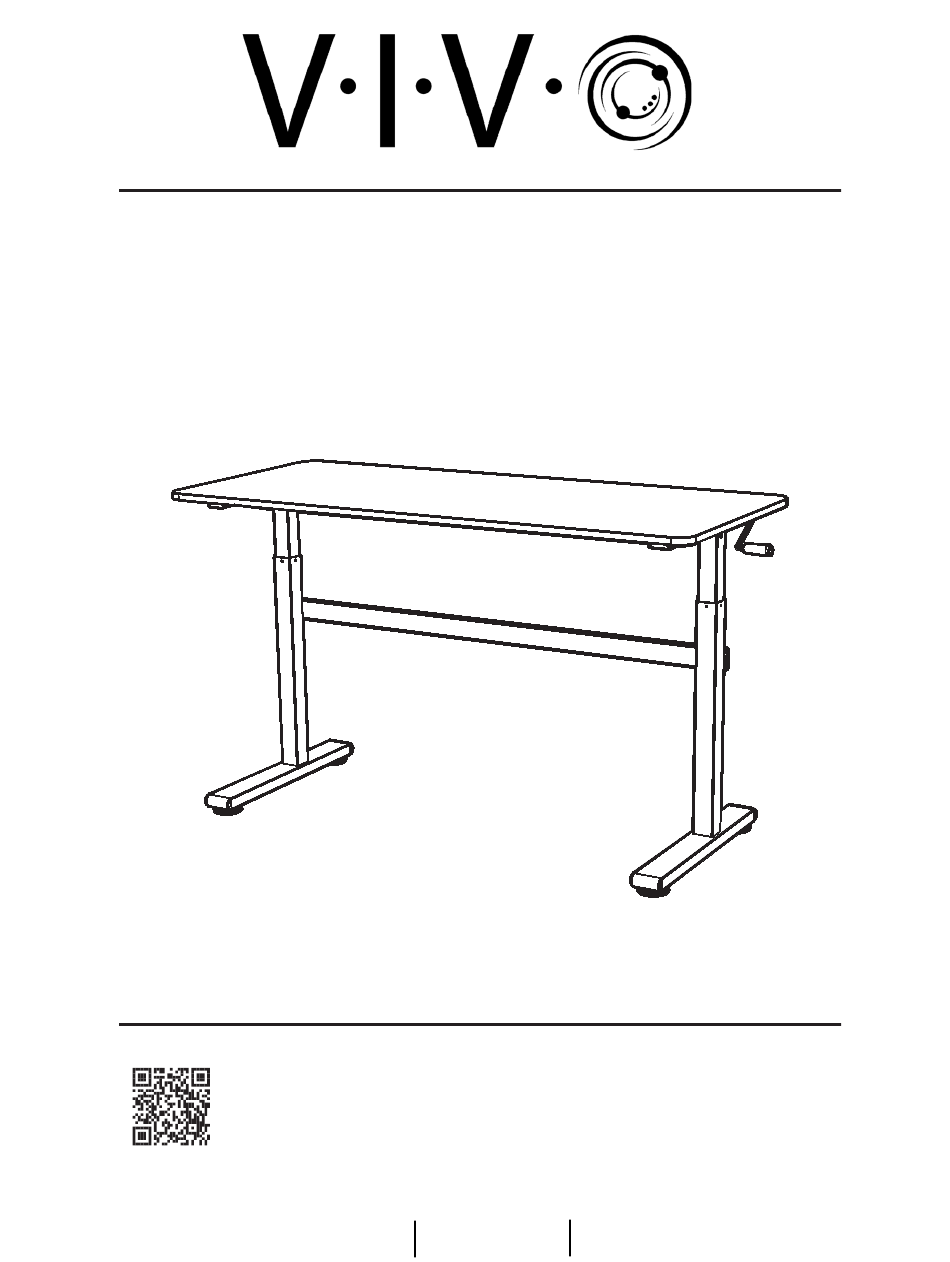

- Page 1 Vintage Brown / Black Crank 55” x 24” Height Adjustable Desk SKU: DESK-M55TN Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-m55tb...
- Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
-
Page 3: Electrical Warning
Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. -
Page 4: Tools Needed
TOOLS NEEDED: DIFFICULTY LEVEL Phillips Screwdriver Level Drill PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x2) B (x1) C (x1) D (x1) Lifting... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1: Install Sync Rod Stand up Lifting Columns (A) and insert Sync Rod (B) into the socket on each column. Use Crank (F) to align columns if needed. Lifting Column Sync Rod Crank STEP 2: Assemble Upper Crossbar Assemble Upper Crossbar (C) to the top of the columns using the M5x60mm Screws (S-C) and Lower Crossbar (D) to the back using M6x12mm Screws (S-A). - Page 6 STEP 3: Place Pads Remove adhesive backing from Pads (S-D) and place them on top of the assembled frame. STEP 4: Mount the Desktop Place Desktop (E) on top of the frame. Secure using the M6x35mm Screws (S-B) with M6 Washers (S-E), and tighten with a Phillips screwdriver.
- Page 7 STEP 5: Leveling the Frame Insert Crank (F) into the hex socket of the lifting column. Figure 1: Turn the crank to raise or lower the desk. Figure 2: Store the crank in the rear of the desk support bracket on the column as shown.
- Page 8 CAUTION! Do not exceed desk weight limit. Keep area of vertical motion free of obstacles. Keep weight on desk balanced for Leave enough slack in cables to correct operation and longer life of allow for full range of vertical components. motion.
-
Page 10: Cable Management
CHECK OUT OTHER GREAT PRODUCTS FROM EXPLORE MORE AT VIVO-US.COM We offer a wide array of home & office products to fit your needs. From height adjustable desks to monitor mounts to keyboard trays and more! SPEAKER MOUNTS CABLE MONITOR MANAGEMENT &... -
Page 11: Need Assistance
WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve you, our customer, to the best of our abilitiy. - Page 12 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 07/14/2022 REV1.1LF...
