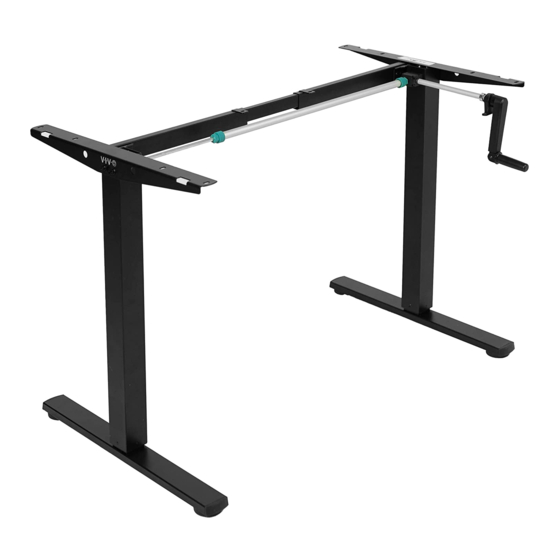

Black Compact Crank Height Adjustable Desk Frame
SKU: DESK-M051MB
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/desk-m051mb
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-M051MB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-M051MB

Summary of Contents for Vivo DESK-M051MB

  • Page 1 Black Compact Crank Height Adjustable Desk Frame SKU: DESK-M051MB Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-m051mb www.vivo-us.com help@vivo-us.com...
  • Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...

  • Page 3: Electrical Warning

    Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense.

  • Page 4: Package Contents

    TOOLS NEEDED: DIFFICULTY LEVEL Phillips Screwdriver Level Drill PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x1) B (x1) C (x1) D (x2) Telescopic...

  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1: Extend the Crossbar Loosen the screws on Telescopic Crossbar (A) using 4mm Allen Wrench (T-B) and extend the sides. 4mm Allen Telescopic Wrench Crossbar STEP 2: Install the Crossbar to Legs Attach Telescopic Crossbar (A) to Leg (B) and Leg with Gearbox (C) using M6x25 mm Screws (S-A).
  • Page 6 STEP 3: Mount Side Brackets Assemble Side Brackets (D) to the frame assembly using M6x10mm Screws (S-B) and 5mm Allen Wrench (T-C). 5mm Allen Side Bracket M6x10mm Screw Wrench STEP 4: Assemble Feet Mount Feet (E) to Leg (B) and Leg with Gearbox (C) using M6x35mm Screws (S-C) and 4mm Allen Wrench (T-B).
  • Page 7 STEP 5: Adjust Frame Length Extend Telescopic Crossbar (A) to fit the desktop. Retighten the screws on Telscopic Crossbar (A) using 4mm Allen Wrench (T-B). 4mm Allen Wrench STEP 6: Attach Desktop Secure the frame assembly to the desktop using ST4.2x15mm Screws (S-E) and a Phillips screwdriver.
  • Page 8 STEP 7: Install the Sync Rod Loosen the knob on Sync Rod (F) and insert the rod into Leg (B). Extend Sync Rod (F) onto Leg With Gearbox (C). Tighten both knobs on Sync Rod (F) using Wrench (T-D). Wrench Sync Rod...

  • Page 9: Step 9: Adjusting The Height

    STEP 8: Mount the Crank Loosen the set screw on Crank Handle Sync Rod (H) using 2.5mm Allen Wrench (T-A) to extend the rod into Leg With Gearbox (C). Assemble Crank Handle (G) to Crank Handle Sync Rod (H) making sure Crank Handle Sync Rod (H) sits inside of the recess on the plastic mounting bracket on Crank Handle (G).
