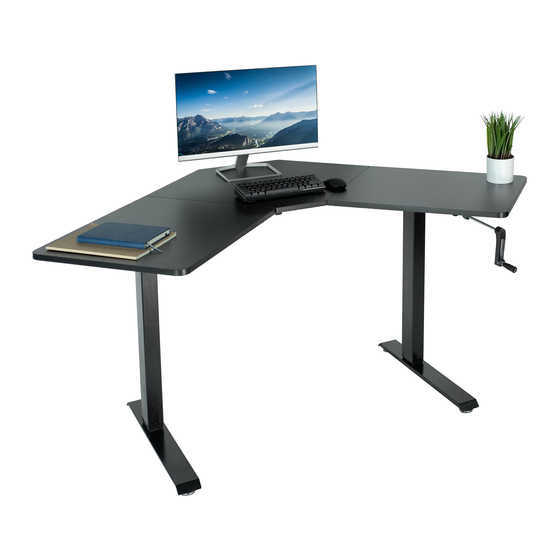

Black 47" x 47" Corner Manual Height Adjustable Desk
Instruction Manual
SKU: DESK-M2LCB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-m2lcb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-M2LCB
Summary of Contents for Vivo DESK-M2LCB
- Page 1 Black 47" x 47" Corner Manual Height Adjustable Desk Instruction Manual SKU: DESK-M2LCB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-m2lcb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 Place Desktop Panel Set (A) upside down on a flat surface, then assemble using Wooden Dowels (S-C). Mount Connector Plates (B) with M5x16 Screws (S-A) and a Phillips screwdriver. STEP 2 Assemble Left Support Bar (C) to Left Leg (E) and Right Support Bar (D) to Right Leg (F) using M8x47 Screws (S-D).
- Page 4 STEP 3 Attach Left Side Bracket (G) to Left Leg (E) and Right Side Bracket (H) to Right Leg (F) using M6x10mm Screws (S-F). Tighten with 4mm Allen Wrench (T-B). STEP 4 Attach Support Bar Connector (I) to Left Support Bar (C) and Right Support Bar (D) using M6x8 Screws (S-B) and 4mm Allen Wrench (T-B).
- Page 5 STEP 5 Install Feet (J) on the legs as shown using M6x35 Screws (S-E) and 5mm Allen Wrench (T-C). Screw Foot Pads (K) into Feet (J). STEP 6 Loosen the nut on Sync Rod (L) and insert the hex rod end into Left Leg (E).
- Page 6 STEP 7 Insert Crank Handle (M) into Right Leg (F) then mount Crank Handle (M) to Right Side Bracket (H) using M6x8 Screws (S-B) and 4mm Allen Wrench (T-B). Insert Anti-Vibration Pads (S-G) into Left Side Bracket (G), Right Side Bracket (H) and Support Bar Connector (I). STEP 8 Mount desk frame assembly and Cable Tray (N) to predrilled holes in the desktop assembly using M5x16 Screws (S-A) and a Phillips screwdriver.
- Page 7 STEP 9 Carefully turn the desk right side up and adjust the height using Crank Handle (M). If necessary, adjust foot pads (K) to level the desk. CAUTION! Do not exceed desk Keep area of vertical Keep weight on desk Leave enough slack in weight limit.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
