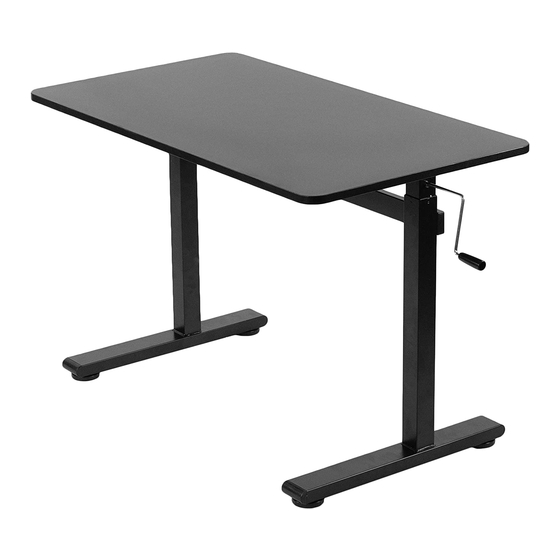

Black 43" x 24" Manual Height Adjustable Desk
Instruction Manual
SKU: DESK-M43TB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-m43tb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo DESK-M43TB
Summary of Contents for Vivo DESK-M43TB
- Page 1 Black 43” x 24” Manual Height Adjustable Desk Instruction Manual SKU: DESK-M43TB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-m43tb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach side Brackets (B) to Lifting Columns (A) using M6x30 Bolts (S-D). Stand up the lifting columns (A) and insert the sync rod (C) into the socket on each column. Use the crank (G) to align columns if needed. - Page 4 STEP 2 Assemble the upper crossbar (D) to the top of the columns using the M5x60 bolts (S-C) and the lower crossbar (E) to the back using M6x12 bolts (S-A). Tighten all bolts using the Allen wrench (S-G).
- Page 5 STEP 3 Apply the silicone pads (S-E) to the top of the assembled frame as shown.
- Page 6 STEP 4 Place the desktop (F) on top of the frame. Secure using the M6x35 bolts (S-B) with D6 washers (S-E), and tighten with a Phillips screwdriver.
- Page 7 STEP 5 Insert the crank (G) into the hex socket of the lifting column. Figure 1: Turn the crank to raise or lower the desk. Figure 2: Store the crank in the rear of the side bracket (B) as shown. Figure 3: Turn the foot pads to adjust the desk level.
