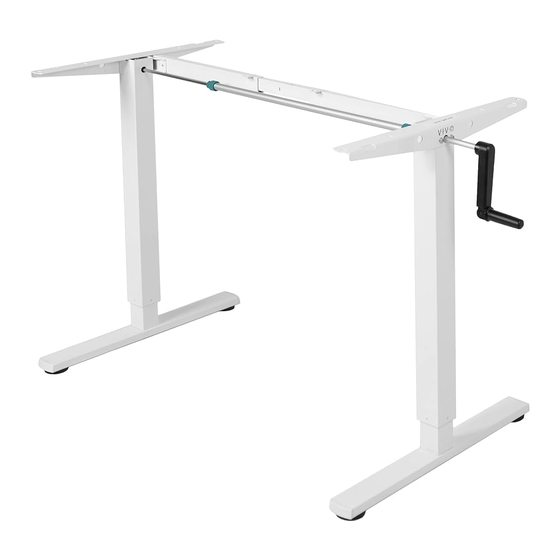

White Compact Crank Height Adjustable Desk Frame
Instruction Manual
SKU: DESK-M051CW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-m051cb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-M051CW
Summary of Contents for Vivo DESK-M051CW
- Page 1 White Compact Crank Height Adjustable Desk Frame Instruction Manual SKU: DESK-M051CW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-m051cb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Loosen the two set screws on the telescopic crossbar (A) using the Allen wrench (S-D) and slightly extend the crossbar. STEP 2 Loosen the pre-installed bolts on the left and right legs (C, D). Slide the legs into the ends of the telescopic crossbar (A), install an M6x12 bolt (S-A) to secure each leg to the crossbar, then tighten all bolts using the Allen wrench (S-D). - Page 4 STEP 3 Assemble the side brackets (B) to the legs (C, D) using x4 M6x12 bolts (S-A) and tighten with the Allen wrench (S-D). STEP 4 Adjust the frame length to suit the desktop, making sure the distance between the edge and side bracket is no more than 2.75”...
- Page 5 STEP 5 Loosen the knobs on the sync rod (E) and extend the hex shafts into the legs. Retighten the knobs, then insert the crank (G) into the leg on either side. STEP 6 Drill 3/8” (10mm) deep pilot holes using a 3/32” (or 3mm) drill bit. Secure the frame to the desktop using 3/4”...
- Page 6 STEP 7 Assemble the feet (F) to the columns using M6x16 bolts (S-B) and the Allen wrench (S-D). STEP 8 Carefully turn the desk right-side up and adjust foot pads to level if necessary. Turn the crank to raise or lower the desk.
- Page 7 CAUTION! Do not exceed desk weight limit. Keep area of vertical motion free of obstacles. Keep weight on desk balanced for Leave enough slack in cables to correct operation and longer life of allow for full range of vertical components. motion.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
