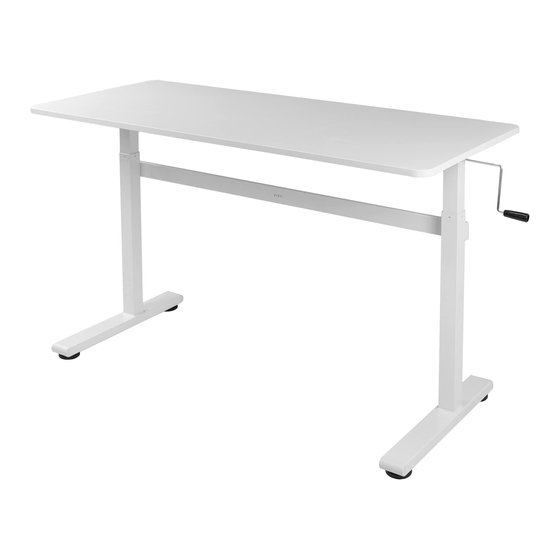

Crank 55" x 24" Height Adjustable Desk - White Instruction Manual SKU: DESK-M55TW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-m55tw GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
Page 2
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
Page 3
ASSEMBLY STEPS STEP 1 Stand up the lifting columns (A) and insert the sync rod (B) into the socket on each column. Use the crank (F) to align columns if needed. STEP 2 Assemble the upper crossbar (C) to the top of the columns using the M5x60mm bolts (S-C) and the lower crossbar (D) to the back using M6x12mm bolts (S-A).
Page 4
STEP 3 Apply the pads (S-D) to the top of the assembled frame. STEP 4 Place the desktop (E) on top of the frame. Secure using the M6x35mm bolts (S-B) with D6 washers (S-E), and tighten with a Phillips screwdriver.
Page 5
STEP 5 Insert the crank (F) into the hex socket of the lifting column. Figure 1: Turn the crank to raise or lower the desk. Figure 2: Store the crank in the rear of the desk support bracket on the column as shown. Figure 3: Turn the foot pads to adjust the desk level.
Page 7
CAUTION! Do not exceed desk weight limit. Keep area of vertical motion free of obstacles. Keep weight on desk balanced for Leave enough slack in cables to correct operation and longer life of allow for full range of vertical components. motion.
Page 8
