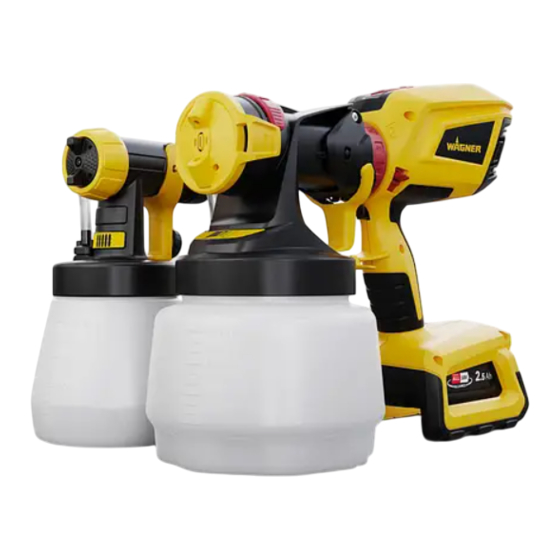

- Page 1 UNIVERSAL SPRAYER W 600 FLEXIO 18V TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS wagner-group.com...
- Page 2 W 600 Flexio 18V OVERVIEW...
- Page 3 W 600 Flexio 18V click I = ON 0 = OFF...
- Page 4 W 600 Flexio 18V ...
- Page 5 W 600 Flexio 18V 5-15 cm 20-30 cm ...
- Page 6 W 600 Flexio 18V ...
- Page 7 W 600 Flexio 18V...
- Page 8 SPARE PARTS MANY THANKS FOR PLACING YOUR TRUST IN US We would like to congratulate you on purchasing this brand product from Wagner; we are sure that you will enjoy working with it greatly. Please read the Operating Manual carefully and observe the safety information before starting the device.
-
Page 9: Table Of Contents
W 600 Flexio 18V Contents 1. Explanation of symbols used ........... . .9 2. -
Page 10: General Power Tool Safety Warnings
W 600 Flexio 18V Indicates tips for use and other particularly useful information. Wear suitable eye protection while working. Wear a suitable mask while working. 2. General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. - Page 11 W 600 Flexio 18V e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 12 W 600 Flexio 18V c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
-
Page 13: Safety Instructions For Spray Guns
W 600 Flexio 18V f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. -
Page 14: Safety Instructions For The Charger And Battery
• Do not lay the spray gun. With original WAGNER accessories and spare parts, you have the guarantee that all safety regulations are fulfilled. 4. Safety instructions for the charger and battery Only use the tool with BOSCH POWER FOR ALL compatible PBA 18V batteries with at least 2.5 Ah and suitable chargers. -
Page 15: Description/ Scope Of Delivery
W 600 Flexio 18V • Never service damaged batteries. All maintenance of batteries should only be carried out by the manufacturer or authorised service centres. • Protect the battery from heat, e.g. also from permanent sunlight, fire, dirt, water and moisture. There is a risk of explosion and short circuit. -
Page 16: Preparation Of The Workplace (For Interior Wall Paint)
W 600 Flexio 18V Coating Materials Suitable for Use Spray attachment Level Low-viscosity coating substances: Low-viscosity coating substances: Standard Water- and solvent-based paints, finishes, primers, 2-component paints, clear finishes, automotive finishes, staining sealers and wood sealer-preservatives. All coating materials with the red Perfect... -
Page 17: Preparation Of The Coating Material
W 600 Flexio 18V Insert the battery into the charger, the battery charging indicator (9) starts flashing. If the battery charge indicator lights up constantly when the battery is inserted, the battery is either fully charged or overheated and must first cool down. -
Page 18: Selecting The Spray Setting (Wall Extra I-Spray Spray Attachment)
W 600 Flexio 18V aid of the feed hopper included in the scope of supply (Fig. 1, 17). Screw the container tightly onto the spray gun. • Connect the front part with the rear part of the gun (Fig. 3). -
Page 19: Adjusting The Material Volume (Wall Extra I-Spray Spray Attachment)
W 600 Flexio 18V Fig. 8 A = vertical flat jet for horizontal surfaces Fig. 8 B = horizontal flat jet for vertical surfaces Fig. 8 C = circular jet for corners, edges and hard-to-reach surfaces 13. Adjusting the Material Volume (Wall Extra I-Spray spray attachment) The volume of material can be set by turning the material volume control (Fig. -
Page 20: Spray Technique
W 600 Flexio 18V 16. Spray Technique The spray result depends heavily on the smoothness and cleanliness of the surface to be sprayed. Therefore the surface should be carefully prepared and kept free of dust. • Cover all surfaces not to be sprayed. -
Page 21: Taking Out Of Operation And Cleaning
W 600 Flexio 18V • When processing 2-component varnishes, clean the device immediately. 18. Taking Out of Operation and Cleaning Proper cleaning is the prerequisite for problem-free operation of the paint application device. No warranty claims are accepted in case of improper or no cleaning. -
Page 22: Cleaning The Standard Spray Attachment
W 600 Flexio 18V Assembly Attention! Never operate the device if the nozzle seal is either damaged or missing. If the nozzle seal is either missing or damaged liquids can enter the device and increase the risk of an electric shock. -
Page 23: Maintenance
W 600 Flexio 18V 5) Insert the suction tube with container seal in the gun body. In order to mount the gun more easily apply lubricating grease (enclosed) liberally to the O-ring at the gun front part. (Fig. 24, 5) 21. - Page 24 W 600 Flexio 18V Spare Parts List Standard spray attachment (Fig. 24) Pos. Designation Order No. Standard spray attachment complete with 800 ml container 2361 730 Union nut 2362 873 Air cap 2362 877 Nozzle 2362 878 Nozzle seal 0417 706...
-
Page 25: Accessories
W 600 Flexio 18V 23. Accessories The CLICK&PAINT SYSTEM with additional spray attachments and accessories offers the right tool for each work. Further information about the WAGNER range of products for renovating is available under www.wagner-group.com 24. Correction of Malfunctions Problem... -
Page 26: Technical Data
W 600 Flexio 18V Problem Problem Cause Cause Remedy Remedy • • Too much fog of Distance to the object too large Reduce distance • • coating material Too much coating material Reduce the material (Overspray) applied volume • •... -
Page 27: Environmental Protection
W 600 Flexio 18V Information about the oscillation level The specified oscillation level has been measured according to a standard test procedure and can be used to compare against electric tools. The oscillation level is also for determining an initial assessment of the vibrational strain. - Page 28 W 600 Flexio 18V 3 + 1 year guarantee on this WAGNER DIY product In addition to the statutory warranty for this product, J. Wagner GmbH, based in 88677 Markdorf, Germany, grants you a guarantee (device guarantee) of 36 months for this product.
- Page 29 W 600 Flexio 18V UKCA Declaration of conformity We declare under sole responsibility that this product conforms to the following relevant regulations: Supply of Machinery (Safety) Regulations 2008 Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic...
