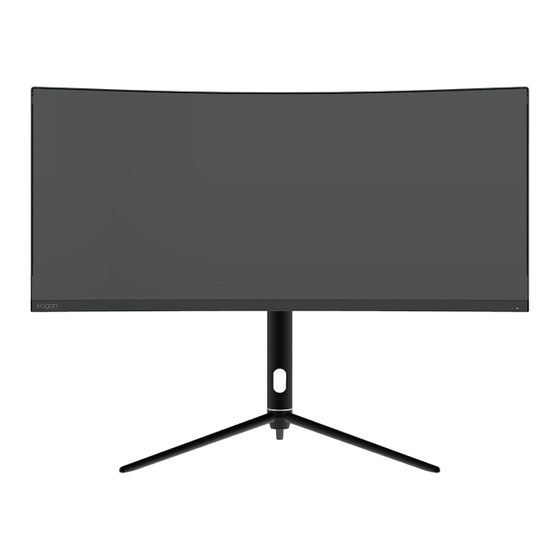

- Page 1 USER GUIDE 30" Curved Ultrawide 1ms FreeSync Gaming Monitor (2560 x 1080, 1500r, 200Hz, 21:9) KAMN30F2CULA...
-
Page 2: Table Of Contents
Safety & Warnings ••••••••••••••••••••••••••••••••••••••• Components ••••••••••••••••••••••••••••••••••••••••••••••• Overview ••••••••••••••••••••••••••••••••••••••••••••••••••••• Assembly •••••••••••••••••••••••••••••••••••••••••••••••••••• VESA Mount ••••••••••••••••••••••••••••••••••••••••••••••• Connectivity ••••••••••••••••••••••••••••••••••••••••••••••• Operation •••••••••••••••••••••••••••••••••••••••••••••••••• ECO Modes & Gameplus •••••••••••••••••••••••••••• Specifications •••••••••••••••••••••••••••••••••••••••••••••... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Read all instructions before using the appliance and retain for reference. This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them. Do not insert any object or spray any liquid into the vents. Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation. -
Page 4: Components
COMPONENTS Monitor Stand Stem Stand Base VESA connectors DP Cable Power Cable USER GUIDE 30" Curved Ultrawide 200Hz 1ms FreeSync Gaming Monitor KAMN30F2CULA Power Adapter User Guide... -
Page 5: Overview
OVERVIEW Controls Power button RGB Range/Exit Game Crosshair Mode/Down Menu/Enter Contextual Mode/Up Ports HDMI2.0 DP1.4 Power Input HDMI Input DisplayPort Input Audio Output... -
Page 6: Assembly
ASSEMBLY Hand Screw Quick release button... -
Page 7: Vesa Mount
VESA MOUNT Install VESA connectors the back of the monitor using the provided . Notes: To prevent the monitor on the mount from failing, please install it firmly and protect it fully. Do not place or hang any object on the mount, and the using height of the mount should be less than 2 meters. - Page 8 ADJUSTMENT 25° 25° Rotation angle ±25°(±2.0°) -5° 20° 115mm Tilting angle Height adjustment 115mm(±5mm) -5.0°(±2.0°)- +20°(±2.0°)
-
Page 9: Connectivity
CONNECTIVITY HDMI Connect the provided HDMI cable from the computer's HDMI port to the monitor's HDMI port. HDMI to DVI Connect an HDMI to DVI cable (not provided) from the monitor's HDMI port to the computer's DVI port. Note: Audio cannot always be transferred through a DVI port. DisplayPort Connect ta DisplayPort cable (not provided) from the computer's DisplayPort to the monitor's DisplayPort. - Page 10 Audio Out Connect an audio output device (speakers, headphones etc.) to the audio port on the monitor. The monitor may need to be set as the computer's default sound output device. Power Adapter Please connect the power adapter to the power cable, connect the power adapter plug to the corresponding power port of the monitor, and then connect the power cable to a properly grounded power outlet.
-
Page 11: Operation
OPERATION The color and shape of the OSD menu may be slightly di erent of shown. OSD menu may changed by function improvements. The On-Screen Display (OSD) menu allows you to adjust the monitor settings, turn on the monitor, and press any of the rocker buttons to display the navigation interface. 1. - Page 12 Functions of the monitor vary with models, and the functions in this manual are for reference only. Main Menu Sub Menu Option Standard Mode O /On RTS/RPG Mode O /On FPS Arena Mode O /On MOBA Arena Mode O /On Adaptive-Sync O /On Shadow Balance...
- Page 13 Functions of the monitor vary with models, and the functions in this manual are for reference only. Main Menu Sub Menu Option PIP/PBP Mode O /PIP Mode/PBP 2Win 1:1/PBP 2Win2:1/PBP 2Win1:2 Sub-Signal Source DP1/DP2/HDMI1/HDMI2 Audio Source Auto/DP1/DP2/HDMI1/HDMI2 PIP/PBP PIP Position Top Right/Top Le /Bottom Right/Bottom Le Small/Medium/Large PIP Size...
-
Page 14: Specifications
SPECIFICATIONS Product model KAMN30F2CULA Product name Liquid Crystal Display Screen size 30inch Aspect ratio 21:9 Viewing angle 178°(H) / 178°(V) Contrast ratio 3000:1(TYP) Color 16.7M Resolution 2560 x 1080 Refresh rate 200Hz 4.0A Power input The standard voltage and power supply may vary with countries, please refer to the label at the back of the product. - Page 15 NOTES...
