Summary of Contents for Sprout CUBL16

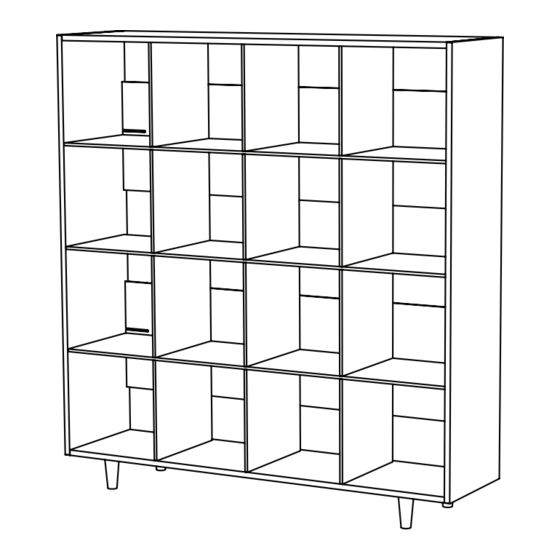

- Page 1 Simple. Modern. American Made. Sixteen Cube Shelf Adult assembly only 2 Adults recommended for assembly Assemble completely before use...
- Page 2 Frustrated? STOP Need Help? (3) Vertical Dividers Talk to our customer service agent at: +1 (833) 530-0033 Or email us at: support@sprout-kids.com (4) Feet PAGE 2 OF 8 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. CUBL16...
- Page 3 Have a second adult help hold parts in place through step 6. Make sure the side with the Wide Lip on the tab NOTCH faces the same direction WIDE LIP as the Notch in the slot. PAGE 3 OF 8 DOCUMENT: AI-CUBL16 WWW.SPROUT-KIDS.COM COPYRIGHT QUARK ENTERPRISES 2023...
- Page 4 Side. Holding the piece as shown, ex the back and push the dovetail tabs into the open slots. Repeat for second partial back. PAGE 4 OF 8 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. CUBL16...
- Page 5 Insert center tab on Back E into slot on side. Flexing the Back, push tabs into open slots. Then carefully insert tabs from all intersectiong parts into slots on Side D . PAGE 5 OF 8 DOCUMENT: AI-CUBL16 WWW.SPROUT-KIDS.COM COPYRIGHT QUARK ENTERPRISES 2023...
- Page 6 Bottom B and Top A until ush with sides. Screw in the four Legs into the Bottom B until tight, as shown. PAGE 6 OF 8 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. CUBL16...
- Page 7 With the middle tab partially in its slot, bend the right tab of Rib F back up to its slot and pop it in. With all three tabs in their slots, straighten Rib F . DOCUMENT: AI-CUBL16 WWW.SPROUT-KIDS.COM COPYRIGHT QUARK ENTERPRISES 2023...
- Page 8 Simple. Modern. American Made. PAGE 8 OF 8 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. CUBL16...
