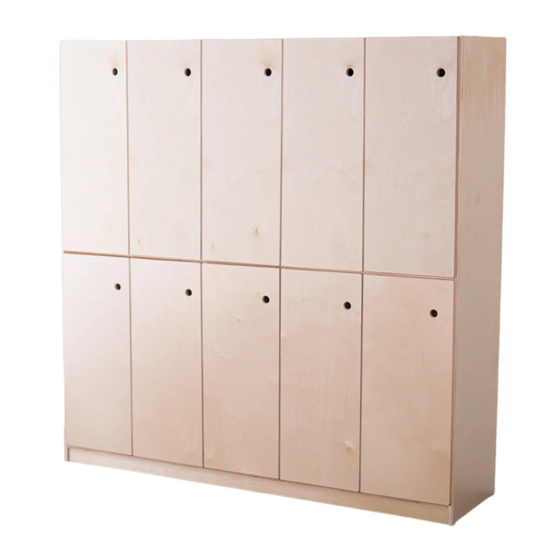

- Page 1 Simple. Modern. American Made. Double Row Lockers Adult assembly only 2 Adults required for assembly Assemble completely before use...
-
Page 2: Before You Start
PAGE 2 OF 12 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. LK-6060-5x2... - Page 3 Peg. Wipe o excess glue Insert Peg into slot on each door. with a damp cloth. Ensure to apply glue just before connecting parts together. GLUE DOCUMENT: AI-LK-5x2 WWW.SPROUT-KIDS.COM COPYRIGHT QUARK ENTERPRISES 2022 PAGE 3 OF 12...
- Page 4 Left Side E and Vertical Dividers G . Make sure that the Adjustment Screw is facing forward, as shown. ADJ. SCREW PILOT HOLES FACE FORWARD PAGE 4 OF 12 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. LK-6060-5x2...
-
Page 5: Top View
If done incorrectly, Doors may close the wrong direction and Backs may be upside down. To help with orientation, lay out parts as indicated below: TOP VIEW Left Side Horizontal Divider Right Side DOCUMENT: AI-LK-5x2 WWW.SPROUT-KIDS.COM COPYRIGHT QUARK ENTERPRISES 2022 PAGE 5 OF 12... - Page 6 Right Side F according to * . MIDDLE SLOT FORWARD-UP HINGE CLIPS ON BOTTOM-RIGHT Insert tabs for Backs D into corresponding slots on Horizontal Divider H . PAGE 6 OF 12 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. LK-6060-5x2...
- Page 7 Dividers into slots from one side to the other, as shown. Tighten Top B and Bottom A into place by pushing down on the ends and middle of each part, as shown below. DOCUMENT: AI-LK-5x2 WWW.SPROUT-KIDS.COM COPYRIGHT QUARK ENTERPRISES 2022 PAGE 5 OF 12...
- Page 8 Tighten Sides E and F into place by pushing down on the ends and middle on each Side, as shown below. PAGE 8 OF 12 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. LK-6060-5x2...
- Page 9 Carefully tilt assembly up onto feet. Insert Shelf Pins L into pin holes at the desired height and rest Shelf K on Pins. Each individual locker cubby should have (2) Shelves, and each Shelf will use (4) Pins. DOCUMENT: AI-LK-5x2 WWW.SPROUT-KIDS.COM COPYRIGHT QUARK ENTERPRISES 2022 PAGE 9 OF 12...
-
Page 10: Door Assembly
SMALL GROOVE ON INSIDE FACE To install Door H , carefully attach Hinge Q to Hinge Clip P by inserting as shown below. Locker Side PAGE 10 OF 12 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. LK-6060-5x2... - Page 11 Due to the natural variances found in wood, the grain, color, and shade of the doors may di er. With this in mind, arrange doors according to your preference, with the exception of End Doors I . DOCUMENT: AI-LK-5x2 WWW.SPROUT-KIDS.COM COPYRIGHT QUARK ENTERPRISES 2022 PAGE 11 OF 12...
- Page 12 Simple. Modern. American Made. PAGE 12 OF 12 QUARK ENTERPRISES, LLC PO BOX 1123, PROVO, UT 84601 MODEL NO. LK-6060-5x2...
