Version 1.00 | 04/06/2016 User Manual Wireless N300 ADSL2+ Modem Router DSL-124...
Page 2
Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description 1.00 October 13, 2016 • Release for revision I1 Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
If any of the above items are missing, please contact your reseller. Note: Using a power supply with a different voltage rating than the one included with the device will cause damage and void the warranty for this product. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
• Firefox 20 or higher • Safari 4 or higher • Chrome 25 or higher Windows Users: Make sure you have the latest version of Java ® installed. Visit www.java.com to download the latest version. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...

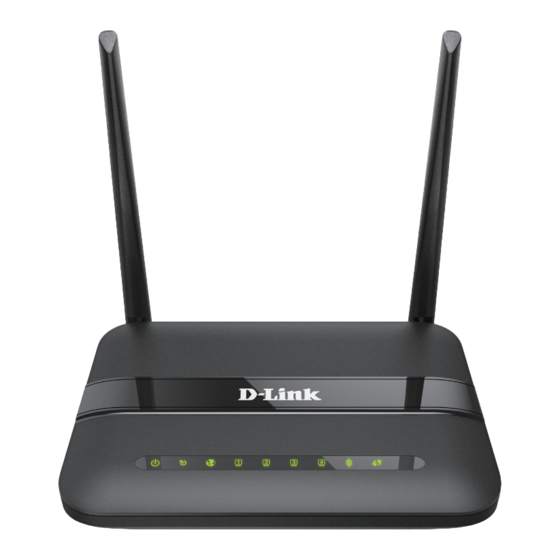

Introduction The DSL-124 Wireless N300 ADSL2+ Modem Router is a versatile, high-performance router for homes and small offices. With integrated ADSL2/2+ supporting up to 24 Mbps download speeds, firewall protection, Quality of Service (QoS), 802.11n wireless LAN and 4 Ethernet switch ports, this router provides all the functions that a home or small office needs to establish a secure and high-speed link to the outside world.
A solid green light indicates a connection to a device. The light will blink during data transmission. WLAN LED A solid green light indicates that the Wi-Fi is ready. WPS LED The light will blink during the WPS process. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 1 - Product Overview Hardware Overview Back To reset the DSL-124 to the default settings, insert a paperclip into the hole on the bottom of the device Reset Button located near the label and wait several seconds. Power Connector Connector for the supplied power adapter.
If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to label each cable or take a picture of your existing setup before making any changes. • We suggest setting up your DSL-124 from a single device and verifying that it is connected to the Internet before connecting additional devices. •...
The key to maximizing wireless range is to follow these basic guidelines: Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 1-30 meters (3-90 feet).
Turn off and unplug your existing DSL broadband modem. This is required. Existing Modem Position your DSL-124 close to a telephone outlet which provides DSL service. Place the router in an open area of your intended work area for better wireless coverage.
Page 15
Ethernet port on your computer. Computer DSL-124 Ethernet Cable Plug the power adapter into your DSL-124 and connect to an available power outlet or surge protector. Caution: - Only use the included power adapter with this product. Power adapter Computer...
Page 16
DSL-124 If connecting to the DSL-124 wirelessly, access the wireless utility on your computer or mobile device. Scan for available Wi- Fi networks (SSID). Select and join the Wi-Fi network printed on the label on the bottom of your DSL-124.
Web-based Setup Wizard - This wizard will launch when you log into the DSL-124 for the first time. • Refer to Web-based Configuration Utility on page 13. Manual Setup - Log into the DSL-124 and manually configure your it, refer to Manual Setup on page 9. • D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 3 - Getting Started Web-based Configuration Utility This section will show you how to configure your D-Link DSL-124 using the web-based configuration utility. If you wish to change the default settings or adjust the configuration of the DSL-124 you may use the web-based configuration utility.
Section 3 - Getting Started Wizard Use the Setup Wizard to quickly and easily configure the DSL-124. This wizard is designed to guide you through a step-by-step process to configure your new D-Link router and connect to the Internet. Click the Setup Wizard button to continue.
Page 20
This step of the wizard allows you to configure your password settings. Enter your Current Password, Enter a new Password, and Confirm Password to secure your DSL-124. Click Next to continue. Otherwise, click Skip to leave the password unchanged. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 21
The current system time is displayed. Select your Time Zone from the drop-down menu. From the Mode select either Set NTP Server Manually or Copy Computer time. NTP CONFIGURATION: If necessary, change the Network Time Protocol (NTP) servers or interval. Click Next to continue. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 22
Choose Ethernet WAN if you are connecting to an external modem or other Ethernet WAN device. Note: If you choose Ethernet WAN, make sure your WAN connection is plugged into Port D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 23
If you selected Static IP, enter your Static IP information as supplied by your ISP. Click Next to continue. BRIDGE/DYNAMIC Bridge or Dynamic IP require no additional configuration. Click Next to continue. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 24
Bridge or Dynamic IP require no additional configuration. Click Next to continue. STATIC IP If you selected Static IP, enter your Static IP information as supplied by your ISP. Click Next to continue. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 25
Step 4: Configure Wireless Network This step of the wizard allows you to configure your Wireless network settings. By default, wireless is enabled. If you want to disable the DSL-124’s wireless capability, uncheck Enable Your Wireless Network. Under Wireless Network Name (SSID) you can change the SSID of your wireless network, for easier identification by wireless clients.
Page 26
Section 3 - Getting Started Step 5: Completed and Apply Congratulations! You have completed the setup of your DSL-124. You will see a summary of the settings you chose. It is recommended that you make a note of this information for future reference.
Section 4 - Configuration Configuration This section will show you how to configure your D-Link wireless router using the web-based configuration utility. If you wish to change the default settings or adjust the configuration of the DSL-124 you may use the web-based configuration utility.
Section 4 - Configuration Setup The Setup Tab provides access to configure the most commonly used settings of your DSL-124. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Local Network Hover your mouse over the Local Network option on the vertical menu bar running along the left side to access: LAN Interface LAN IPv6 Interface DHCP Server DHCP Reserved D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
LAN indicates you are configuring the LAN address settings. IP Address: Enter the IP address of the DSL-124. The default IP address is 192.168.1.1. Note: If you change the IP address, once you click Apply you will need to enter the new IP address in your browser in order to access the configuration utility.
This list displays the currently allowed devices, listed by their MAC address. If you wish to remove a device, click the Delete button. Take care when removing devices so you don’t accidentally block your configuring device. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Prefix length: Enter the prefix length. Preferred Time: Enter the preferred amount of time the address is used for. Valid Time: Enter the amount of time the address is valid for. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 33
The following settings are available if Address Mode is set to Prefix Mode: IPv6 Address Pool: Enter the IPv6 address prefix. The following settings are available if Address Mode is set to Pool Mode: IPv6 Address Pool: Enter the IPv6 address pool range. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 34
IPv6 DNS Mode: The following settings are available if IPv6 DNS Mode is set to Manual: DNS Servers: Enter up to three IPv6 DNS servers. Click Apply Changes when you are done. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
IP Pool Range Enter the starting and ending IP addresses for the DHCP server’s IP assignment. Note: VendorClass IP Range creation and DHCP options are advanced features beyond the scope of this manual. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 36
DHCP STATIC IP TABLE This table lists the current reserved DHCP IP addresses by MAC address and IP address. Press Select radio button and the Modify or Delete Selected above to make adjustments. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Hover your mouse over the Internet Setup option on the vertical menu bar running along the left side to access: Channel Config ATM Settings ADSL Settings PVC Auto Search PPTP L2TP D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
WAN IP settings for unusual routing configurations. CHANNEL CONFIGURATION This panel is for manually configuring your WAN connection. It’s options change depending on other selections and is described in detail beginning on page 35. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 39
Delete button below the WAN Configuration box or click on the trash can icon in the Edit column. The Connect and Disconnect buttons become available To create a new connection, proceed to the next page. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
If you enabled 802.1q, enter the VLAN ID. Bridge mode does not support PPP or WAN IP settings. Click Add to create your connection. Further configuration of your other network equipment may be necessary. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 41
IP Protocol: Select the type of IP addressing: IPv4/v6, IPv4, or IPv6. This will effect the WAN IP Settings and WAN IPv6 Settings. PPP Settings: 1483 MER does not support PPP authentication. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 42
Check this box to enable. Only available if DHCPv6 Mode is set to Address: Enable or Auto: Request DHCPv6 Check this box to enable. Only available if DHCPv6 Mode is set to Enable. Click Add to create your connection. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 43
Select the type of IP addressing: IPv4/v6, IPv4, or IPv6. PPP Settings: Enter your PPP authentication information. User Name: Enter your PPPoE account username provided by your ISP. Password: Enter your PPPoE account password provided by your ISP. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 44
Section 4 - Configuration PPPoE Mode (continued) Type: Select how your DSL-124 connects to your ISP. Choose either Continuous, Connect on Demand, and Manual. Idle Time (min): If you selected Connect on Demand, enter the amount time the router waits if there is no activity before disconnecting.
Page 45
Enter your PPPoA account username provided by your ISP. Password: Enter your PPPoA account password provided by your ISP. Type: Select how your DSL-124 connects to your ISP. Choose either Continuous, Connect on Demand, and Manual. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 46
Check this box to enable. Only available if DHCPv6 Mode is set to Address: Enable or Auto: Request DHCPv6 Check this box to enable. Only available if DHCPv6 Mode is set to Enable. Click Add to create your connection. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 47
WAN IP Settings: Configure the IPv4 WAN settings. If the IP Protocol is set to IPv6, these settings are unavailable. Type: Only Fixed (Static IP) is available for 1483 Routed Mode. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 48
Check this box to enable. Only available if DHCPv6 Mode is set to Address: Enable or Auto: Request DHCPv6 Check this box to enable. Only available if DHCPv6 Mode is set to Enable. Click Add to create your connection. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 49
Configure the IPv4 WAN settings. If the IP Protocol is set to IPv6, these settings are unavailable. Type: Choose either Fixed (Static IP), or Dynamic IP. The following settings are available if Type is set to Fixed: D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 50
Note: If you need to manually specify PPPoA authentication methods, you must first create the connection, and then modify it by selecting the pencil icon from the WAN Table. See page 47. Click Add to create your connection. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
You can change the currently configured DSL account password here. Authentication: Select PAP, CHAP, or Auto. The default is Auto. Connection Type: How your DSL-124 connects to your ISP. Choose either Continuous, Connect on Demand, and Manual. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 52
Authentication: Select PAP, CHAP, or Auto. The default is Auto. Connection Type: How your DSL-124 connects to your ISP. Choose either Continuous, Connect on Demand, and Manual. Idle Time(s): If you selected Connect on Demand, enter the amount time the router waits if there is no activity before disconnecting.
Page 53
Static IP: If you have been assigned a static IP by your ISP, enter it here. Source Mac By default the DSL-124’s MAC address is listed. Press MACCLONE to address: clone your configuring device’s MAC address. Note: If you need to configure IPv6, you must configure it by using the Modify method listed at the begining of this cheaper.
Section 4 - Configuration ADSL Settings The ADSL Settings page allows you to select the DSL standards your DSL-124 uses to connect to your ISP. ADSL SETTINGS To configure the ADSL modulation, click ADSL Settings. In most cases you can leave the settings at their default values.
Section 4 - Configuration Wireless Setup Hover your mouse over the Wireless Setup option on the vertical menu bar running along the left side to access: Wireless Basics Wireless Security D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Choose the transmission channel bandwidth. The options are 20 MHz or 20/40 MHz. Control Sideband: Configure Upper or Lower sideband use for 40 MHz connections. Click Apply Changes to have your changes take effect. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Wireless Setup on page 50. Remember to keep your wireless network passwords safe. Remember that if you change the wireless password of your DSL-124, you must re-input this password on all of your wireless devices.
Page 58
Enter a wireless key to use on your wireless network. If Enterprise (Radius) is selected: Authentication Enter the Port, IP address, and Password of the RADIUS Server. RADIUS Server: Click Apply Changes to have your changes take effect. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 59
The following settings are available if Use 802.1x Authentication is checked: Authentication Enter the Port, IP address, and Password of the RADIUS Server. RADIUS Server: Click Apply Changes to have your changes take effect. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 60
The following settings are available if Use 802.1x Authentication is checked: Authentication Enter the Port, IP address, and Password of the RADIUS Server. RADIUS Server: Click Apply Changes to have your changes take effect. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Interval: Enter the frequency which the time is updated. GMT time: The current time is displayed. Click Apply Changes when you are done or Reset to revert to the previous settings. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
The Advanced tab provides access to features used for network management, security, and administrative tools to manage the device. You can use diagnostic tools to examine performance and troubleshoot problems your DSL-124 may have. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Advanced Wireless Hover your mouse over the Advanced Wireless option on the vertical menu bar running along the left side to access: Wireless Advanced Access Control MBSSID Security D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Use the drop-down menu to specify whether the router should use the Short Preamble or Long Preamble type. The preamble type defines the length of the CRC (Cyclic Redundancy Check) block for communication between the router and roaming wireless adapters. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 65
Ethernet to Enable user isolate to prevent wireless and Ethernet clients from Wireless Blocking: communicating with each other. This may be desired if the DSL-124 is used in a public setting Wifi Multicast to Enable to convert multicast packets to unicast packets over Wi-Fi Unicast: using single session protocols.
This list currently displays the MAC addresses of the devices being filtered. To remove a device from the list, select the radio button next to the MAC address and click the Delete Selected button. To remove all the entries from the list, click Delete All. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Wi-Fi Protected Setup This section allows you to configure how the DSL-124 uses Wi-Fi Protected Setup (WPS) to create a secure wireless connection. WIFI PROTECTED SETTINGS Check the box to Disable WPS. WPS Status: WPS is configured by default.
SSID. Note: Making a network Invisible is not a form of security alone. Relay Blocking: Enable user isolation to prevent wireless clients from communicating with each other. This may be desired if the DSL-124 is used in a public setting. Authentication Select the type of authentication, either Open System, Shared Key, Type: or Auto.
Access Control List Hover your mouse over the Access Control List option on the vertical menu bar running along the left side to access: Access Control List Access Control List IPv6 D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Services Allowed Select services to which you wish to apply access controls. Click the Apply button once you are satisfied with your changes. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
IP Address: Enter the IPv6 IP address and prefix. Services Allowed: Un-check Any to individually select the services which will be available on your LAN. Click Add to add the ACLv6 rule. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 72
Services Allowed: Select the services to allow. Click Add to add the ACLv6 rule. CURRENT IPV6 ACL TABLE This table displays the IPv6 ACL rules. To delete a rule, click Delete. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Name the rule you are about to define for your application. You Application name: may define up to 8 port ranges per application. Start Match Port: Enter the starting source port range your DSL-124 will forward traffic from. End Match Port: Enter the ending source port range your DSL-124 will forward traffic from.
Page 74
CURRENT PORT TRIGGER TABLE From the table you can see the current port triggering rules and their details. To delete a rule, select the Delete button in the last column of the rule. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Click Add to add the new port forwarding rule. To modify an existing rule, select it using the radio selection button. The boxes of the Port Forwarding Setup section will populate with the rules parameters. Enter your changes and click Modify. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 76
From the table you can see the current port forwarding rules and their details. To disable a rule select the Disable button in the last column of the rule. To delete a rule, select the Delete button in the last column of the rule. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Apply Changes when you are done or Reset WAN Interface to revert to the previously saved settings. CURRENT DMZ TABLE The currently assigned DMZ is displayed in this list. To delete the DMZ, select it using the radio button and press Delete Selected. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Parent Control Hover your mouse over the Parent Control option on the vertical menu bar running along the left side to access: URL Block Online Time Limit Schedules D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
URL Blocking Table and click Modify Filter. URL BLOCKING TABLE This table displays the current URL Blocking rules in effect. To delete an existing rule, select it from the list and click Delete Selected URL. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
When you are satisfied with your time limit rules, click Add Rules. To clear the fields and start over, click Reset. CURRENT ONLINE TIMELIMIT TABLE: This table displays the current online time limit rules in effect. To delete all the rules, click Delete All. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
When you are satisfied with your time limit rules, click Add Rules. To clear the fields and start over, click Reset. RULES TABLE: This table displays the current rules available for selection. To delete a rule, select it and click Delete Selected Rule. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Filtering Options Hover your mouse over the Filtering Options option on the vertical menu bar running along the left side to access: IP/Port Filter IPv6/Port Filter MAC Filter D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Enter the destination IP address and subnet mask for the rule. Address & Mask Address: Enter the source port number if TCP or UDP is selected. SPort: DPort: Enter the destination port number if TCP or UDP is selected. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 84
Current Filter Table. To clear the fields and start over, click Reset. To see help on creating rules, click Help. CURRENT FILTER TABLE The current filter rules in effect are listed here. Click Disable/Enable to disable or enable a rule. Click Delete to delete a rule. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Enter the destination IP address and subnet mask for the rule. Address & Prefix Length: SPort: Enter the source port number if TCP or UDP is selected. Enter the destination port number if TCP or UDP is selected. DPort: D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 86
Current Filter Table. To clear the fields and start over, click Reset. To see help on creating rules, click Help. CURRENT FILTER TABLE The current filter rules in effect are listed here. Click Disable/Enable to disable or enable a rule. Click Delete to delete a rule. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
CURRENT MAC FILTER TABLE The current list of MAC filters are displayed here. To delete a filter, select it from the list and click Delete. To delete all the filters, click Delete All. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Select ALL/Clear All. Enable Source IP You may block source IP addresses for a set period of time. Blocking: Click Apply Changes to have your changes take effect. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Hover your mouse over the DNS option on the vertical menu bar running along the left side to access: IPv6 DNS D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
If you have alternate DNS IP addresses, select Set DNS Manually and enter them into the DNS 1, DNS 2, and DNS 3 fields. Click Apply Changes when you are done or Reset Selected to revert to your previously saved settings. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
If you have alternate DNS IP addresses, select Set DNS Manually and enter them into the DNS 1, DNS 2, and DNS 3 fields. Click Apply Changes when you are done or Reset Selected to revert to your previously saved settings. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Click Add when you are done. To remove an existing DDNS entry, select it from the table below and click the Remove button. DYNAMIC DDNS TABLE This list displays the current dynamic Dynamic DNS settings. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Hover your mouse over the Network Tools option on the vertical menu bar running along the left side to access: Port Mapping IGMP Proxy IP QoS UPnP SNMP Telnet TY-069 Software Forbidden ARP Binding Client Limit D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Step 1 Select a group from the table. Step 2 Select interfaces from the WAN and LAN interface list and add them to interface group list. Step 3 Click Apply to save the changes. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Group Leave Set the IGMP group leave delay in ms. 2000 ms is the default. Delay: Click Apply Changes when you are done or Undo to revert to your previous settings. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Set the Response Interval of Last Group in seconds. 1 second is the of Last Group: default. Click Apply Changes when you are done or Undo to revert to your previous settings. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration IP QoS From this page you can configure the Quality of Service settings on your DSL-124 to help improve your browsing experience. Setting up QoS requires familiarity with networking technology outside the scope of this document, as well as an understanding of the traffic on your network.
UPNP SETUP Click the radial button to enable or disable Universal Plug and Play (UPnP). Check the box to Enable UPnP. Click Apply Changes when you are done. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
UPNP SETUP Click the radial button to enable or disable Universal Plug and Play (UPnP). Check the box to Enable UPnP. Click Apply Changes when you are done. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
This feature is not recommended for normal use. UPNP SETUP Click the radial button to enable or disable Telnet. Check the box to Enable. Click Apply Changes when you are done. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 101
TR-069 allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics on this device. Check the box to Enable WAN Management Protocol (TR-069). This will unlock the TR- 069 configuration options. Click Apply Changes when you are done. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Software Forbidden FORBIDDEN SOFTWARE Your DSL-124 is able to block specific software across your entire network. If your software is supported, select it from the drop down menu and click add. Note that only certain pieces of software can be blocked by this feature.
To delete an ARP binding, select it from the ARP binding table and click Delete Selected. To undo your changes, click Undo. ARP BINDING TABLE The table shows a list of currently bound ARP addresses. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Select Enable to limit the maximum number of devices on your network. You can specify how many device can access your network in Maximum Devices. Click Apply Changes when you are done. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Routing Hover your mouse over the Routing option on the vertical menu bar running along the left side to access: Static Routing IPv6 Static Route D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
To delete a static route, select it from the table and click Delete Selected. To see the current IP routes, click Show Routes. STATIC ROUTE TABLE The table shows a list of currently defined static routes. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 107
To see the current IP routes, click Show Routes. A window will pop-up with the current IP route table. CURRENT IP ROUTING TABLE The table shows a list of all the currently defined routes. You may either Refresh or Close this pop-up window. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Once you have entered your Static Route Criteria, click Add Route. To delete a static route, select it from the table and click Delete Selected. IPV6 STATIC ROUTE TABLE The table shows a list of currently defined static routes. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Select the version of RIP protocol to use when sending RIP updates. The options are RIP1 or RIP2. Once you have entered your RIP Criteria, click Add. To delete a RIP rule, select it from the table and click Delete. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Hover your mouse over the NAT option on the vertical menu bar running along the left side to access: NAT ALG NAT Exclude IP NAT Forwading FTP ALG Config NAT IP Mapping D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
ALG CONFIGURATION Check or un-check the boxes next to the protocols to enable or disable them. Click Apply Changes when you are done. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Click Apply Changes when you are done or Reset to undo your changes. CURRENT NAT EXCLUDE IP TABLE The current list of NAT ALG exceptions is listed here. To remove an exclusion, select it from the table and click Delete. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Click Apply Changes when you are done or Reset to undo your changes. CURRENT NAT PORT FORWARDING TABLE The current list of NAT Port Forwarding table is listed here. To remove an exclusion, select it from the table and click Delete. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Click Add Dest Ports when you are done. To delete a currently assigned FTP ALG port, select it from the table and click the Delete Selected Dest Port button. FTP ALG PORTS TABLE The current list of FTP ALG ports is displayed. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
CURRENT NAT IP MAPPING TABLE The current NAT IP Mapping table is displayed. To remove a mapping, select it and click the Delete Selected button. To remove all the entries click the Delete All button. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Update Settings: To restore a saved configuration, use the Browse... button to find the previously saved configuration file. Then, click the Update Settings button to transfer those settings to the device. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
During the upgrade process, do not power off your computer or router, and do not refresh the browser window until the upgrade is complete. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Delete to delete it. Click Reset to undo reset modifications made to the above fields. USERS ACCOUNT TABLE The User Account Table displays information about the currently configured user accounts. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Diagnostics Hover your mouse over the Diagnostics option on the vertical menu bar running along the left side to access: Ping Ping6 Traceroute ADSL Diag Test D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Ping The Ping section enables you to run an IPv4 connectivity test. HOST Enter an IPv4 address or hostname and click Ping and wait for the results to appear. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
The Ping6 section enables you to run an IPv6 connectivity test. HOST Target Address: Enter an IPv6 address. Interface: Select the interface to run the ping6 test on. Click Ping and wait for the results. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Adjust the DSCP number. MaxHopCount: Enter the maximum number of hops. Interface: Select the interface to initiate the traceroute. Click Traceroute to run the test and click Show Result to see the results. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration ADSL This page allows you to run a diagnostic test on your ADSL connection. ADSL TONE DIAGNOSTIC Click Start to begin the test. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
This page is used to test the connection to your local network, the connection to your DSL service provider, and the connection to your Internet service provider. Select your Internet Connection and click Run Diagnostic Test to run the diagnostics tests. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration System Log The DSL-124 keeps a running log of events and activities occurring on the router. You may send these logs to a SysLog server on your network. SETTING Error: Check this box to enable error messages.
Section 4 - Configuration Status The Status tab provides information about the DSL-124’s current status. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Device Info This page displays the current information for the DSL-124. SYSTEM This section displays a summary of the system settings. This section displays of the Internet connection settings. LAN CONFIGURATION This section displays a summary of the local network settings.
Page 129
This section displays a summary of the Ethernet WAN Configuration. ETHERNET WAN IPV6 CONFIGURATION This section displays a summary of the Ethernet WAN IPv6 Configuration. Click Refresh to refresh the list. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
This table displays a list of wireless clients that are connected to your wireless router. It displays the MAC address, number of packets transmitted, number of packets received, the transmission speed, power saving status, and expiration time. Click Refresh to refresh the list. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration DHCP Clients This table lists each DHCP client, including its hostname, MAC address, IP address, and expiration time. Click Refresh to refresh the list. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
ADSL Driver This page displays the current DSL status of your DSL-124. Click Retrain to force your DSL-124 to disconnect and re-connect to your IP. Click Refresh to refresh the page. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Here you can view the packets transmitted and received passing through your router on both WAN and LAN ports, as well as the DSL information. The traffic counter will reset if the device is rebooted. Click Refresh to refresh the list. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Section 4 - Configuration Route Info The Route Info page displays a summary of the current route configuration between the router and the WAN. Click Refresh to refresh the list. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Blu-ray DVD players, wireless printers and cameras will have a WPS button (or a software utility with WPS) that you can press to connect to the DSL-124 router. Please refer to your user manual for the wireless device you want to connect to make sure you understand how to enable WPS.
Windows® 10 When connecting to the DSL-124 wirelessly for the first time, you will need to input the wireless network name (SSID) and Wi-Fi password (security key) of the device you are connecting to. If your product has a Wi-Fi configuration card, you can find the default network name and Wi-Fi password here.
Page 138
You can also use Wi-Fi Protected Setup (WPS) to connect to the router. Press the WPS button on your D-Link device and you will be automatically connected. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Wireless Icon Clicking on this icon will display a list of wireless networks that are within connecting proximity of your computer. Select the desired network by clicking on the network name. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 140
WPS button on your router during this step to enable the WPS function. When you have established a successful connection to a wireless network, the word Connected will appear next to the name of the network to which you are connected to. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
If you are joining an existing network, you will need to know the security key or passphrase being used. Click on the wireless icon in your system tray (lower-right corner). Wireless Icon The utility will display any available wireless networks in your area. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 142
If you get a good signal but cannot access the Internet, check your TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. The following window appears while your computer tries to connect to the router. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 143
It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as the one on the wireless router. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Open the Windows Vista® Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower right corner of screen). Select Connect to a network. Highlight the Wi-Fi name (SSID) you would like to connect to and click Connect. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 146
It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as the one on the wireless router. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Why can’t I access the web-based configuration utility? When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website, nor do you have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.
Page 148
• Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your web management.
Page 149
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, XP, Vista®, and 7 users type in cmd) and press Enter (or click OK). • Once the window opens, you’ll need to do a special ping. Use the following syntax: ping [url] [-f] [-l] [MTU value] Example: ping yahoo.com -f -l 1472 D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 150
• To change the MTU, enter the number in the MTU field and click Save Settings to save your settings. • Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business, or on public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when, and where you want it.
Why D-Link Wireless? D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network.
Page 153
PDAs, headphones, laptops, speakers, and other devices that operate on batteries. Who uses wireless? Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it.
Page 154
The wireless connection in public places is usually called “hotspots”. Using a D-Link USB adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations like: airports, hotels, coffee shops, libraries, restaurants, and convention centers.
An Infrastructure network contains an access point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point. An Ad-hoc network contains only clients, such as laptops with wireless USB adapters. All the adapters must be in Ad-hoc mode to communicate. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from your ISP. Step 5 Click OK twice to save your settings. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 161
υλικολογισμικό του προϊόντος είναι διαθέσιμα για λήψη από τη σελίδα του προϊόντος στην τοποθεσία www.dlink. com. Par les présentes, D-Link Corporation déclare que ce produit, ces accessoires et ce logiciel sont conformes aux Français [French] directives 2014/53/UE.Le texte complet de la déclaration de conformité de l'UE et le icroprogramme du produit sont disponibles au téléchargement sur la page des produits à...
Page 162
2014/53/EU. Pełen tekst deklaracji zgodności UE oraz oprogramowanie sprzętowe do produktu można pobrać na stronie produktu w witrynie www.dlink.com. Desta forma, a D-Link Corporation declara que este produto, os acessórios e o software estão em conformidade Português [Portuguese] com a diretiva 2014/53/UE. O texto completo da declaração de conformidade da UE e do firmware...
Page 163
2014/53/EU. Hela texten med EU-försäkran om överensstämmelse och produkt-firmware kan hämtas från produktsidan på www.dlink.com. Hér með lýsir D-Link Corporation því yfir að þessi vara, fylgihlutir og hugbúnaður eru í samræmi við tilskipun Íslenska [Icelandic] 2014/53/EB. Sækja má ESB-samræmisyfirlýsinguna í heild sinni og fastbúnað vörunnar af vefsíðu vörunnar á www.
Page 164
Access Points unterstützen die Funktionen DFS (Dynamic Frequency Selection) und TPC (Transmit Power Control) wie erforderlich bei Betrieb auf 5 GHz innerhalb der EU. • Bitte schlagen Sie im Handbuch oder Datenblatt nach nach, ob Ihr Gerät eine 2,4 GHz und / oder 5 GHz Verbindung nutzt. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 165
5 Ghz dentro de la UE. • Por favor compruebe el manual o la ficha de producto para comprobar si el producto utiliza las bandas inalámbricas de 2.4 GHz y/o la de 5 GHz. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 166
Toegangspunten ondersteunen DFS (Dynamic Frequency Selection) en TPC (Transmit Power Control) functionaliteit zoals vereist bij gebruik in 5 GHz binnen de EU. • Raadpleeg de handleiding of de datasheet om te controleren of uw product gebruik maakt van 2.4 GHz en/of 5 GHz. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 167
Halten Sie das Produkt von Heizkörpern und anderen Quellen fern, die Wärme erzeugen. • Trennen Sie das Produkt immer von der Stromzufuhr, bevor Sie es reinigen und verwenden Sie dazu ausschließlich ein trockenes fusselfreies Tuch. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 168
Mantenga el producto alejado de los radiadores y de otras fuentes de calor. • Desenchufe siempre el producto de la alimentación de red antes de limpiarlo y utilice solo un paño seco sin pelusa. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 169
Houd het product uit de buurt van radiators en andere warmtebronnen. • U dient het product steeds los te koppelen van de stroom voordat u het reinigt en gebruik uitsluitend een droge pluisvrije doek. D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual...
Page 170
D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both products and packaging. D-Link recommends that you always switch off or unplug your D-Link products when they are not in use. By doing so you will help to save energy and reduce CO2 emissions.
Page 171
D-Link et l’environnement Chez D-Link, nous sommes conscients de l'impact de nos opérations et produits sur l'environnement et nous engageons à le réduire. Pour limiter cet impact, D-Link conçoit et fabrique ses produits de manière aussi écologique que possible, en utilisant des matériaux recyclables et faiblement toxiques, tant dans ses produits que ses emballages.
Page 172
D-Link zijn producten zo milieuvriendelijk mogelijk, door het gebruik van recycleerbare producten met lage toxiciteit in product en verpakking. D-Link raadt aan om steeds uw D-Link producten uit te schakelen of uit de stekker te halen wanneer u ze niet gebruikt. Door dit te doen bespaart u energie en beperkt u de CO2-emissies.
Page 173
D-Link a životní prostředí Ve společnosti D-Link jsme si vědomi vlivu našich provozů a výrobků na životní prostředí a snažíme se o minimalizaci těchto vlivů. Proto své výrobky navrhujeme a vyrábíme tak, aby byly co nejekologičtější, a ve výrobcích i obalech používáme recyklovatelné a nízkotoxické materiály.
Page 174
D-Link produkter som er så miljøvennlig som mulig, ved å bruke resirkulerbare, lav-toksiske materialer både i produktene og forpakningen. D-Link anbefaler at du alltid slår av eller frakobler D-Link-produkter når de ikke er i bruk. Ved å gjøre dette hjelper du å spare energi og å redusere CO2-utslipp.
Page 175
D-Link sine produkter, så de er så miljøvenlige som muligt, ved at bruge genanvendelige materialer med lavt giftighedsniveau i både produkter og emballage. D-Link anbefaler, at du altid slukker eller frakobler dine D-Link-produkter, når de ikke er i brug. Ved at gøre det bidrager du til at spare energi og reducere CO2-udledningerne.
Page 176
D-Link och miljön På D-Link förstår vi och är fast beslutna att minska den påverkan våra verksamheter och produkter kan ha på miljön. För att minska denna påverkan utformar och bygger D-Link sina produkter för att de ska vara så miljövänliga som möjligt, genom att använda återvinningsbara material med låg gifthalt i både produkter och förpackningar.
