All Traffic Solutions ATS 3 Setup Manual

ATS 3 Trailer with Integrated Solar Setup Guide
Thank you for purchasing an ATS 3 Trailer with the Integrated Solar Option and the Single-
Arm Solar Panel Mounting Bracket. This guide will show you how to set up and install your
new trailer and sign. The Integrated Solar Option, which is powered by solar technologies
and one or more lithium batteries, is available for SpeedAlert 18 Radar Message Signs,
InstAlert 18 Variable Message Signs, and Shield 12 or Shield 15 Radar Speed Signs. The ATS
Trailer is compact and has a low tongue weight, making one-person deployment very
manageable.

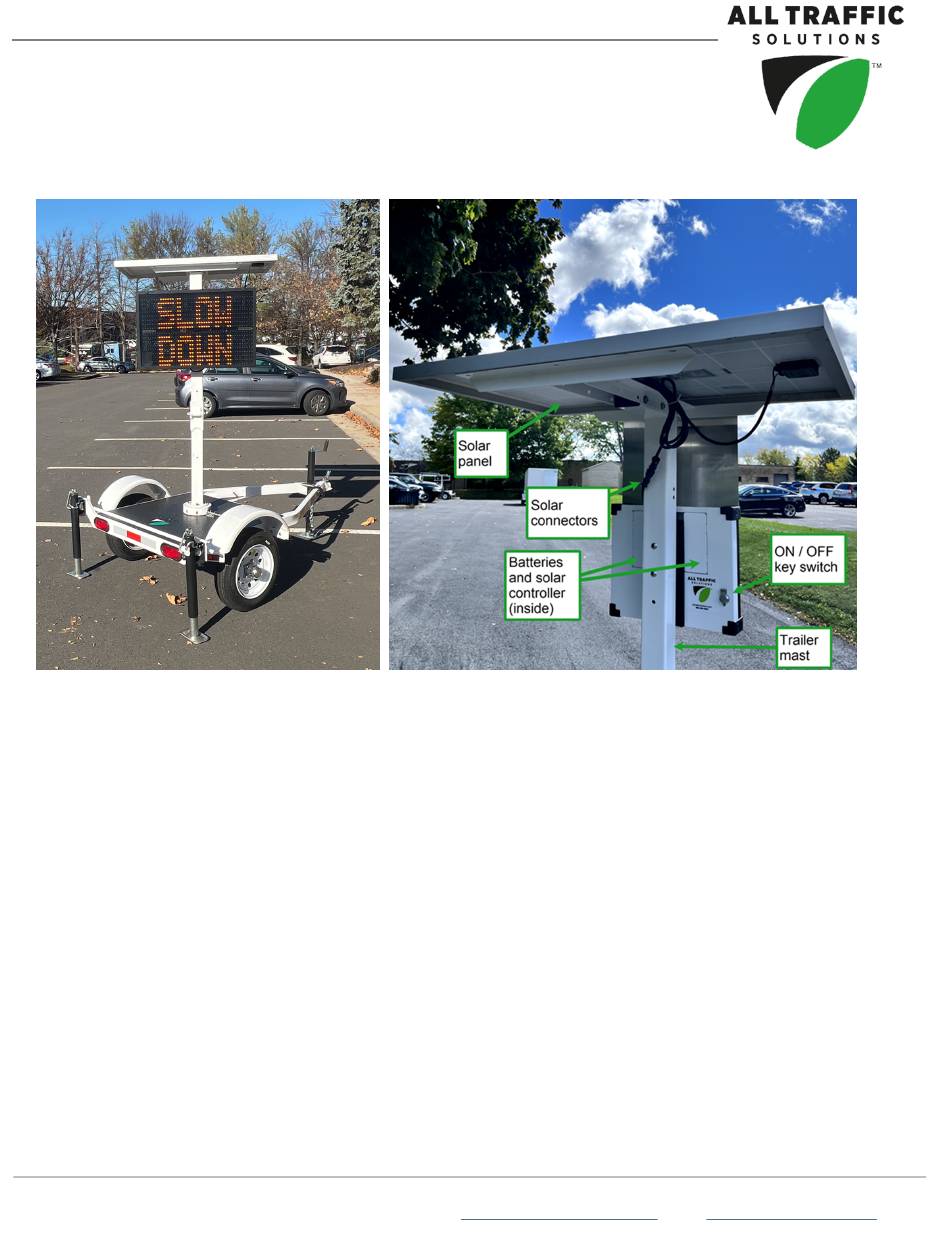

[Figure 1] ATS 3 Trailer and SA 18 with Integrated
Solar
Before you begin
If you have a TraffiCloud Web subscription, the first thing you'll need to do to get started using your signs with
TraffiCloud is to create at least one Site for each sign in advance from your office. With TraffiCloud, you configure a Site
for everything from speed to messaging (if equipped), reports, alerts, and more. Sites are the key to generating traffic
reports, because TraffiCloud organizes traffic data for reports by Site. If necessary, you can also perform these steps
after you install a sign at a physical location. See "Creating a Site" in the Getting Started with TraffiCloud Guide for your
sign.
If you don't have a Web subscription, you can set up the sign in advance or while you're on location, using the onboard
sign buttons. You can also set up a Site with TraffiCloud Sign Manager for Windows, over a USB or Bluetooth
connection (pairing code "ATS"), and perform basic sign setup with the TraffiCloud Mobile app for Android over
Bluetooth. See Step 3: Configure the sign locally on
The Integrated Solar Option
As shown in [Figure 2] above, all of the components of the solar charging system, with the exception of the solar panel,
have been incorporated inside the sign, for a convenient and compact design.
The solar controller and batteries are installed securely inside the battery compartments of the sign. The solar
controller receives power from the solar panel and conditions it for charging the batteries. The integrated solar option
