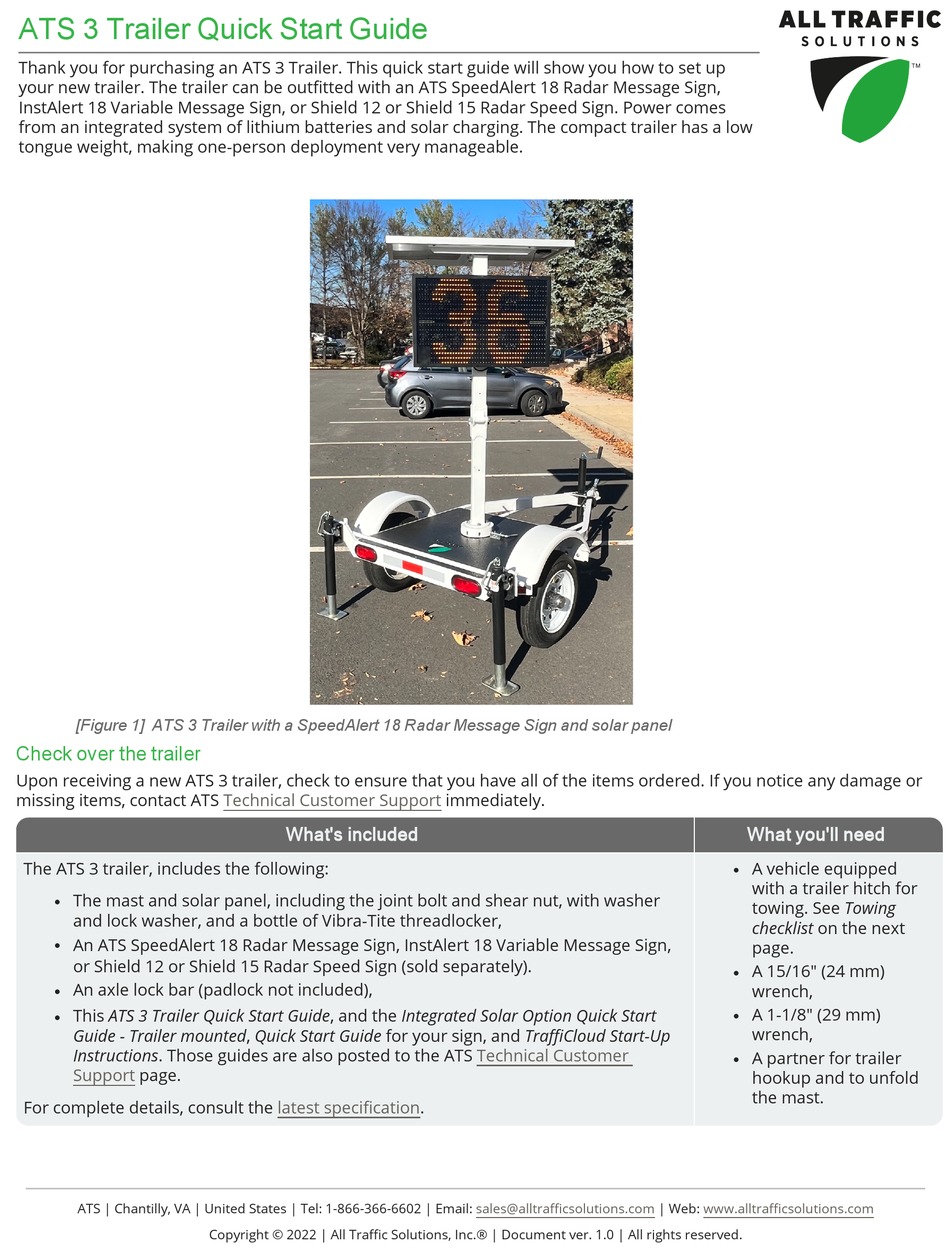

ATS 3 Trailer Quick Start Guide
Thank you for purchasing an ATS 3 Trailer. This quick start guide will show you how to set up
your new trailer. The trailer can be outfitted with an ATS SpeedAlert 18 Radar Message Sign,
InstAlert 18 Variable Message Sign, or Shield 12 or Shield 15 Radar Speed Sign. Power comes
from an integrated system of lithium batteries and solar charging. The compact trailer has a low
tongue weight, making one-person deployment very manageable.
[Figure 1] ATS 3 Trailer with a SpeedAlert 18 Radar Message Sign and solar panel

Check over the trailer

Upon receiving a new ATS 3 trailer, check to ensure that you have all of the items ordered. If you notice any damage or
missing items, contact ATS
The ATS 3 trailer, includes the following:
The mast and solar panel, including the joint bolt and shear nut, with washer
l
and lock washer, and a bottle of Vibra-Tite threadlocker,
An ATS SpeedAlert 18 Radar Message Sign, InstAlert 18 Variable Message Sign,
l
or Shield 12 or Shield 15 Radar Speed Sign (sold separately).
An axle lock bar (padlock not included),
l
This ATS 3 Trailer Quick Start Guide, and the Integrated Solar Option Quick Start
l
Guide - Trailer mounted, Quick Start Guide for your sign, and TraffiCloud Start-Up
Instructions. Those guides are also posted to the ATS
Support page.
For complete details, consult the
ATS | Chantilly, VA | United States | Tel: 1-866-366-6602 | Email:
Technical Customer Support
What's included
latest specification.
Copyright © 2022 | All Traffic Solutions, Inc.® | Document ver. 1.0 | All rights reserved.
immediately.
Technical Customer
sales@alltrafficsolutions.com
What you'll need
A vehicle equipped
l
with a trailer hitch for
towing. See Towing
Checklist on the next
page.
A 15/16" (24 mm)
l
wrench,
A 1-1/8" (29 mm)
l
wrench,
A partner for trailer
l
hookup and to unfold
the mast.
