Shield Quick Start Guide
Thank you for purchasing an All Traffic Solutions Shield Radar Speed Sign. This Quick Start
Guide will show you how to set up, power, and configure your new sign. If you have a
TraffiCloud subscription, you can log on to TraffiCloud to set up your signs remotely. Non-
subscribers can complete sign setup locally. See Step 4: Configure the Shield locally on the
next page.

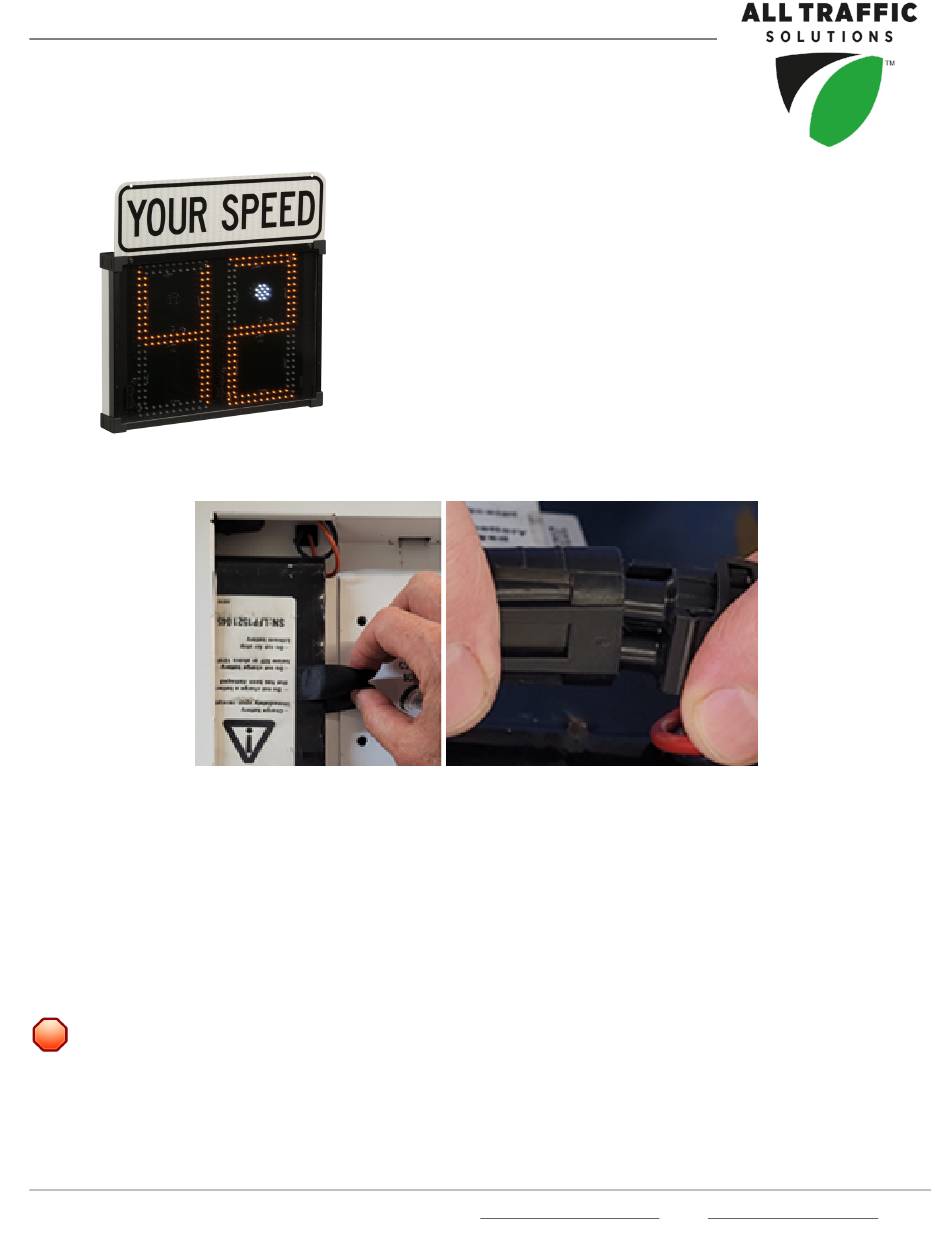

[Figure 1] Shield 15 Radar Speed Sign
B. Next, remove the battery compartment cover by removing the thumb screws. Set the key, bracket, and thumb
screws aside.
C. Slide the battery out of the battery compartment, as shown in [Figure 2] above.
D. Disconnect the connectors, as shown in [Figure 3] above.
Step 2: Charge the batteries
The Shield arrives with the batteries partially charged and needs to be fully charged before deployment.
RISK OF ELECTRIC SHOCK AND DAMAGE TO EQUIPMENT The charger is not intended for
W
:
ARNING
outdoor use. Only charge and store the batteries in a controlled environment.
A. Plug the battery into the supplied charger cable.
B. Plug the charger cable into a power outlet. The light on the charger displays red while charging and changes to
green when charging is nearly complete. A charge can take up to 7 hours for the 12V 10Ah LFP battery and 11
hours for the 12V 16Ah LFP batteries supplied with the sign.
ATS | Chantilly, VA | United States | Tel: 1-866-366-6602 | Email:
Step 1: Unpack the equipment
Remove the sign, batteries, charger, and other optional equipment from
the boxes.
Batteries should be fully charged before deployment. Shield Radar Speed
Signs can accommodate up to two 16Ah lithium batteries internally.
Although only one battery is required, two batteries are recommended
to extend the run time of the sign, on average from 7 to 10 days.
For all steps involving batteries, repeat for the second battery as
necessary.
To remove the batteries:
A. Place the Shield Radar Speed Signs face down on a flat surface and
[Figure 2] Slide the battery
Copyright © 2022 | All Traffic Solutions, Inc.® | Document ver.1.01 | All rights reserved.
remove the mounting bracket by unlocking the lock with the
supplied key and lifting up on the bottom of the mounting bracket.
[Figure 3] Disconnect/connect
the battery
sales@alltrafficsolutions.com
| Web:
www.alltrafficsolutions.com
Advertisement
Table of Contents
Related Manuals for All Traffic Solutions Shield
Summary of Contents for All Traffic Solutions Shield
- Page 1 D. Disconnect the connectors, as shown in [Figure 3] above. Step 2: Charge the batteries The Shield arrives with the batteries partially charged and needs to be fully charged before deployment. RISK OF ELECTRIC SHOCK AND DAMAGE TO EQUIPMENT The charger is not intended for ARNING outdoor use.
- Page 2 Step 4: Configure the Shield locally If you have a TraffiCloud subscription, you should use this step only to power on your Shield, and instead configure the sign online, setting the sign display options and assigning a Site. It's best to perform sign setup in advance, so that your traffic data is captured in TraffiCloud immediately.
- Page 3 3 Step 5: Install the Your Speed sign attachment Shield Display Modes Here are the sign modes available with the Shield if you use the Display Mode button on the sign: Shield Description modes Constant: The Shield continuously displays vehicle speeds as each vehicle passes, changing the speed display as the vehicle speed changes.
- Page 4 Getting Started Guides link on your TraffiCloud Help menu). Non-subscribers should refer to Step 4: Configure the Shield locally on page 2. ATS | Chantilly, VA | United States | Tel: 1-866-366-6602 | Email: sales@alltrafficsolutions.com | Web: www.alltrafficsolutions.com Copyright © 2022 | All Traffic Solutions, Inc.® | Document ver.1.01 | All rights reserved.
