LumaSense 140 Series Manual Addendum

Impac pyrometer
Hide thumbs Also See for 140 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
IMPAC Pyrometer
Series 140 with Profinet Interface

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 140 Series and is the answer not in the manual?

Questions and answers

Related Manuals for LumaSense 140 Series

Summary of Contents for LumaSense 140 Series

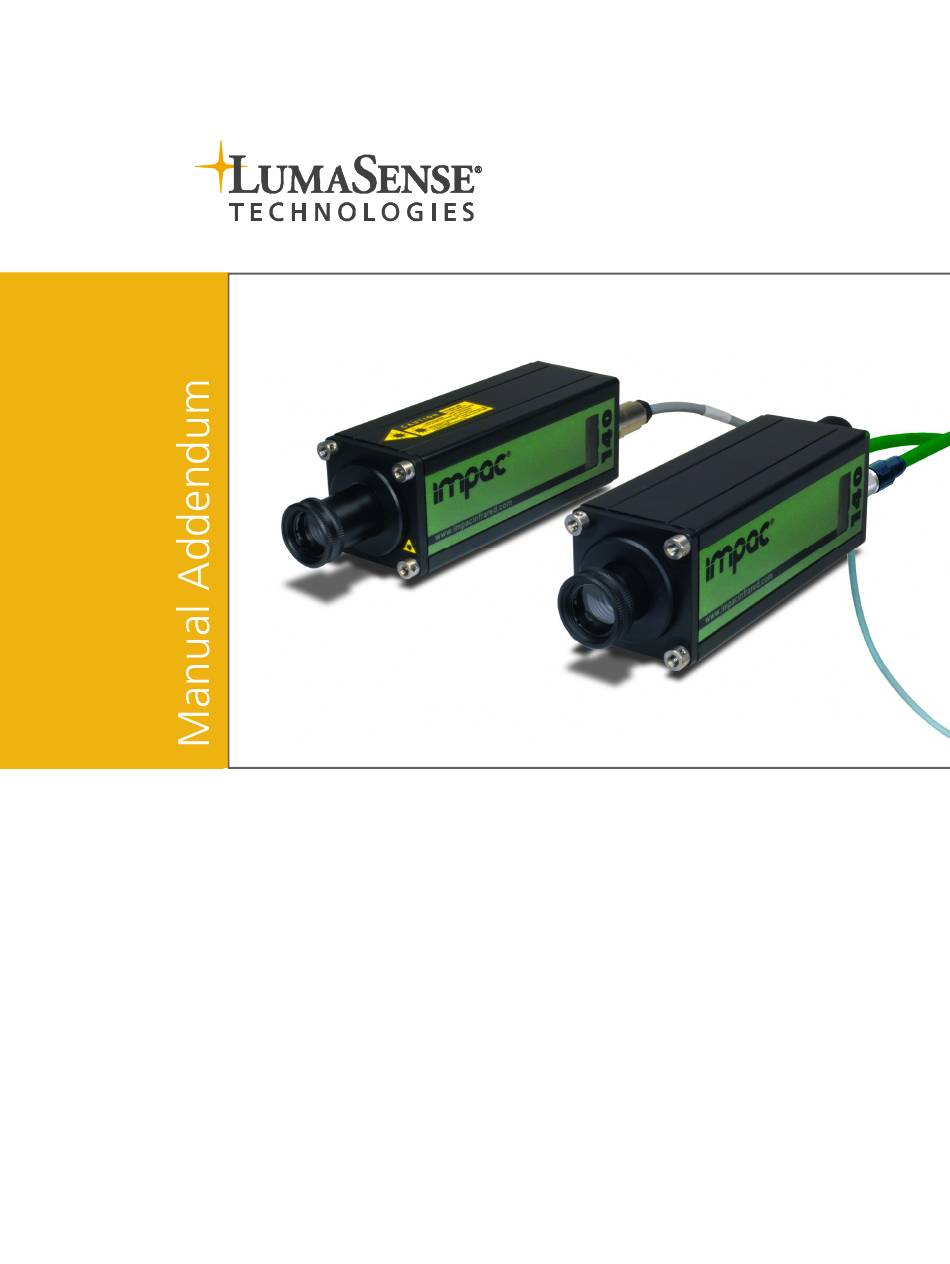

  • Page 1 IMPAC Pyrometer Series 140 with Profinet Interface...
  • Page 2 LumaSense Technologies prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual, without the express written permission of LumaSense Technologies.

  • Page 3: Table Of Contents

    Contents General ........................... 5 1.1 Differences from the Series 140 Manual .............. 5 1.2 Legend ........................5 1.3 Terminology ......................5 Connections ........................7 2.1 Electrical Installation .................... 7 2.1.1 Pin Assignment of the Male Socket ..............7 2.1.2 Bus Interface Connector ..................8 2.1.3 Bus Cable ......................
  • Page 4 To ensure consistent document formatting, this page was intentionally left blank. IS 140-PN IGA 140-PN • IGA 140/23-PN General ∂ 4...

  • Page 5: General

    1 General This manual is supplemental to the standard Series 140 manuals and only contains information relevant to Profinet use. It is not intended to be a standalone reference. For information about operating our Series 140 pyrometers please refer to the standard Series 140 manuals. 1.1 Differences from the Series 140 Manual ∂...
  • Page 6 To ensure consistent document formatting, this page was intentionally left blank. IS 140-PN IGA 140-PN • IGA 140/23-PN General ∂ 6...

  • Page 7: Connections

    2 Connections Button for laser aiming, or thru-lens view finder Error LED Status LED Power LED Profinet-IO Profinet-IO female connector female connector M12x1 M12x1 d-coded ♀ d-coded ♀ Bus-entry Bus-exit Power supply / analog current output connector ♂ - Series 712 - M9x0.5 Linkact1 LED Linkact0 LED 2.1 Electrical Installation...

  • Page 8: Bus Interface Connector

    2.1.2 Bus Interface Connector The Series 140 Profinet Pyrometer features two Profinet ports - one port can for instance be used as outgoing Profinet-port. M12 Profinet Pin Assignment Color Signal Indication yellow TxD+ Transmission Data+ orange TxD- Transmission Data- white RxD+ Receiver Data+ blue...

  • Page 9: Functions

    Link/Activity LEDs Status Description No bus connection Connection is established, but no activity. The instrument is on a fully functional network. Flashing Connection and communication active Error LED Status Description Communication is ok Indicates internal errors of bus, configuration problems, or errors while Flashing initializing Profinet.
  • Page 10 IS 140-PN IGA 140-PN • IGA 140/23-PN Connections ∂ 10...

  • Page 11: Project Planning

    The GSDML file required for this purpose can be loaded from the integrated WEB-Server. “GSDML-V2.1-Lumasense-Pyrometer-20110527.xml“ In the delivery state the pyrometer has saved the following default configuration: IP-Address: 0. 0. 0. 0 Name: pyrometer The IP address and the instrument's name can be changed.

  • Page 12: Data Format

    3.2 Data Format Name Format Bytes Flags Function UPP mode Each data package gets a new number to enable the master to recognize if data were Word with read twice or if data packages Status Reading 1, 2, 3, 4 sign were not read.

  • Page 13: Profinet Address And Device Name Assignment

    3.3 Profinet Address and Device Name Assignment By default in the delivery state the pyrometer has saved its MAC-Address and the Device type. The MAC-Address is also printed on the label of the device, e.g. “00-14-11-0A-A5-47“. The name for the device type is “pyrometer”. Normally this information can also be read in the engineering tool with a so-called Bus Scan.
  • Page 14 To ensure consistent document formatting, this page was intentionally left blank. IS 140-PN IGA 140-PN • IGA 140/23-PN Project Planning ∂ 14...

  • Page 15: Configuration Example Step7

    1. Install the GSDML file “GSDML-V2.1-Lumasense-Pyrometer-20110527.xml“ 2. Select menu Options > Install general station description file (GSD) 3. Select the device under Other Field Device > PROFINET IO > Sensors > Lumasense > IR Thermometer and connect with the PLC 4.
  • Page 16 5. Set the Device Parameters (temperature unit and analog output current) 6. Creating a list of variables (for values observation) IS 140-PN IGA 140-PN • IGA 140/23-PN Configuration Example Step7 ∂ 16...

  • Page 17: Reference Numbers

    5 Reference Numbers 5.1 Instrument Reference Numbers Thru-lens View Type Temperature Range Laser Targeting Light Finder IS 140-PN MB 14: 550 ... 1400 °C 3 908 100 3 908 110 IS 140-PN MB 16: 600 ... 1600 °C 3 908 120 3 908 130 IS 140-PN MB 18:...
  • Page 18 To ensure consistent document formatting, this page was intentionally left blank. IS 140-PN IGA 140-PN • IGA 140/23-PN Reference Numbers ∂ 18...

  • Page 19: Index

    Index Configuration 15 Connection cable 18 Connection Cable Reference Numbers 17 Connections 7 Data Format 12 Device name 13 Electrical Installation 7 Installation Electrical 7 Instrument Reference Numbers 17 IP address 13 Male Socket 7 Pin assignment 7 Profinet GSDML File 11 Project Planning 11 Reference numbers 17 IS 140-PN...

This manual is also suitable for:

Is 140-pnIga 140-pnIga 140/23-pn
