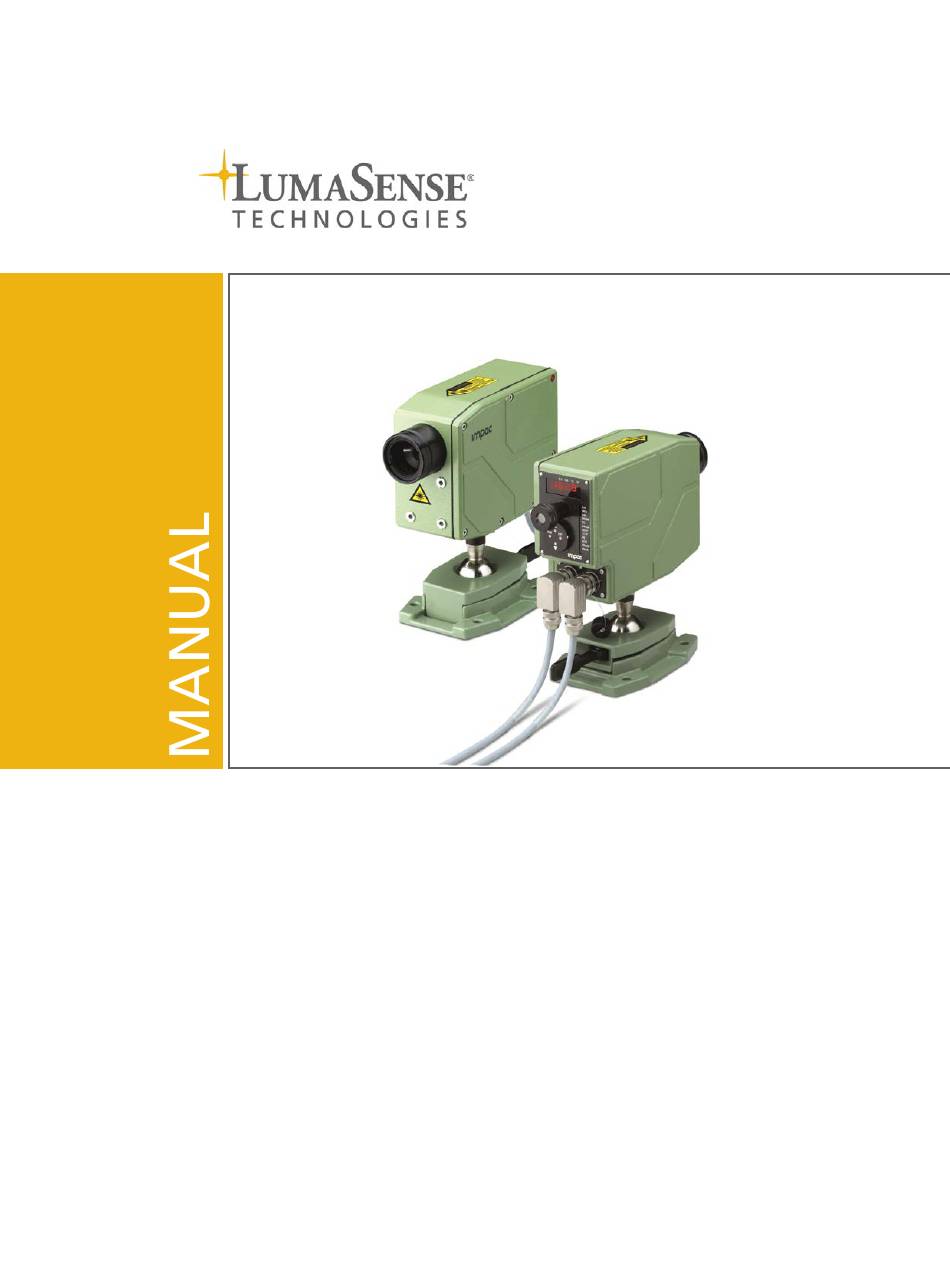

- Page 1 IMPAC Pyrometer IS 12 • IGA 12 • IS 12-S • IGA 12-S...
- Page 2 LumaSense Technologies prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual, without the express written permission of LumaSense Technologies.
-
Page 3: Table Of Contents
Instrument Settings ......................23 4.1 Key panel operation ....................23 4.2 Functions and setting of parameters ..............23 4.3 Factory settings ...................... 24 4.4 Built-in Scanner (IS 12-S and IGA 12-S) ..............24 4.4.1 Adjustments ......................25 IS 12 / IGA 12 Manual... - Page 4 Troubleshooting ......................35 Data Format UPP (Universal Pyrometer Protocol) ............37 10 Reference Numbers ......................39 10.1 Reference numbers instrument ................39 10.2 Reference numbers accessories ................39 Index ............................41 IS 12 / IGA 12 Manual Contents • iv...
-
Page 5: General Information
Warning: The pyrometer is only to be used as described in this manual. It is recommended that you only use accessories provided by the manufacturer. In addition, signs and markings on the device are to be observed and maintained in a legible condition. IS 12 / IGA 12 Manual General Information • 5... -
Page 6: Laser Targeting Light
LumaSense Technologies is not liable for any damages that arise from the use of any examples or processes mentioned in this manual or in case the content of this document should be incomplete or incorrect. -
Page 7: Unpacking The Instrument
Email: eusupport@lumasenseinc.com 1.6 Shipments to LumaSense for Repair All RMA shipments of LumaSense Technologies instruments are to be prepaid and insured by way of United Parcel Service (UPS) or preferred choice. For overseas customers, ship units air- freight, priority one. -
Page 8: Transport, Packing, And Storage
Storing the insturment out of these conditions can cause damage or result in malfunction of the pyrometer. 1.8 Disposal / decommissioning Inoperable IMPAC pyrometers must be disposed of in compliance with local regulations for electro or electronic material. IS 12 / IGA 12 Manual General Information • 8... -
Page 9: Introduction
Introduction 2.1 Appropriate use The IMPAC pyrometers IS 12, IS 12-S, IGA 12, and IGA 12-S are very robust, digital, and highly accurate infrared thermometers with temperature ranges between 250 and 3500 °C for non- contact temperature measurement on metals, ceramics, graphite etc. - Page 10 = 1 s, T = 23 °C) amb. Scanner adjustments: Adjustable scanning angle: 0 to 4° (only IS 12-S and IGA 12-S): Adjustable scanning frequency: 4 to 10 Hz Control panel: 4 keys, operate with tip of ball-point pen Protection class:...
-
Page 11: Dimensions
Calibration of radiation thermometers”, VDI/VDE 3511, Part 4.4. For additional details on this directive, see http://info.lumasenseinc.com/calibration order the directive from “Beuth Verlag GmbH” in D-10772 Berlin, Germany. 2.4 Dimensions Pyrometer with fixed optics: Pyrometer with focusable optics: IS 12 / IGA 12 Manual Introduction • 11... -
Page 12: Physical User Interface
11 Cap for scanner adjustments Main connection cable and additional cable for limit contacts (only types IS 12-S or IGA 12-S) 12 Type label (bottom side of the instrument) 2.6 Accessories (Option) Numerous accessories guarantee easy installation of the pyrometers. The following overview shows a selection of suitable accessories. -
Page 13: Cooling
LED large display Digital display DA 6000 Note: In instances where strong incidence of daylight or lamp light into the view finder can affect the measurement, the ocular has to be covered. IS 12 / IGA 12 Manual Introduction • 13... - Page 14 To ensure consistent document formatting, this page was intentionally left blank. IS 12 / IGA 12 Manual Introduction • 14...
-
Page 15: Controls And Installation
LumaSense offers connecting cables, but they are not part of standard scope of delivery. The main connecting cable has wires for power supply, interface, analog output, external laser switch and external clear of maximum value storage via contact (see Chapter 10, Reference numbers) and 12 pin angle connector. -
Page 16: Connecting The Pyrometer To A Pc
(see also 5.10 kBaud (baud rate)). 6 7 8 9 Typical cable length for RS232 at 19200 Bd is PC’s side Pyrometer’s side 7 m. (soldering side) (soldering side) IS 12 / IGA 12 Manual Controls and Installation • 16... -
Page 17: Connection Of Additional Analyzing Devices
Pyrometers with temperature ranges exceeding 1500 °C are equipped with an adjustable eye protection filter. Turning the ocular changes the filter from bright to dark. IS 12 / IGA 12 Manual Controls and Installation • 17... -
Page 18: Laser Targeting Light
(e.g. optics 1 at 80 mm) and it marks the center of the spot, not its size. IS 12 / IGA 12 Manual Controls and Installation • 18... -
Page 19: Focusable Optics
= 1170 mm a = 550 mm a = 3000 mm a = 9500 mm 10.6 Aperture D [mm]* 13.5 to 17 13.5 to 17 10 to 13 5 to 7 IS 12 / IGA 12 Manual Controls and Installation • 19... - Page 20 This corresponds to the longest or the shortest objective length. As an example, a further value between max. and min. is shown. The objective length “S” can be measured with a caliper. IS 12 / IGA 12 Manual Controls and Installation • 20...
- Page 21 A circle marks the position of the measuring spot. Adjusting the measuring distance with help of the laser targeting light: On the focused measuring distance the laser has its smallest spot size and is illustrated exactly. IS 12 / IGA 12 Manual Controls and Installation • 21...
- Page 22 To ensure consistent document formatting, this page was intentionally left blank. IS 12 / IGA 12 Manual Controls and Installation • 22...
-
Page 23: Instrument Settings
Pushing the button longer changes the settings in fast mode (the keys and ENT are blocked if the keyboard is locked via the interface commands or/and during a measurement in combination with InfraWin software). IS 12 / IGA 12 Manual Instrument Settings • 23... -
Page 24: Factory Settings
Scanning frequency (only IS 12-S and IGA 12-S): 5 Hz 4.4 Built-in Scanner (IS 12-S and IGA 12-S) The pyrometers IS 12-S and IGA 12-S with fixed optics are equipped with a scanning mechanism built into the pyrometer housing which moves the measuring beam up and down. -
Page 25: Adjustments
Note: The potentiometer has no mechanical stop position. Turning the potentiometer to the left decreases the values, turning right the values are increasing. After making the required adjustments, ensure that you re-install the cover. IS 12 / IGA 12 Manual Instrument Settings • 25... - Page 26 To ensure consistent document formatting, this page was intentionally left blank. IS 12 / IGA 12 Manual Instrument Settings • 26...
-
Page 27: Parameter Descriptions / Settings
90% of the recorded temperature difference. In the “0.00” position, the device operates using its time constant. The dynamic exposition time 10.00 s adjustment prolongs the exposure time at the lower range limit. IS 12 / IGA 12 Manual Settings / Parameter Descriptions • 27... -
Page 28: Clear Time Of The Maximum / Minimum Value Storage (T )
• clear times must be at least 3 times longer than the response time • only maxima with full maximum value can be recorded, which appear at least 3 times longer than the response time. IS 12 / IGA 12 Manual Settings / Parameter Descriptions • 28... -
Page 29: From / To (Beginning And End Of Sub Range)
A standard cable length with RS232 for 19200 Bd is 7 m, 2.4 kBd with RS485 2 km. The baud rate is reduced by 50% if the transmission 115.2 kBd distance is doubled. IS 12 / IGA 12 Manual Settings / Parameter Descriptions • 29... -
Page 30: Test Current Output (10 Ma)
2 °C min. or 1% of the span of the temperature sub range above the minimum temperature, the supply voltage (pin K) is connected to pin J. IS 12 / IGA 12 Manual Settings / Parameter Descriptions • 30... -
Page 31: Software Infrawin
The first time you load InfraWin 5, you will be prompted to select a default language. The InfraWin software is available in German, English, Spanish, French, Portuguese, and Chinese. Once installed, click Language/Languages if you would like to select another language. IS 12 / IGA 12 Manual Software InfraWin • 31... - Page 32 To ensure consistent document formatting, this page was intentionally left blank. IS 12 / IGA 12 Manual Software InfraWin • 32...
-
Page 33: Maintenance
A suitable objective wrench is required to replace fixed optics. The replacement optics consists of the lens support and a fixed lens. A sticker with the optic data is fixed inside the lens support. IS 12 / IGA 12 Manual Maintenance • 33... -
Page 34: Focusable Optics Replacement
Fix the lens with a new O-ring and the new fixing ring. On the inside of this ring is the sticker with the optics data. IS 12 / IGA 12 Manual Maintenance • 34... -
Page 35: Troubleshooting
Temperature Indication is fluctuating, probably caused by changing emissivity ⇒ Wrong pyrometer type, use of ratio pyrometer recommended Laser targeting light • Laser targeting light fails ⇒ Instruments temperature above 55 °C. Use cooling jacket. IS 12 / IGA 12 Manual Troubleshooting • 35... - Page 36 To ensure consistent document formatting, this page was intentionally left blank. IS 12 / IGA 12 Manual Troubleshooting • 36...
-
Page 37: Data Format Upp (Universal Pyrometer Protocol)
External deletion: AAlx Simulation of an external deletion contact Setting of AAm1XXXXYYYY XXXX (hex 4-digit) beginning of temp. range (°C) temperature YYYY (hex 4-digit) end of temp. range (°C) sub range: IS 12 / IGA 12 Manual Data Format UPP • 37... - Page 38 (16 ASCII-characters) Device type / AAve Output: XXYYZZ (6-digit decimal) software version: XX = 07 (IS 12, IS 12-S, IGA 12, IGA 12-S) YY = Month of software version ZZ = Year of software version Software version AAvs tt.mm.yy XX.YY in detail: tt = Day;...
-
Page 39: Reference Numbers
3 852 550 Power supply NG 2D, as NG 0D: additionally, with 2 limit switches (not for US sale) 3 826 750 USB to RS485 adapter cable, HS-Version,1.8 m long IS 12 / IGA 12 Manual Reference Numbers • 39... - Page 40 Ball and socket mounting (steel) for rough ambience or cooling jacket 3 834 320 Mounting angle for Series 12 3 835 590 90° mirror for IS 12 & IGA 12 (for fixed optics only) 3 843 260 Rotary mirror attachment ROT 10 3 848 610...
-
Page 41: Index
Emissivity 27 Parameter display 23 Exposure Time 27 Parameter indicator 24 PC 16 Physical User Interface 12 Pin assignment 15 Factory setting 24 Focusable optics 19 Functions 23 Reference numbers Accessories 39 IS 12 / IGA 12 Manual Index • 41... - Page 42 Temperature display in °C or °F 29 Test Current Output 30 Thru-lens view finder 17 Transport 8 Troubleshooting 35 Unpacking the Instrument 7 UPP data format 37 Wait Time 30 Warranty 6 IS 12 / IGA 12 Manual Index • 42...
