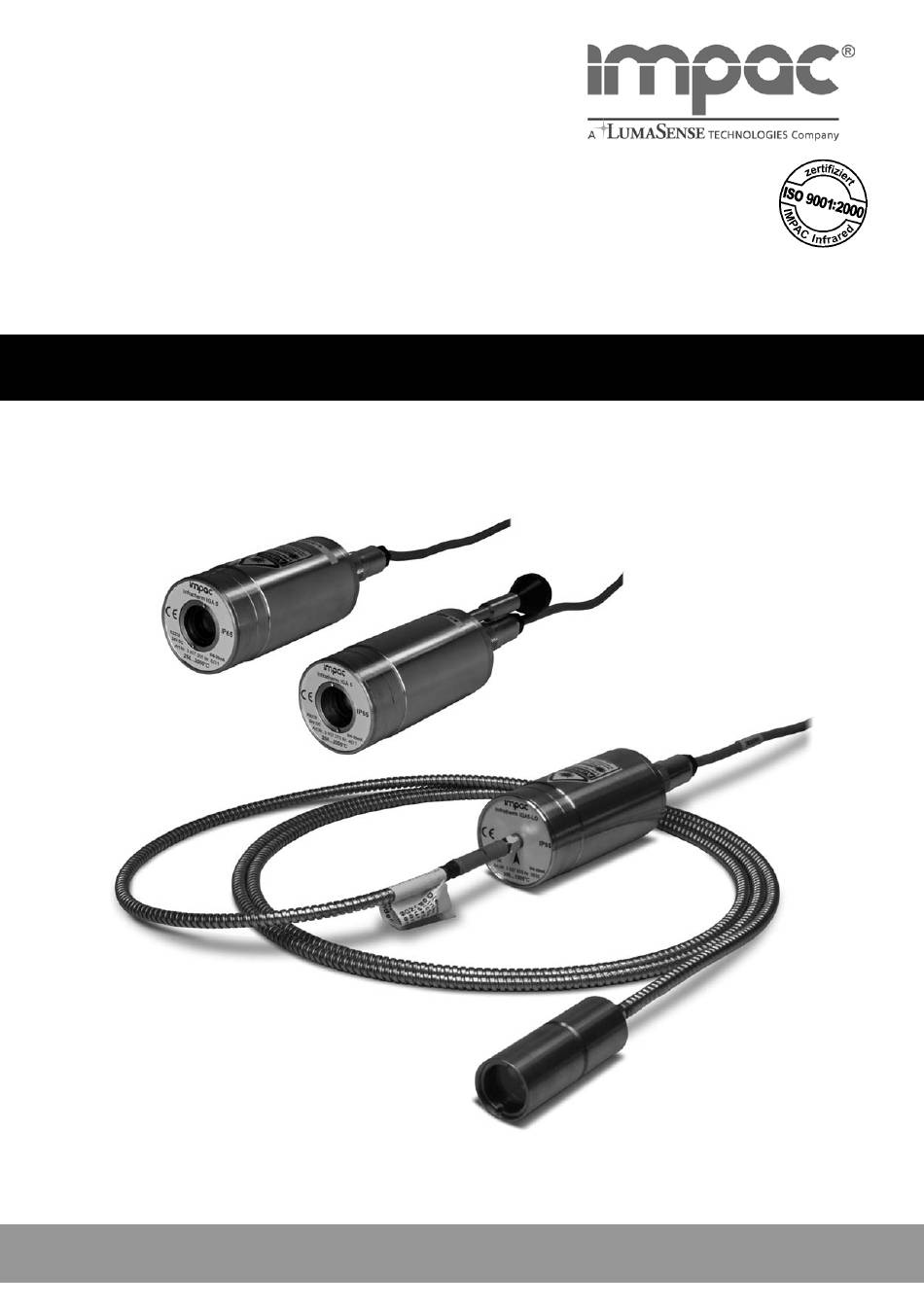

- Page 1 IS 5 · IGA 5 IS 5-LO · IGA 5-LO INFRATHERM-Pyrometer Betriebsanleitung · User Manual IMPAC - Spezialist für berührungslose Temperaturmessung IMPAC - Specialist in non-contact thermometry...
-
Page 2: Table Of Contents
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Content General ..............................33 Information about the user manual ..................... 33 Limit of liability and warranty ....................... 33 Legend ............................33 Terminology ..........................33 Copyright ............................. 33 Disposal / decommissioning...................... - Page 3 INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Software settings........................... 45 Clear time intervals t (integrated maximum value storage)............45 Internal temperature of the pyrometer ..................46 Bus address ..........................46 Baud rate............................. 47 Wait time (tw) ..........................47 Settings via interface and software .....................
-
Page 4: General
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO General Information about the user manual Congratulations on choosing this high quality and highly efficient IMPAC pyrometer. Please read this manual carefully, step by step, including all notes to security, operation and maintenance before using the pyrometer. -
Page 5: Disposal / Decommissioning
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Disposal / decommissioning Inoperable IMPAC pyrometers have to be disposed corresponding to the local regulations of electro or elec- tronic material. Technical data Temperature range: IS 5: 600 ... -
Page 6: Dimensions
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Dimensions: see 2.1 Housing: Stainless steel Operating position: CE label: According to EU directives about electromagnetic immunity Laser targeting light Laser targeting light (650 nm), Laser power level < 1 mW, (optional): laser class 2 per IEC 60825-1-3-4 Additional technical data for pyrometers with built-in video module (IS 5-TV;... -
Page 7: Scope Of Delivery
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Pyrometers with a PID controller (-C) are programmed by the software to continuously compare the actual temperature to the preset desired temperature value and to provide an output signal to regulate this tem- perature. -
Page 8: Electrical Installation
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Electrical Installation The Infratherm IS 5; IS 5-LO; IGA 5 and IGA 5-LO are powered by 24 V DC ± 25% (very well stabilized, ripple max. 50 mV). When connecting the device to the power supply ensure correct polarity. The device does not need to be warmed up or run in advance and is immediately ready for use. -
Page 9: Connecting The Pyrometer To A Pc
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO (fixed socket: model ERA.0S.302.CLL, straight plug: model FFE.0S.302.CLAC50 Fa. Lemosa GmbH, http://www.lemo.de) Pin 1 Video-Output: BAS-Signal (white) → Cinch: middle pin SCART: Pin 20 → Pin 2 Video- Output: Ground (brown) Cinch: shield SCART: Pin 17... -
Page 10: Connection Schematic For Analysing Devices
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Connection schematic for analysing devices white 230V ~ Additional analyzing instruments, for power supply 24 V DC example a LED digital display instru- brown ment only needs to be connected to a IS 5;... -
Page 11: Connection Overview Is 5-Lo; Iga 5-Lo
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Displays: For temperature indication of the pyrometer IMPAC offers several digital displays which can also be used for remote parametrizing of the pyrometer. Digital display DA 6000 LED large display The flange system (for IS 5;... -
Page 12: Instrument Alignment
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Instrument alignment View finder The IS 5 and IGA 5 can be equipped with a view finder (through lens sighting) which is used for the align- ment of the pyrometer to the measured object. The view finder is true-sided and parallax-free; a circle marks the position of the measuring spot but not exactly the spot size. -
Page 13: Types Is 5 And Iga 5
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO 7.1.1 Types IS 5 and IGA 5 Temperature range Temperature range IS 5 IGA 5 IS 5 IGA 5 (for long (for short MB 18 MB 18 distance distances MB 25... -
Page 14: Minimum Bending Radius
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO The fibre optic cable of the IGA 5-LO should be connected so that the arrow Arrow Red fibre mark markings on the brand label of the signal processor and those on the fibre markings optic cable are facing each other. -
Page 15: Analog Output 0
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Analog output 0...20 ⇔ 4...20 mA (DIP switch nr. 3) When the switch is in the ON position, the analog output will be 0 ... 20 mA; in the Off Settings: position, the analog output will be 4 ... -
Page 16: Emissivities Of Common Materials
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO 8.5.1 Emissivities of common materials Emissivity [%] Emissivity [%] IS 5 IGA 5 IS 5 IGA 5 Measuring object Measuring object IS 5-LO IGA 5-LO IS 5-LO IGA 5-LO (0.8...1.1 µm) (1.45...1.8 µm) -
Page 17: Internal Temperature Of The Pyrometer
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO 0.01...25 s: If any clear time between 0.01 s and 25 s is set, the maximum value is estimated and held in double storage mode. After the entered time the storage will be deleted. extern: The external clearing can be activated and used within an own software (see section 14, Data ®... -
Page 18: Baud Rate
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Baud rate The transmission rate of the serial interface in Baud (Bd) is dependent on the length of Settings: the cable. A standard cable length with RS232 for 19200 Bd is 7 m, with RS485 2 km. 1.2 kBd The baud rate is reduced by 50% if the transmission distance is doubled. -
Page 19: The Menu
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO 10.4 The menu Opens a saved file Storage of measured values for further processing Online measurement with color bar display Online measurement with graphic display Setting of the parameters of the instrument Setting of interface, baud rate and pyrometer addresses (RS485) Time interval between two measurements Number of connected instruments (max. -
Page 20: Configuration Of The Display On The Tv Screen
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO • The devices IS 5-C and IGA 5-C have an additional PID-controller. The functions of this controller can be activated with a click on the “PID” icon ( The open / save button enable to store and recall own pyrometer configurations. -
Page 21: The Pid Controller
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO 10.8.1 The PID controller The IS 5-C, IS5-LO-C, IGA 5-C and IGA 5-LO-C are equipped with an integrated PID controller. This enables automatic controlling and monitoring of processes. The controller compares the current measuring tempera- ture with the target temperature value, calculates the control signal and gives a controller output signal of 0 or 4 ... -
Page 22: Self Tuning Algorithm
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO 10.8.2 Self tuning algorithm In approaching the desired temperature, the control parameters Xp, Ti and Td can be determined using the controller. Normally, the determined parameters can achieve the desired temperature without significant over- or undershooting. -
Page 23: Measurement (Online Trend)
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO 10.10 Measurement (online trend) This window displays: • temperature as graphical diagram • current temperature • quantity of the measured values and file size of the current measurement The example shows a sample reading over the period of approx. -
Page 24: Output Trend (Analyzing)
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO 10.13 Output trend (analyzing) The graph’s curve depicts the temperature change over time within the specified temperature range. Additionally, other information appears in this window; such as recorded time (x-axis) and temperature in degrees (y-axis) as well as the time and temperature at the vertical cursor line which can be dragged with the... -
Page 25: Maintenance
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Maintenance 12.1 Safety Attention during pyrometer services: Should the pyrometer be integrated in a running machine process the machine should be switched off and secured against restart before servicing the pyrometer. 12.2 Optics The pyrometer does not have any parts which require regular service, only the lens has to be kept clean. -
Page 26: Data Format Upp (Universal Pyrometer Protocol)
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Data format UPP (Universal Pyrometer Protocol) Note: The online offline switch (DIP-switch nr. 4) must be in the online position before adjusting the parameters “emissivity factor”, “setting measuring time” and “setting analog output“... - Page 27 INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Device model / AAve Output: VVMMJJ software version: VV = 51 (IS 5; IS 5-LO) VV = 52 (IGA 5; IGA 5-LO) MM = month JJ = year of the software version Device number: AAsn Output: =DDDD 5-digit decimal...
-
Page 28: Reference Numbers
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Bit 1 = 1 gain = 0 no P-control gain ∞ Bit 0 = 1 on/off controller AARsX X = 0 or 1 deactivates / activates the controller starting self-tuning: AARt Starts self-tuning algorithms... -
Page 29: Reference Numbers Of Accessories
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO IS 5-LO; IGA 5-LO (with laser targeting light) Type Temperature range RS232 RS485 IS 5-LO MB 20: 600 ... 2000°C 3 857 750 3 857 760 IS 5-LO MB 25: 800 ... -
Page 30: Index
INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO Index Accessories ............39 Laser targeting light ........36, 41 Analog output............44 Appropriate use ..........35 Maintenance ............54 Maximum value storage....... 37, 45 Baud rate ............47 Measurement (color bar) ........51 Bending radius............43 Measurement (online trend)....... - Page 31 IMPAC Infrared GmbH Temperaturmessgeräte Kleyerstraße 90 D - 60326 Frankfurt/Main Tel.: +49 (0)69 / 9 73 73 - 0 Fax: +49 (0)69 / 9 73 73 - 167 Internet: www.impacinfrared.com E-Mail: info@impacinfrared.com 3 869 207-a...
