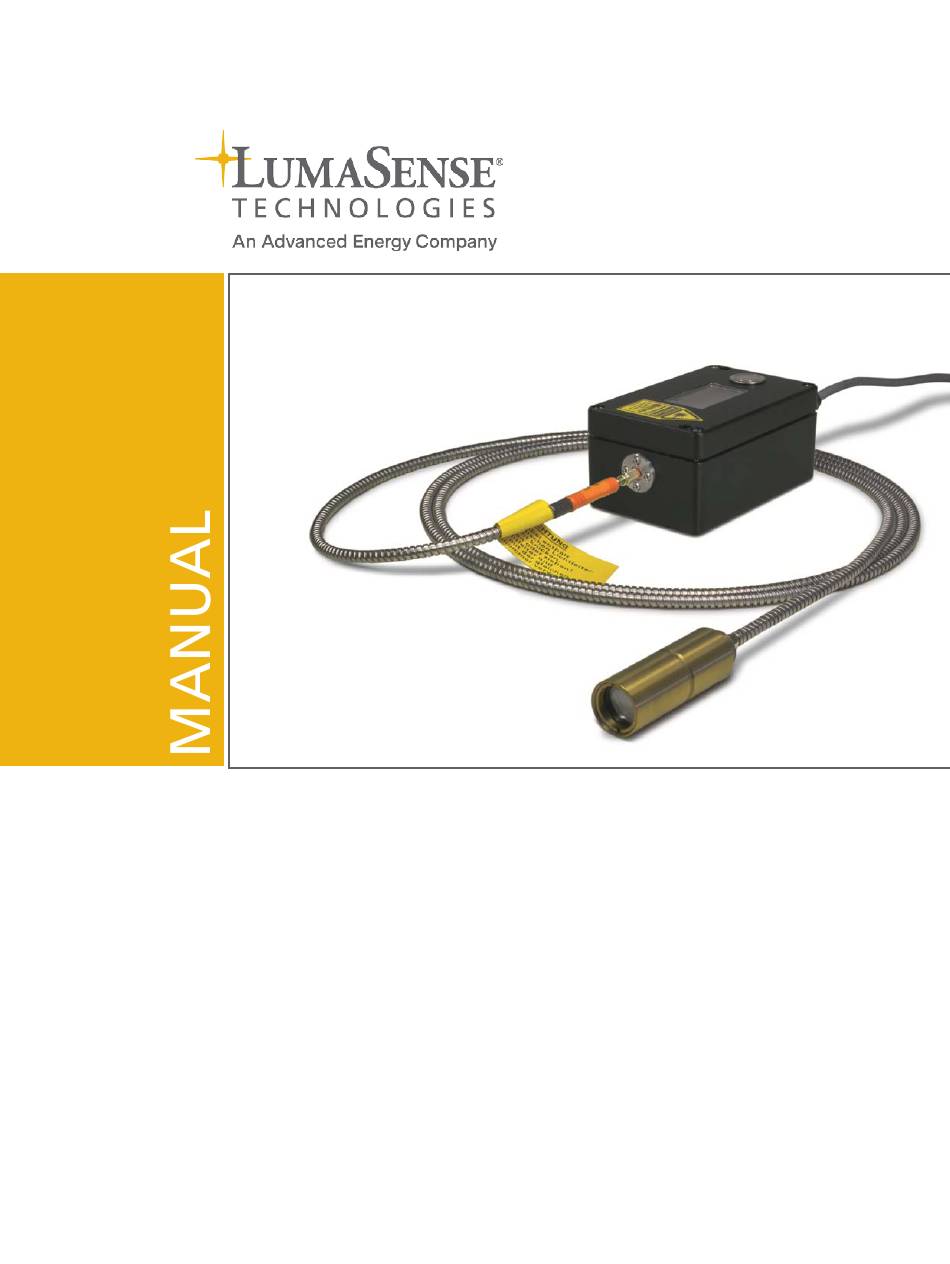

- Page 1 IMPAC Pyrometer IS 50-LO plus • IGA 50-LO plus...
- Page 2 LumaSense Technologies prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual, without the express written permission of LumaSense Technologies or Advanced Energy Industries, Inc.
-
Page 3: Table Of Contents
Converter ........................ 16 3.2.3 Fiber ........................16 Minimum Bending Radius......................16 Ambient Temperature ......................17 3.3 Sighting ........................17 3.3.1 Laser targeting light ....................17 3.4 Optics ........................18 IS 50-LO plus / IGA 50-LO plus Manual Contents • iii... - Page 4 Troubleshooting ......................31 Data format UPP (Universal Pyrometer Protocols) ............33 10 Reference Numbers ......................35 10.1 Reference numbers instrument ................35 10.2 Reference numbers accessories ................35 Index ............................37 IS 50-LO plus / IGA 50-LO plus Manual Contents • iv...
-
Page 5: General Information
This is a visible red light with a wavelength between 630 and 660 nm and a maximum power of 1 mW. The laser is classified as product of laser class 2. IS 50-LO plus / IGA 50-LO plus Manual General Information • 5... -
Page 6: Electrical Connection
LumaSense Technologies is not liable for any damages that arise from the use of any examples or processes mentioned in this manual or in case the content of this document should be incomplete or incorrect. -
Page 7: Unpacking The Instrument
Email eusupport@lumasenseinc.com 1.6 Shipments to LumaSense for Repair All RMA shipments of LumaSense Technologies instruments are to be prepaid and insured by way of United Parcel Service (UPS) or preferred choice. For overseas customers, ship units air- freight, priority one. -
Page 8: Transport, Packing, And Storage
Storing the instrument out of these conditions can cause damage or result in malfunction of the pyrometer. 1.8 Disposal / Decommissioning Inoperable instruments must be disposed of in compliance with local regulations for electronic materials. IS 50-LO plus / IGA 50-LO plus Manual General Information • 8... -
Page 9: Introduction
2 Introduction 2.1 Appropriate use The pyrometers IS 50-LO plus and IGA 50-LO plus are digital, highly accurate pyrometers with fiber optics for non-contact temperature measurement on metals, ceramics, graphite etc. between 250 °C and 3500 °C. The IS 50/055-LO plus and IS 50/067-LO plus are special versions with extremely short wavelengths where e.g. - Page 10 1.45 ... 1.8 µm Signal Processing: Photo current, digitized immediately Detector: IS 50-LO plus; IS 50/055-LO plus; IS 50/067-LO plus; IS 50-Si-LO plus; IS 50-Al-LO plus: Si IGA 50-LO plus: InGaAs Power Supply: 24 V AC or DC (12 … 30 V AC or DC) (AC: 48 … 62 Hz) Power Consumption: Max.
-
Page 11: Dimensions
“Beuth Verlag GmbH” in D-10772 Berlin, Germany. 2.4 Dimensions Converter: Optical head I: Optical head II: (fixed adjusted) Optical head II: (focusable) All dimensions in mm IS 50-LO plus / IGA 50-LO plus Manual Introduction • 11... -
Page 12: Physical User Interface
In addition to the built-in temperature indicator of the pyrometer, LumaSense offers several digital displays which can also be used for remote parametrizing of the pyrometer. Digital display DA 6000 IS 50-LO plus / IGA 50-LO plus Manual Introduction • 12... -
Page 13: Controls And Installation
LumaSense offers connecting cables, but they are not part of standard scope of delivery. The main connecting cable has wires for power supply, interface, analog output, external laser switch and external clear of maximum value storage via contact and 12 pin angle connector (see Chapter 10, Reference numbers). -
Page 14: Connecting The Pyrometer To A Pc
5.7 kBaud (baud rate)). 6 7 8 9 Typical cable length for RS232 at 19200 Bd is PC’s side Pyrometer’s side 7 m. (soldering side) (soldering side) IS 50-LO plus / IGA 50-LO plus Manual Controls and Installation • 14... -
Page 15: Connecting To Rs485 Interface
500 Ohm). white 230 V ~ Power supply 24 V DC brown green °C LED digital display Controller Writer Converter yellow 3.2 Mechanical Installation 3.2.1 Overview IS 50-LO plus / IGA 50-LO plus Manual Controls and Installation • 15... -
Page 16: Converter
300 mm 500 mm Wound up (max. 50 °C): 120 mm 300 mm 500 mm Note: A hot fiber optic cable should not be exposed to continual movement! IS 50-LO plus / IGA 50-LO plus Manual Controls and Installation • 16... -
Page 17: Ambient Temperature
Note: The laser warning signs on the pyrometer should be easily viewable at all times, even after it has been installed. IS 50-LO plus / IGA 50-LO plus Manual Controls and Installation • 17... -
Page 18: Optics
= measuring distance = spot size D = aperture Note: The measuring object must be bigger than or at least as big as the spot size of the pyrometer. IS 50-LO plus / IGA 50-LO plus Manual Controls and Installation • 18... -
Page 19: Adjusting The Required Measuring Distance
Caution: Do not look directly into the laser beam! Laser class 2 according to IEC 60825-1-3-4. IS 50-LO plus / IGA 50-LO plus Manual Controls and Installation • 19... - Page 20 To ensure consistent document formatting, this page was intentionally left blank. IS 50-LO plus / IGA 50-LO plus Manual Controls and Installation • 20...
-
Page 21: Instrument Settings
LC-display the test current is switched off. Also, after 1 minute idle time the “test” current is switched off. The unit will be in the measurement mode again. IS 50-LO plus / IGA 50-LO plus Manual Instrument Settings • 21... -
Page 22: Settings At The Instrument
Analog output (mA) = 0 … 20 mA Wait time (t ) for RS485 = 10 Sub range (from / to) same as temperature range Interface (RS485 / RS232) = RS232 IS 50-LO plus / IGA 50-LO plus Manual Instrument Settings • 22... -
Page 23: Parameter Descriptions / Settings
(360 ... 800 °C) (1400 °C) Emissivity values for the IS 50-Si-LO plus are listed below: ε Measuring object Emissivity Silicon (360 ... 800 °C) (1400 °C) IS 50-LO plus / IGA 50-LO plus Manual Parameter descriptions / settings • 23... -
Page 24: Exposure Time (T )
Here the maximum value for each object must be indicated. In this mode the maximum value is stored until a new hot (or cold) object appears in the measuring beam. The temperature IS 50-LO plus / IGA 50-LO plus Manual Parameter descriptions / settings • 24... -
Page 25: Clear Time Of The Maximum / Minimum Value Storage
A standard cable length with RS232 for 19200 Bd is 7 m, 115.2 kBd with RS485 2 km. The baud rate is reduced by 50% if the transmission distance is doubled. IS 50-LO plus / IGA 50-LO plus Manual Parameter descriptions / settings • 25... -
Page 26: Temperature Display In °C Or °F
5.11 Error status (Status) In case of a device error the pyrometer displays a hex code which identifies this error to LumaSense service. The standard display at this point is “ok”. IS 50-LO plus / IGA 50-LO plus Manual Parameter descriptions / settings • 26... -
Page 27: Software Infrawin
The first time you load InfraWin 5, you will be prompted to select a default language. The InfraWin software is available in German, English, Spanish, French, Portuguese, and Chinese. Once installed, click Language/Languages if you would like to select another language. IS 50-LO plus / IGA 50-LO plus Manual Software InfraWin • 27... - Page 28 To ensure consistent document formatting, this page was intentionally left blank. IS 50-LO plus / IGA 50-LO plus Manual Software InfraWin • 28...
-
Page 29: Maintenance
If changing the fiber or the optical head a recalibration of the pyrometer should be done. Replacement can be necessary if the lens is scratched or the pyrometer will be used for other measuring distances. IS 50-LO plus / IGA 50-LO plus Manual Maintenance • 29... - Page 30 To ensure consistent document formatting, this page was intentionally left blank. IS 50-LO plus / IGA 50-LO plus Manual Maintenance • 30...
-
Page 31: Troubleshooting
(below 130 °C) to incandescent lamps or very bright daylight (not valid for fluorescent tube). For a correct measurement, strong external light to the measured object should be avoided. IS 50-LO plus / IGA 50-LO plus Manual Troubleshooting • 31... - Page 32 To ensure consistent document formatting, this page was intentionally left blank. IS 50-LO plus / IGA 50-LO plus Manual Troubleshooting • 32...
-
Page 33: Data Format Upp (Universal Pyrometer Protocols)
YYYY = end of temperature range Setting of AAm1XXXXYYYY XXXX (hex 4-digit) beginning of temp. range (°C) Temperature YYYY (hex 4-digit) end of temp. range (°C) Sub Range: IS 50-LO plus / IGA 50-LO plus Manual Data format UPP • 33... - Page 34 Digit 8 and 9 (00 ... 97): Address Digit 10 (0 ... 6 or 8): Baud rate Digit 11 (0): always 0 Device Type: AAna Output: “IS 50-LO plus” or “IGA 50-LO plus” (16 ASCII-characters) Serial Number: AAsn Output: XXXX (hex 4-digit) Device Type /...
-
Page 35: Reference Numbers
Ordering note: The Series 50-LO plus pyrometers can be configured with different optical fiber lengths and optical heads as well as with various optional extras. To determine the part number and the price for the desired combination please contact LumaSense or your LumaSense sales representative. - Page 36 Replacement fiber blue, 12,5 m 3 838 079 Replacement fiber blue, 15 m 3 838 081 Replacement fiber blue, 16 m 3 838 082 Replacement fiber blue, 20 m IS 50-LO plus / IGA 50-LO plus Manual Reference Numbers • 36...
-
Page 37: Index
Emissivity 23 Packing 8 Error status 26 PC 14 Exposure time 24 Physical User Interface 12 Pin assignment 13 Pin J 14 Factory setting 22 Fiber 16 Reference numbers IS 50-LO plus / IGA 50-LO plus Manual Index • 37... - Page 38 Technical Data 9 Temperature display in °C or °F 26 Transport 8 Troubleshooting 31 Universal Pyrometer Protocols 33 Unpacking the Instrument 7 UPP 33 Wait Time 26 Warranty 6 IS 50-LO plus / IGA 50-LO plus Manual Index • 38...
