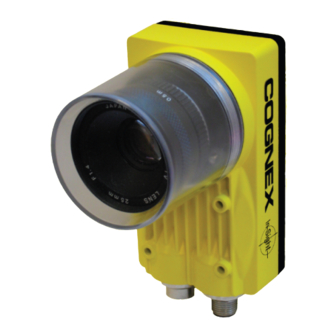

Summary of Contents for Cognex In-Sight 5000 Series
Page 1
Addendum Sheet In-Sight 5000 Series Vision System Installation Manual Addendum ® The In-Sight 5000 series of vision systems now includes the In-Sight 5605, a 5-megapixel vision system that supports Gigabit Ethernet communications. This addendum includes hardware specifications to support this vision system, along with updates and corrections to existing legal notices, precautions, installation steps and specifications.
Cognex Corporation or its licensor. Cognex Corporation assumes no responsibility for the use or reliability of its software on equipment that is not supplied by Cognex Corporation. Cognex Corporation makes no warranties, either express or implied, regarding the described software, its merchantability, non-infringement or its fitness for any particular purpose.
Page 3
Notes: • For the most up-to-date regulations and conformity information, please refer to the In-Sight online support site: http://www.cognexsensors.com/In-Sight Declaration of Conformity Manufacturer: Cognex Corporation One Vision Drive Natick, MA 01760 USA Declares this -marked Machine Vision System Product Product Type...
Page 4
Declaration of Conformity Manufacturer: Cognex Corporation One Vision Drive Natick, MA 01760 USA Declares this -marked Machine Vision System Product Product Type In-Sight 5604: Type 800-5874-1R, Type 800-5874-2R Complies With: 2004/108/EC Electromagnetic Compatibility Directive Compliance Standards EN 55022:2006 +A1:2007 Class B...
Page 5
Declaration of Conformity Manufacturer: Cognex Corporation One Vision Drive Natick, MA 01760 USA Declares this -marked Machine Vision System Product Product Type: In-Sight 5605: Type 821-0032-1R Complies With: 2004/108/EC Electromagnetic Compatibility Directive EN55022:2006 +A1:2007 Class A Compliance Standards EN61000-3-2:2006 EN61000-3-3:1995 +A1:2001 +A2:2005...
Page 6
• In-Sight 5000 series vision systems are intended to be supplied by a UL or NRTL listed power supply with a 24VDC output rated for at least 600 mA continuous and a maximum short circuit current rating of less than 8A and a maximum power rating of less than 100VA and marked Class 2 or Limited Power Source (LPS).
Page 7
In-Sight 5604 and 5605 Standard Components ® • This information contains updates or corrections to pages 3 and 4 of the In-Sight 5000 Series Vision System Installation Manual. Notes: • Cables are sold separately. In-Sight 5604 and 5605 vision systems are shipped with the components listed in Table 1; component descriptions are given in Table 2.
Page 8
I/O module. Table 3: I/O Module Compatibility I/O Module Vision System Discrete Inputs Discrete Outputs CIO-1350 Breakout All In-Sight 5000 series vision systems none 2 general Module (except In-Sight 5604 and 5605) CIO-1400 All In-Sight 5000 series vision systems...
Page 9
5000 Series Vision Note: System Installation Manual. This section describes the connection of the In-Sight 5000 series vision system to its standard and optional components. For a complete list of options and accessories, contact your local Cognex sales representative. • For the In-Sight 5100 series and 5400 series, when the vision system is powered up, User 0 LED and User 1 LED both momentarily turn on.
In-Sight 5000 Series Vision System (except 5400R): Remove the protective lens cap and the protective film covering the CCD, if present. Attach a C-Mount lens to the vision system (Figure 1).
Page 11
Connecting the Network and Breakout Cables ® • This information contains updates or corrections to pages 14 and 15 of the In-Sight 5000 Series Vision System Installation Manual. Notes: • Cables are sold separately. The vision system has an ENET connector and 24VDC connector. The ENET connector provides the Ethernet connection for network communications.
Page 12
Connect the power supply to the Breakout cable (Figure 3). Attach the Breakout cable to the 24VDC connector on the vision system. • Unused bare wires can be clipped short or tied back using a tie made from non-conductive material. Keep all bare wires separated from the +24VDC wire. Notes: •...
Page 13
In-Sight 5603, 5600 and 5605 Vision System Specifications ® This information contains updates or corrections to pages 24 and 25 of the In-Sight 5000 Series Note: Vision System Installation Manual. Table 4: 5603, 5600 and 5605 Vision System Specifications Specification In-Sight 5603 In-Sight 5600 In-Sight 5605...
Page 14
Table 4: 5603, 5600 and 5605 Vision System Specifications (Cont.) Specification In-Sight 5603 In-Sight 5600 In-Sight 5605 Mechanical Material Die-cast aluminum housing. Finish Painted/Powder coat (back plate). Mounting Eight M4 threaded mounting holes (four front and four back). 134.4mm (5.29in) x 124.1mm Dimensions 99.9mm (3.93in) x 124.1mm (4.88in) x 61.4mm (2.42in) with (4.88in) x 61.4mm (2.42in)
Page 15
In-Sight 5604 Line Scan Vision System Specifications ® This information contains updates or corrections to pages 26 and 27 of the In-Sight 5000 Series Note: Vision System Installation Manual. Table 5: 5604 Line Scan Vision System Specifications Specification In-Sight 5604 Minimum Firmware Requirement In-Sight version 4.3.0 Memory...
Page 16
Table 5: 5604 Line Scan Vision System Specifications (Cont.) Specification In-Sight 5604 Environmental Temperature 0°C to 50°C (32°F to 122°F) Operating Storage –30°C to 80°C (22°F to 176°F) Humidity 95%, non-condensing (Operating and Storage) Protection For environments where protection is required, use an optional protective enclosure. Shock 80 G Shock with 150 gram lens attached per IEC 68-2-27.
I/O Specifications ® This information contains updates or corrections to pages 28 - 31 of the In-Sight 5000 Series Note: Vision System Installation Manual. Cable and connector specifications and connection examples for the Acquisition Trigger input, encoder inputs (In-Sight 5604 only) and the high-speed outputs are provided in the following sections.
TRG+ 4.7K TRG- 4.7K 28V Max. Across input pins - Transition approx. 8V (Nom). Figure 4: Acquisition Trigger Input Schematic Encoder Inputs (In-Sight 5604 only) The Breakout cable (see Table 9 on page 21 for cable pin-outs) can be used for communication between the In-Sight 5604 line scan vision system and a single or quadrature encoder.
High-Speed Outputs In-Sight 5000 series vision systems feature two built-in, high-speed outputs. Table 8: High-Speed Output Specifications Specification Description Voltage 28V maximum through external load. Current All In-Sight 5000 series 200mA maximum sink current. (except In-Sight 5600 OFF state leakage current 200µA maximum.
Page 20
Example 2 To connect to an NPN-compatible PLC input, connect Output 0 or Output 1 directly to the PLC input. When enabled, the output pulls down the PLC input to 0V. Breakout Cable NPN PLC Power Supply NPN Compatible Input 24VDC 24VDC Figure 7: High-Speed Output Connection Example 2...
Page 21
24VDC Breakout Cable ® This information contains updates or corrections to page 32 of the In-Sight 5000 Series Vision Note: System Installation Manual. The 24VDC Breakout connector provides access to power, serial communications, trigger and high- speed outputs. The Breakout cable is not terminated. When using the In-Sight 5604, refer to Table 7 for encoder input specifications.
The I/O Module cable is used with the optional I/O module and 1350 Breakout Module (Table 2 specifies which I/O modules are compatible with your In-Sight 5000 series vision system). The I/O Module cable connects the vision system directly to the applicable I/O module via the DB15 connector.
Ethernet Cable ® This information contains updates or corrections to page 34 of the In-Sight 5000 Series Vision Note: System Installation Manual. The Ethernet cable is used to connect the vision system to other network devices. The Ethernet cable can be connected to a single device or provide connections to multiple devices via a network switch or router.
Page 24
5604 and 5605 Vision System Dimensions ® • This information contains updates or corrections to page 46 of the In-Sight 5000 Series Vision System Installation Manual. • The 80mm Lens Cover Kit is not supported with P/N 800-5874-1R. Notes: • All dimensions are in millimeters [inches] and are for reference purposes only. •...
