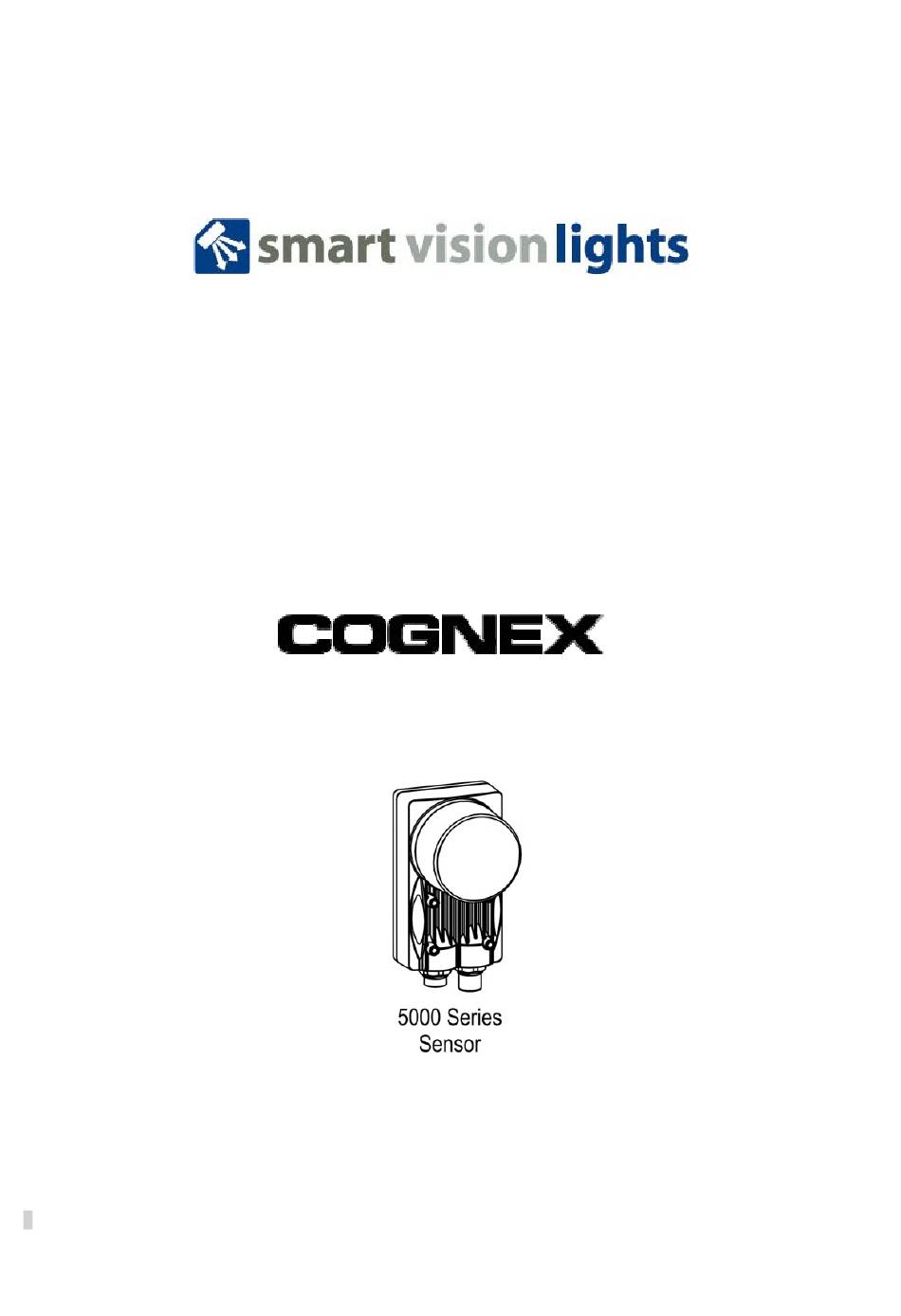

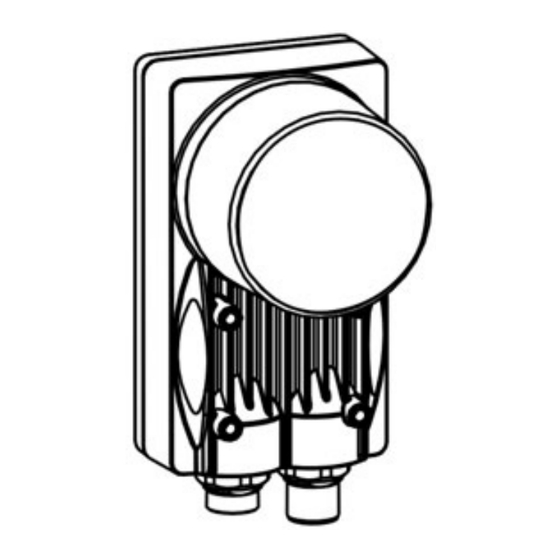

  • Page 1 Connecting Smart Vision Lights In-Sight 5000 Series www.smartvisionlights.com...
  • Page 2 Overview The Smart Vision Light connects to 24VDC power supply and then requires a trigger signal. The Smart Vision Light will illuminate for the duration of the strobe/trigger pulse. By using the high speed output HS-OUT1 this can easily be accomplished.
  • Page 3 Note: Ground on 5000 camera and Ground on Smart Vision Light (Blue wire) must share a common ground. Connections LIGHT CONNECTIONS  Connect +24VDC to Smart Vision Light +24VDC (Brown Wire)  Connect 0VDC to Smart Vision Light Common (Blue Wire) ...
  • Page 4 I/O Connections +24VDC Power Supply HS-OUT1 White/Blue WHITE Green (Gray) (NPN TRIGGER) (24VDC)Full Intensity Analog Control Line BLUE BROWN From Light (0VDC) (+24VDC) From Light From Light Smart Vision Light HS-OUT1 (White/Blue) to NPN Strobe (White) www.smartvisionlights.com...
