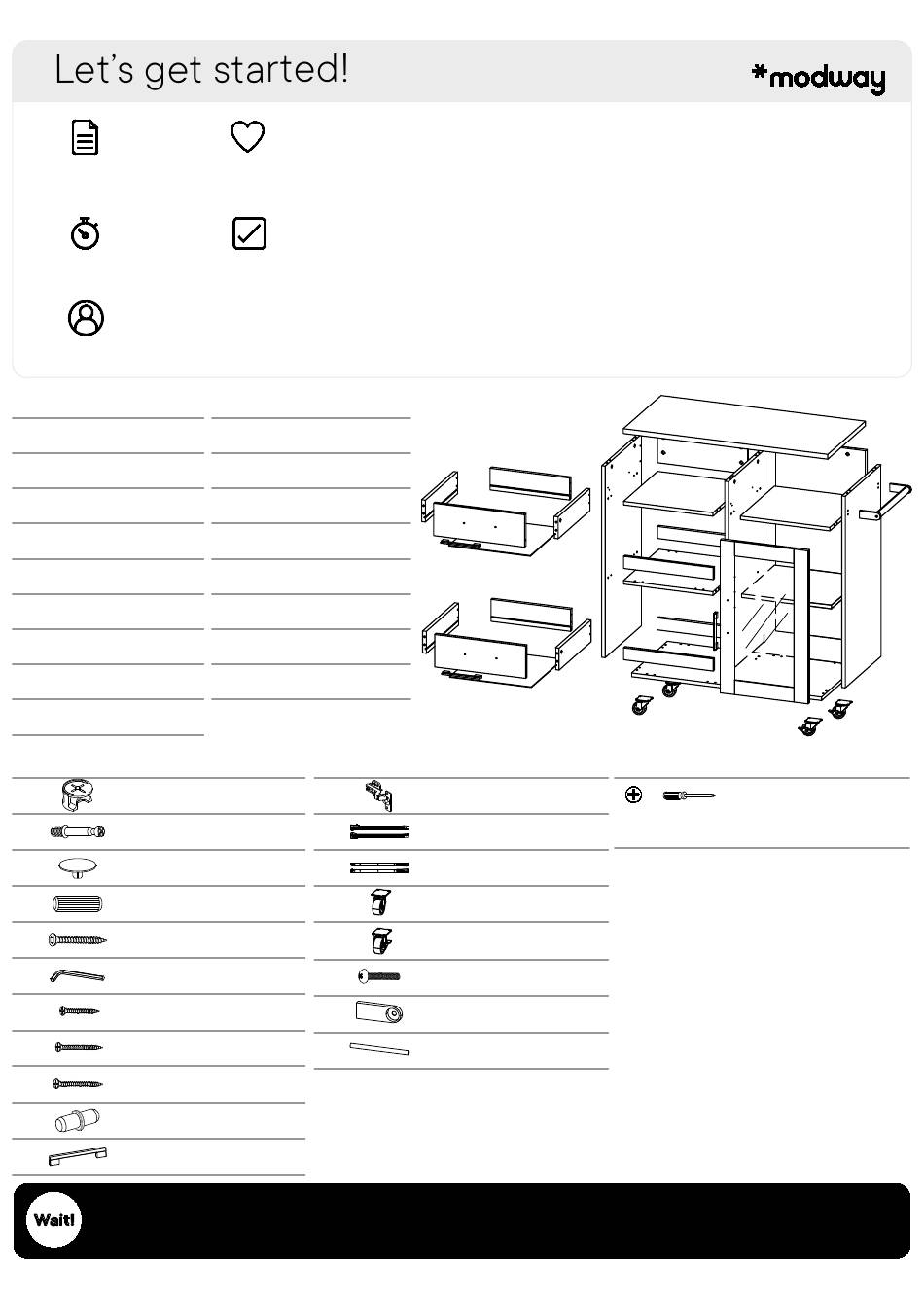

What You Need - modway EEI-6275 Assembly Instructions Manual

Read through all of
the instructions
before starting
Approx. 60 minutes
assembly time
2 people recommended
for assembly
Furniture components:
Top Panel
1 x1
2 Bottom Panel x1
3 Side Panel - L x1
4 Side Panel - R x1
5
Center Panel x1
6 Middle Panel - 1 x2
7 Middle Panel - 2 x1
Middle Support
8 x4
9 Back Panel - L x1
Provided hardware:
A1 Cam Lock
A2 Minifix Screw
Plastic Cap
A3
B Wood Dowel M8 x 30mm
CSK Cap Wood Screw
C
M6 x 50mm
Allen Key M4
D
E C.B Screw M3.5 x 16mm
F C.B Screw M4 x 25mm
G C.B Screw M4 x 38mm
Metal Shelf Support
H
I PVC Handle 00036
Missing parts or hardware? Need assistance?
Contact us before returning your item. We're here to help!
609.256.9000 • cs@modway.com
Care instructions are
listed in the last step
of this manual
Make sure you have all
parts and components
before discarding any
packing materials
10 Back Panel - R x1
11 Shelf Panel x1
12 Drawer Front x2
13 Drawer Back x2
14 Drawer Side - L x2
15 Drawer Side - R x2
16 Drawer Bottom x2
17 Door Panel x1
x32 J
x32 K1
x32 K2
x40 L1
x8
L2
x1
M
x56
N
x6
O
x16
x4
x3
Only use hand tools to assemble this item. Do not use power tools.
Do not tighten bolts or screws completely until all hardware is lined up
and inserted into the holes.
Do not over-tighten screws and bolts to avoid stripping the hardware
or cracking the item.
Assemble your item on a flat, carpeted area, with plenty of space to work.
This will prevent damage and scratches to your floors or the item while
you're assembling the product.
Keep all components and packaging out of reach of children or animals
to avoid risk of choking or suffocation.
14
13
15
12
16
I
14
13
15
12
16
I
Soft Closing 7/8 Hinges
x2
12" Drawer Slide - L/R
x4
12" Drawer Slide - L/R
x4
Nylon Castor
x2
Nylon Castor With Stopper
x2
Truss Head Screw
x4
M5 x 25mm
Bracket x2
Round Pipe
x1
1
9
6
5
3
8
8
7
I
8
8
17
L1
L1

What You Need:

Phillips Head Screwdriver*
*Not included
N
10
6
O
N
4
11
2
L2
L2
PAGE 2 OF 17
