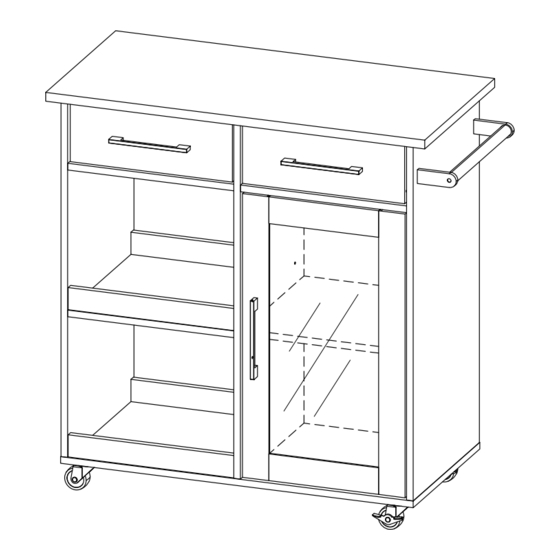

- Page 1 EEI-6275 V1.15.01.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: What You Need
C.B Screw M3.5 x 16mm Bracket C.B Screw M4 x 25mm Round Pipe C.B Screw M4 x 38mm Metal Shelf Support PVC Handle 00036 Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE... - Page 3 Minifix Screw Top Panel Cam Lock Minifix Screw Wood Dowel M8 x 30mm Side Panel - L Side Panel - R Center Panel PAGE...
- Page 4 Cam Lock Wood Dowel M8 x 30mm Middle Panel - 1 Middle Panel - 2 Cam Lock Wood Dowel M8 x 30mm Middle Support Back Panel - L Back Panel - R PAGE...
- Page 5 Cam Lock Minifix Screw Wood Dowel M8 x 30mm Drawer Front Drawer Side - L Drawer Side - R C.B Screw M3.5 x 16mm 12" Drawer Slide - L 12" Drawer Slide - R K1(R) K1(L) K1(L) Side Panel - L Side Panel - R Center Panel 12"...
- Page 6 C.B Screw M3.5 x 16mm 12" Drawer Slide - R K1(R) Center Panel 12" Drawer Slide - R Second hole from the edge. Second hole from the edge and top first hole from the edge. Big hole at the center. C.B Screw M4 x 38mm Middle Panel - 2 Middle Support...
- Page 7 C.B Screw M4 x 38mm Bottom Panel Middle Support Plastic Cap Side Panel - L Middle Panel - 1 Middle Panel - 2 Back Panel - L PAGE...
- Page 8 Plastic Cap Center Panel Plastic Cap Middle Panel - 1 Back Panel - R PAGE...
- Page 9 Plastic Cap Side Panel - R Plastic Cap Top Panel PAGE...
- Page 10 CSK Cap Wood Screw M6 x 50mm Bottom Panel C.B Screw M3.5 x 16mm Nylon Caster Nylon Caster Stopper PAGE...
- Page 11 Truss Head Screw M5 x 25mm Bracket Round Pipe Metal Shelf Support PAGE...
- Page 12 Shelf Panel C.B Screw M4 x 25mm PVC Handle 00036 Drawer Front PAGE...
- Page 13 C.B Screw M4 x 38mm Drawer Back Drawer Side - L Drawer Side - R Drawer Bottom PAGE...
- Page 14 Plastic Cap Drawer Front C.B Screw M3.5 x 16mm 12" Drawer Slide - L K2(L) K2(R) 12" Drawer Slide - R K2(L) K2(R) 12" Drawer Slide - L 12" Drawer Slide - R Third hole from the edge. Hole at the center. Third hole from the edge.
- Page 15 Put all the drawer in place along the drawer slides. C.B Screw M3.5 x 16mm C.B Screw M4 x 25mm PVC Handle 00036 Soft Closing 7/8 Hinges Door Panel PAGE...
- Page 16 C.B Screw M3.5 x 16mm Fix hardware J into panel (4) by using hardware E. (Repeat 4 times for each hardware.) Tighten or loosen the screw to adjust position of panel (17). (Do only when needed.) STEP 1 STEP 3 STEP 2 STEP 4 PAGE...
-
Page 17: Connect With Us
Not contract grade. Clean using a non-abrasive cloth and a mild cleaner. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE...
