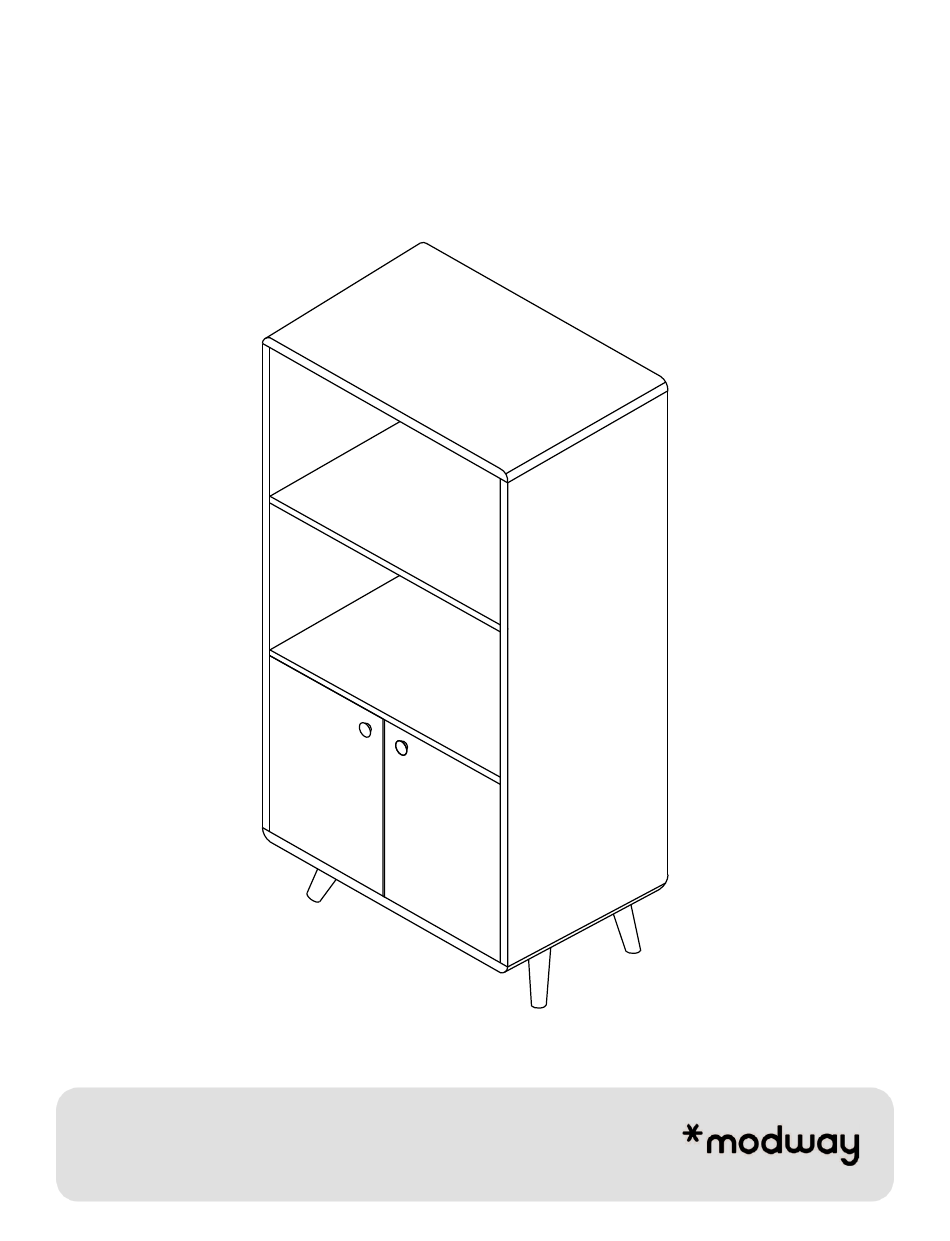

- Page 1 A S S E M B L Y I N S T R U C T I O N S EEI-6230 V1. 12.30.22 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com Page 1 of 10...
-
Page 2: Let's Get Started
Ø3.5 x 16mm Support Leg L Plate 2 Holes Plastic Corner Block C/board Screw Ø4 x 32mm Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com Page 2 of 10... - Page 3 Step 1 H AR D W A R E Wooden Dowel Ø6 x 30mm C/board Screw Ø3.5 x 16mm L Plate 2 Holes C O MP O N E N T S Right Side Panel Left Side Panel Fixed Shelf A Fixed Shelf B Step 2 H AR D W A R E...
- Page 4 Step 3 H AR D W A R E Cam Lock Ø15 x 12mm Cam Lock Cap (1042) C O MP O N E N T S Left Side Panel Fixed Shelf A Fixed Shelf B Bottom View Page 4 of 10...
- Page 5 Step 4.1 Step 4 H AR D W A R E Cam Lock Ø15 x 12mm Cam Lock Cap (1042) C O MP O N E N T S Right Side Panel Left Side Panel Back Panel Fixed Shelf A Fixed Shelf B Step 4.2 Bottom View...
- Page 6 Step 5 H AR D W A R E Cam Lock Ø15 x 12mm Cam Lock Cap (1042) C O MP O N E N T S Top Panel Right Side Panel Left Side Panel Step 6 H AR D W A R E Cam Lock Ø15 x 12mm C O MP O N E N T S Right Side Panel...
- Page 7 Step 7 H AR D W A R E Support Leg C/board Screw Ø4 x 32mm C O MP O N E N T S Bottom Panel Arrow at the support leg face 4 side Step 8 H AR D W A R E Support Leg C O MP O N E N T S Remove the plastic...
- Page 8 Step 9 H AR D W A R E MS Screw Ø4 x 20mm Handles Knobs C/board Screw Ø3.5 x 16mm Soft Closing Hinges 7/8 C O M P O N E N T S Doors Step 10 Step 10.1 Step 10.2 H AR D W A R E C/board Screw Ø3.5 x 16mm...
- Page 9 Step 11 H AR D W A R E Plastic Corner Block C/board Screw Ø4 x 19mm C O MP O N E N T S Back Panel Page 9 of 10...
-
Page 10: Connect With Us
Never use harsh chemicals, as they could damage the finish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. Max : 66lbs /30kg Page 10 of 10... - Page 11 4. Lace the end of the restraint strap (B) through the larger hole in each mounting bracket. Bring both ends together and slide the flat end through the locking end and draw it through until all slack is removed. 5. Confirm that the strap (B) is securely laced and locked. Customer Service 908-368-1025 | www.modway.com...
