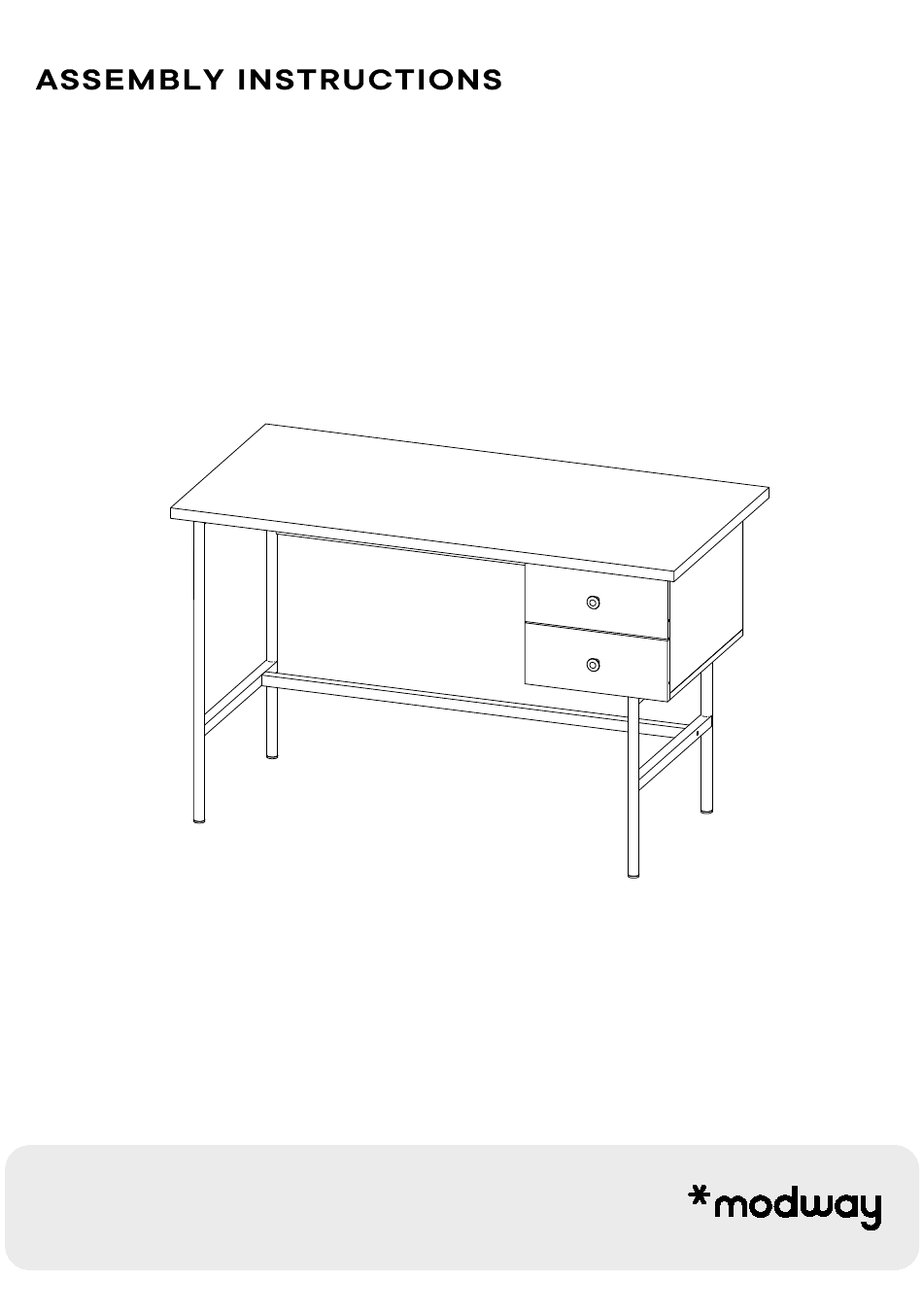

- Page 1 EEI-6284 V1.15.01.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: What You Need
C.B Screw M3.5 x 16mm C.B Screw M4 x 38mm C.B Screw M4 x 25mm Handle 209 Knob JCBC Screw M6 x 35mm Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE... - Page 3 Cam Lock Minifix Screw Wood Dowel M8 x 30mm Top Panel Middle Panel Cam Lock Wood Dowel M8 x 30mm Side Panel - L Side Panel - R Back Panel PAGE...
- Page 4 C.B Screw M3.5 x 16mm 12" Drawer Slide - L 12" Drawer Slide - R Side Panel - L M1(R) Side Panel - R M1(L) 12" Drawer Slide - L 12" Drawer Slide - R First hole from the edge and top second hole from the edge.
- Page 5 CSK Cap Wood Screw M6 x 50mm Allen Key M4 Bottom Panel Allen Key M4 JCBC Screw M6 x 50mm JCBC Screw M6 x 60mm JRN Nut Metal Side - L Metal Side - R Metal Support PAGE...
- Page 6 Allen Key M4 JCBC Screw M6 x 35mm Metal Side - L Metal Side - R Cam Lock Minifix Screw Drawer Front Drawer Side - L Drawer Side - R PAGE...
- Page 7 C.B Screw M4 x 38mm Drawer Back Drawer Side - L Drawer Side - R Drawer Bottom PAGE...
- Page 8 Plastic Cap Drawer Front C.B Screw M3.5 x 16mm M2 (R) M2 (L) 12" Drawer Slide - L 12" Drawer Slide - R 12" Drawer Slide - L 12" Drawer Slide - R Hole at the center. Third hole from the edge. Third hole from the edge.
- Page 9 C.B Screw M4 x 25mm Handle 209 Knob Put all the drawer in place along the drawer slides. PAGE...
-
Page 10: Connect With Us
Not contract grade. Clean using a non-abrasive cloth and a mild cleaner. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE...
