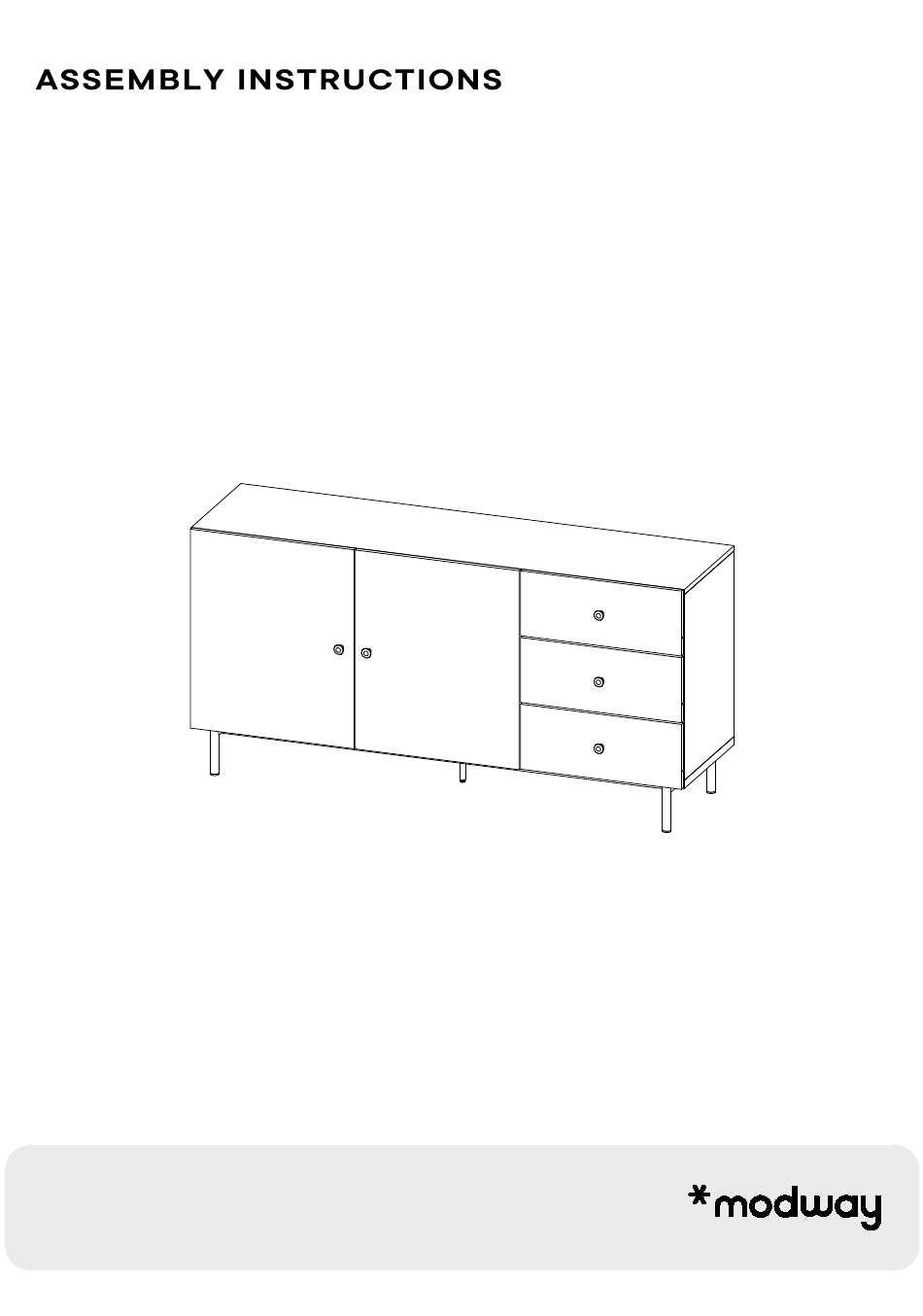

- Page 1 EEI-6283 V1.15.01.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: What You Need
C.B Screw M3.5 x 16mm Metal Leg C.B Screw M4 x 25mm Anti - Tipping Kit C.B Screw M4 x 38mm Handle 209 Knob Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE... - Page 3 Cam Lock Minifix Screw Top Panel Body Support Cam Lock Wood Dowel M8 x 30mm Side Panel - L Side Panel - R PAGE...
- Page 4 Cam Lock Wood Dowel M8 x 30mm Center Panel - L Center Panel - R C.B Screw M3.5 x 16mm 12" Drawer Slide - L 12" Drawer Slide - R Side Panel - R Center Panel - R N1(L) N1(R) Screwdriver First hole from the edge and top second hole from the edge.
- Page 5 Plastic Cap Allen Key M4 Top Panel Side Panel - L Side Panel - R Center Panel - L Center Panel - R Body Support Back Panel PAGE...
- Page 6 CSK Cap Wood Screw M6 x 60mm Allen Key M4 Bottom Panel Allen Key M4 JCBC Screw M6 x 50mm Metal Leg Metal Leg Support PAGE...
- Page 7 Allen Key M4 JCBC Screw M6 x 35mm Metal Leg Metal Leg Support C.B Screw M3.5 x 16mm Metal Leg Screwdriver Please note that hardware O has a Plastic adjuster at the bottom to unscrew and adjust the height of hardware O if necessary.
- Page 8 Stud Stud Screw Screwdriver Metal Shelf Support PAGE...
- Page 9 Shelf Panel C.B Screw M3.5 x 16mm C.B Screw M4 x 25mm Handle 209 Knob Soft Closing 5/8 Hinges Door Panel Screwdriver PAGE...
- Page 10 C.B Screw M3.5 x 16mm Screwdriver Fix hardware M into panel (3) and (6) by using hardware E. (Repeat 4 times for each hardware.) Tighten or loosen the screw to adjust position of panel (16). STEP 1 (Do only when needed.) STEP 3 STEP 2 STEP 4...
- Page 11 C.B Screw M4 x 38mm Drawer Back Drawer Side - L Drawer Side - R Screwdriver Drawer Bottom PAGE...
- Page 12 Plastic Cap Drawer Front Drawer Support Screwdriver C.B Screw M3.5 x 16mm N2 (L) 12" Drawer Slide - L N2 (R) 12" Drawer Slide - R Screwdriver Third hole from the edge. Hole at the center. Third hole from the edge. PAGE...
- Page 13 C.B Screw M4 x 25mm Handle 209 Knob Screwdriver Put all the drawer in place along the drawer slides. PAGE...
-
Page 14: Connect With Us
Not contract grade. Clean using a non-abrasive cloth and a mild cleaner. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE... -
Page 15: Installation Instruction
TIPPING RESTRAINTS KIT INSTALLATION GUIDANCE Different wall materials require unique wall fasteners. The wall plugs (P5 are designed for fixing to concrete walls only. Please consult your local hardware store to ensure you are using the correct hardware for your wall type P - Anti Tipping Kits x 1 5) Nylon Wall Plug x 1 1) V Bracket x 2...
