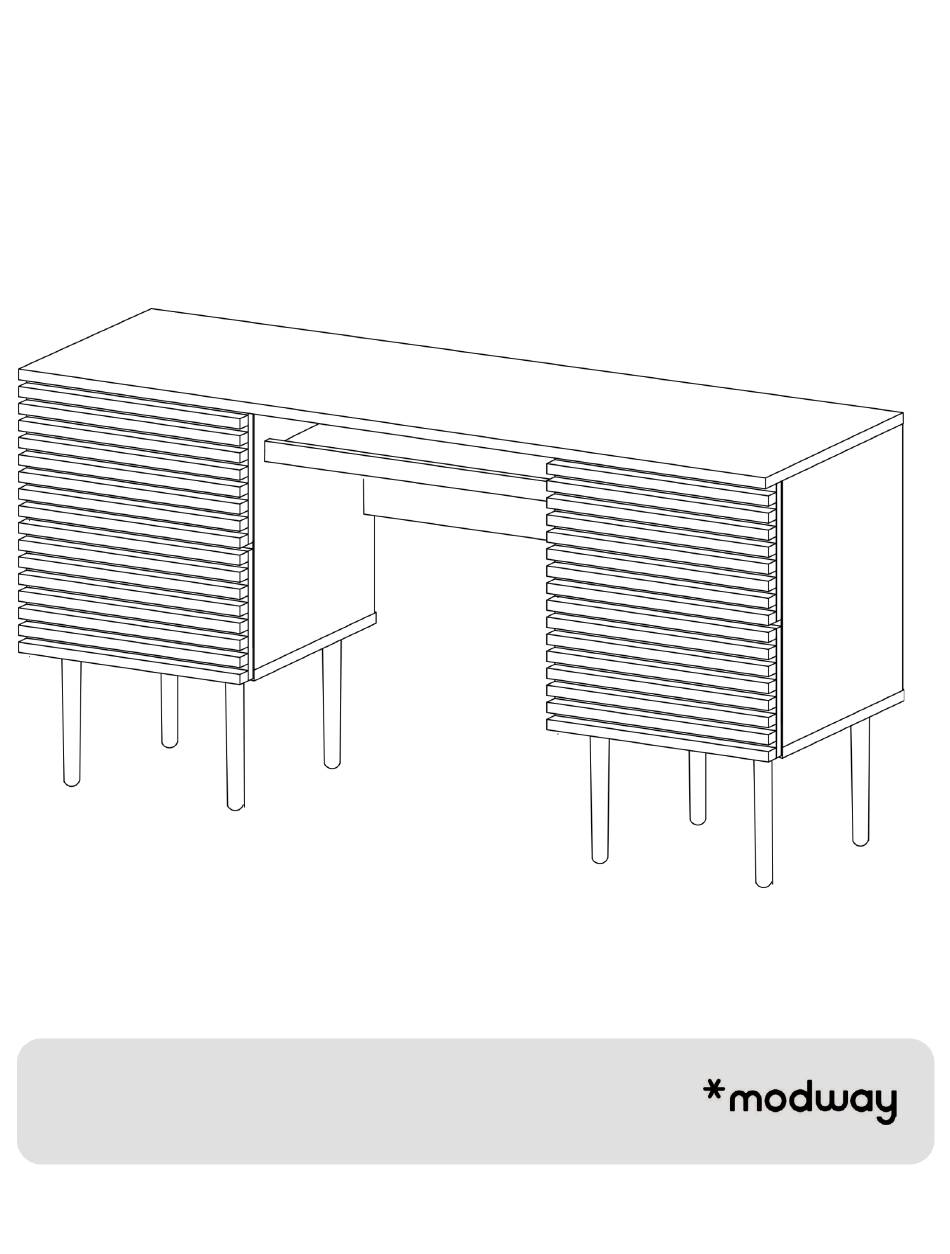

- Page 1 A S S E M B L Y I N S T R U C T I O N S EEI-6254 V1. 13.01.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: Let's Get Started
C/board Runner Left C/board Screw Ø4 x 38mm C/board Runner Right Allen Key Flat Washer Drawer Runner Left Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com Page 2 of 12... - Page 3 Step 1 H A R D W A R E Wooden Dowel Ø8 x 30mm C O M P O N E N T S Right Side Panel Middle Right Panel Middle Left Panel Left Side Panel Middle Back Panel Front Skirt Body Support A Body Support B...
- Page 4 Step 3 H A R D W A R E Floor Glide-B321 C/board Screw Ø3.5 x 16mm x72 C/board Runner Left C/board Runner Right Plate Nut M8 C O M P O N E N T S Right Side Panel Middle Right Panel Middle Left Panel Left Side Panel...
- Page 5 Step 4 H A R D W A R E Titus 9499 Cam Ø15 x 12mm C O M P O N E N T S Right Side Panel Middle Right Panel Middle Left Panel Left Side Panel Body Support A Body Support B Step 5 C O M P O N E N T S...
- Page 6 Step 6 Step 6.1 Step 6.2 Bottom View H A R D W A R E JCBCW M6 x 50mm Allen Key C O M P O N E N T S Right Side Panel Middle Right Panel Middle Left Panel Left Side Panel Bottom Panel Step 7...
- Page 7 Step 8 H A R D W A R E Titus 9499 Cam Ø15 x 12mm Cam Lock Cap (1042) C O M P O N E N T S Middle Back Panel Step 9 H A R D W A R E JCBC M6 x 30mm Allen Key Flat Washer...
- Page 8 Step 10 H A R D W A R E Wooden Dowel Ø6 x 30mm C O M P O N E N T S Drawer Back Drawer Right Drawer Left Step 11 H A R D W A R E Cam Bolt- Ø6 x 32mm C O M P O N E N T S Drawer Head...
- Page 9 Step 12 H A R D W A R E Titus 5575 Cam Ø15 x 9.9mm x8 C O M P O N E N T S Drawer Right Drawer Left Drawer Head Step 13 STEP 13.1 STEP 13.2 H A R D W A R E C/board Screw Ø4 x 38mm C O M P O N E N T S Drawer Base...
- Page 10 Step 14 H A R D W A R E C/board Screw Ø3.5 x 16mm x30 Drawer Runner Left Drawer Runner Right C O M P O N E N T S Keyboard Drawer Base Step 15 H A R D W A R E Titus 9499 Cam Ø15 x 12mm C O M P O N E N T S Front Skirt...
- Page 11 Step 16 Page 11 of 12...
-
Page 12: Connect With Us
Max : 66lbs / 30kg CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. Max : 22lbs / 10kg Max : 22lbs / 10kg Page 12 of 12...
